South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension:
2150*860*1560mm
Alternator:
Leateck/Stamford
Controller:
Smartgen/Deep Sea
Insulation Grade:
H
Protection Grade:
IP21-23
Start System:
Electric Start
Type:
Micro-Computer Control Automatic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description
50hz@1500rpm or 60HZ@1800rpm three phase or single phase all are available Standard voltage from127V to 400V Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers. Power range from 30kva to 2500kva Aternator LEATECK standard. Panel type digital control panel include DEEPSEA&COMAP&SMARTGEN controler, etc. Circuit breaker CHIT standard and another brand such as ABB&SIEMENS&SCHNEIDER eclectic etc.

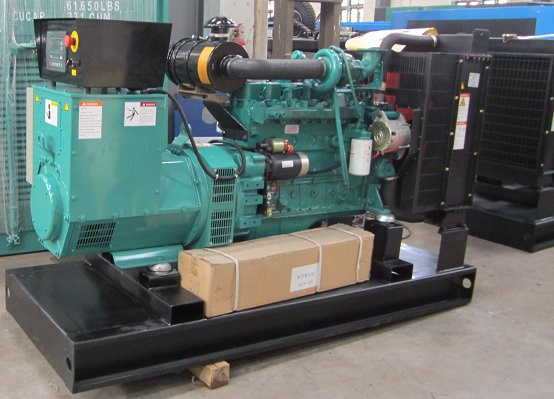

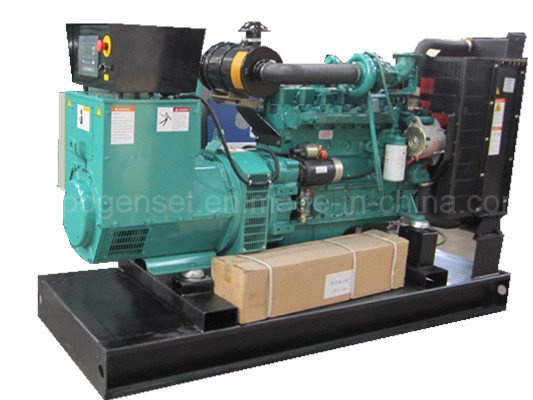

Model No.
STANDBY POWER
PRIME POWER
ENGINE
ALTERNATOR
CONTROLLER
KVA
KW
KVA
KW
OCL-130
130
104
120
96
6BTA5.9-G2
LTG274E1
6110
230/400VAC,50Hz,0.8PF (lag),Three phase four wires
Generator set specifications
Governor Class
ISO8528 G3
Potential Drop
1%
Steady Voltage Regulation
1%
Frequency Drop
Synchronous(0%)
Steady-state Frequency
0.25%
R.R.I.Suppression
BS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)
220(26.6)
Starting Battery Capacity ,A/hrhhr
80*2
Total Coolant Capacity ,L
29
Fuel Capacity (base tank),L
N/A
Engine Data
Model
6BTA5.9-G2
Type
In-line 6 Cylinder,4 Cycle
Displacement ,L
5.9
Compression Ration
17.0:1
Aspiration
Turbo, Water / Air Cooling
Fuel System
A type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)
102*120
Rated Speed ,rpm
1500
Governor Type
Electronic
Starting Voltage
24V ,Negative ground
Battery Charging System
24V 35A
Lubricant Capacity ,L
16.3
Coolant Capacity, L
29
Alternator Data
Protection Class
IP21
Insulation Class
Class H
Temperature Rise in Standard
125 ºC(When Ambient Temp.is 40 ºC)
Excitation Type
Brushless & Self-excited
Waveform Distortion
No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%
Exhaust System
Exhaust air flow
17.6m3/min
Exhaust Temperature
570ºC
Max Back Pressure
10kPa
Air Intake System
Max Intake Restriction
6.35kPa
Burning Capacity
8.2m3/min
Air Flow
190m3/min
Lubricant System
Total Lubricant Capacity
16.3L
Lubricant Consumption
≤4g/kwh
Engine Oil Tank Capacity
14.2L
Oil Pressure at Rated Speed
345kPa
We have been an outstanding manufacturer of Diesel Generator Sets in domestic. We have gathered many years researching experience of Mobile Lighting Tower, and became a technology leader of this kind products in the world. We invested to develop Vehicle Power Station and Gas Generator Sets in recent years, to achieve good reputation with excellent quality and performance.
Our service quality assurance
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service.
