Product Description
Biomassis biological materialderived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology. Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.
Main composition of biomass gas: After being gasified, the basis of gas is CO(20%), H2(9%), CH4(12%),CO2(12%), N2(52%), The lower heating value is 5-6 MJ/Nm3. Efficiency of gasification:1 kg dried material can generate 2 Nm3 gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.
Requirements for biomass gas: Within 1m from pressure regulating value of gas intake; Gas temperature<40ºC The ratio of CH4 in natural gas >70%; Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min; H2S≤200mg/Nm3; NH3≤20mg/Nm3; Tar content≤20mg/ Nm3; Moisture content ≤40g/Nm3; Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3 Heat value≥4.2MJ/Nm3
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug. Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current. Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate. Speed regulating system:EGS gas controller of American WOODWARD Company. scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.
SHANDONG LVHUAN POWER EQUIPMENT CO., LTD.
Address: High-Tech Industries Development Zone Jinan City, Shandong,China
Website: www.lvhuandongli.com/en
Parameter of Biomass Gas Generator Set
Model Number (Engine Type)
LHBMG600
Brand Name
LVHUAN
Prime Power/Standby Power
480KW/600KW
Rated Speed
1000/1200RPM
Rated Frequency
50/60Hz
Rated Voltage
400V/230V
Phase
AC 3-Phase, 4 wire
Voltage Stability
≤±2%
Voltage transient
≤±10%
Voltage Stable time
≤1s
Heat consumption
≤11mj/kw.h
Lubricant Consumption
≤1.0g/kw.h
Engine Capacity
71.4L
Cylinder Number
12-V
Cylinder Bore
190mm
Stroke
210mm
Starting System
DC 24V electric motor
Cooling method
water cooler
Lubricant method
Passive and flying lubricant
Isolation class
H
Protection
IP23
Alternator
Siemens
Power Factor
0.8 lagging
Exciting method
brushless
Colour
your choice
Certificates

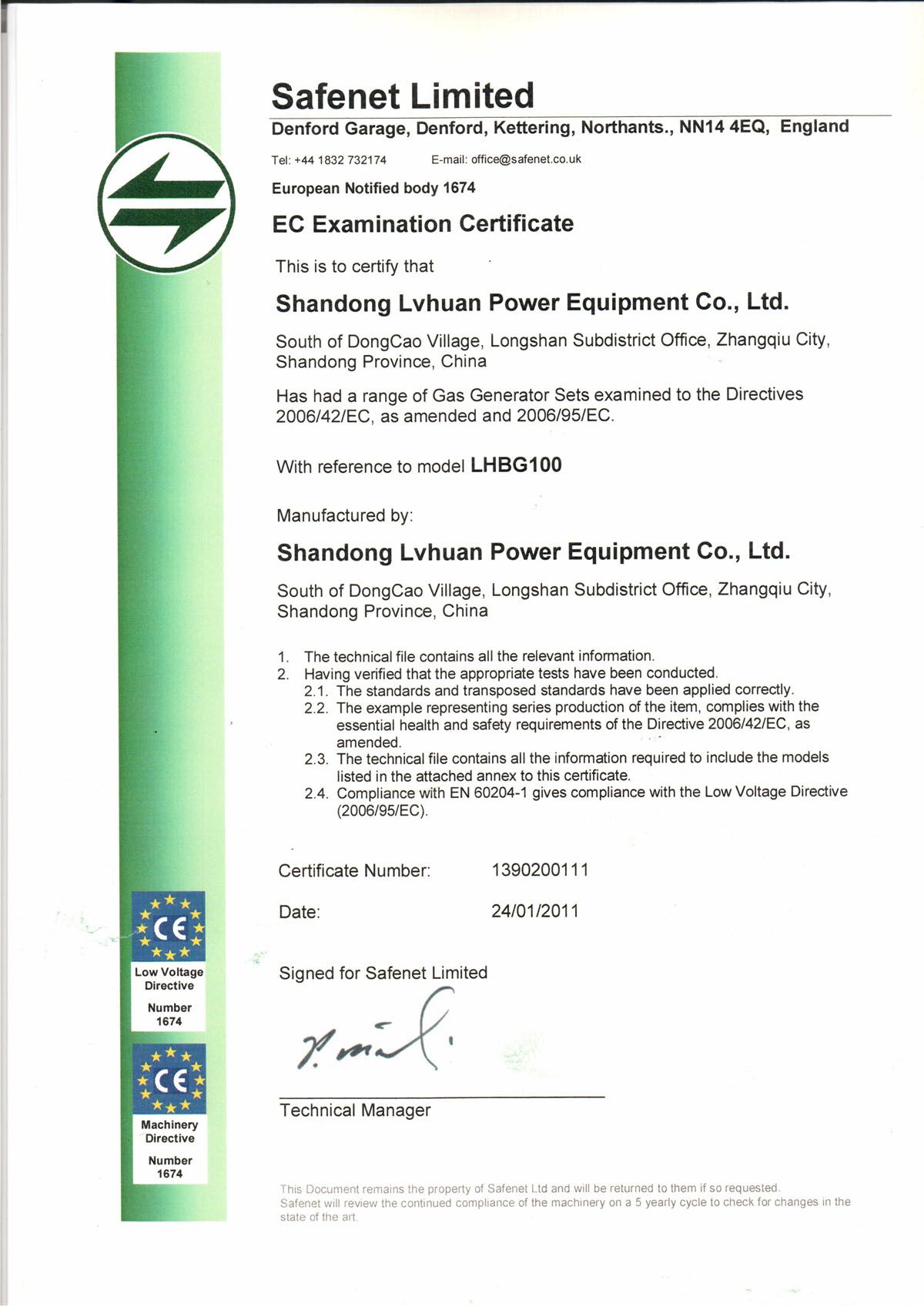

ISO 9001:2008, CE
Warranty
1 year or 1000 running hours which arrives first
Type
Open
Control system
Automatic alarm system
Size
6200x2100x2800mm
Weight
12500kg
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
