Type:
Self-Starting Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Single Phase
Product Description
Diesel Generator 1. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine 2. Ideal for home emergency use or as standby power supply 3. Large fuel tank, ensuring hours of continuous output 4. Advanced direct fuel injection system 5. A variety of specially-designed control panels available for different markets
6. New automatic voltage regulator ensures steady voltage output 7. Low oil pressure alarm system, which can shut down the engine automatically 8. Aviation Technology, Military Quality 9. Electric start system(typeE)ensures rapid starts of the set. 10. Integrated cabinet ensures the set running silently.
KaiAo lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 2000 square meters. We have more than 150 staff members, among which there are around 20 are professional techinicians. Advanced production lines and inspection equipments allow high quality products. We insist on technical promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality products and services.

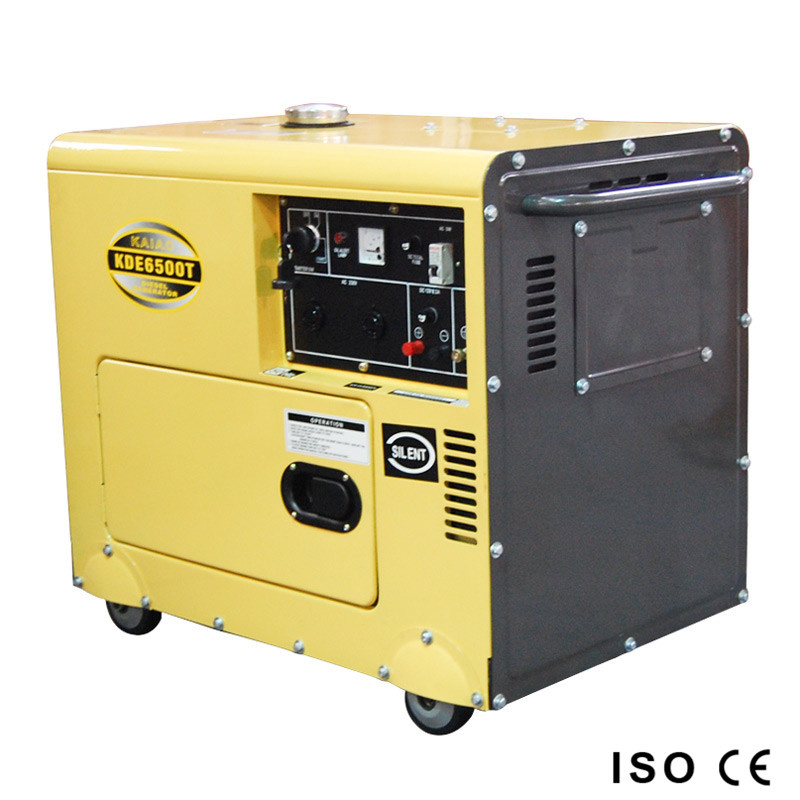

Diesel generator set KDE6500T
Model
KDE6500T
Frequency (Hz)
50
60
Output power (KVA)
4.5
5
Max. Power(KVA)
5
5.5
Voltage (V)
115/230
120/240
Current (A)
39.1/19.6
41.7/20.8
Engine speed (r/min)
3000
3600
Phase
Single
Power factor(cosφ )
1
Excitation system
Self-excited constant voltage
Noise level (7m)
DB (A): 72
Fuel tank capacity (L)
12.5
Structure
Silent
Panel
Ordinary
Outputsocket
Two
DC12V output
Terminal post
Engine Model
KA186FA
Bore*stroke (mm)
86 *72
Displacement (L)
0.418
Power (KW)
5.7/3000
6.3/3600
Fuel consumption rate (g. KW/h)
275.1
281.5
Compression ratio
19
Lubrication system
Spring
Engine starting system
Electric starter
Diesel oil model
Summer: 0#, winter: -10#
Lube oil model
SAE10W-30 (above CD grade)
Lube oil capacity (L)
1.65
Battery capacity(V-AH)
12V-36Ah
Net weight (KG)
170
Dimension(L*W*H)
912× 532× 740
