Engine Brand:
Cummins
Number Of Cylinders:
16
Cylinder Arrangement:
Vertical in-Line
Cycle:
Four Stroke
Prime Power:
825kw/1031kVA
Rated Voltage:
400/230V
Rated Frequency(Hz):
50
Rated Speed:
1500rpm
Dimensions(Mm) (L×w×h):
6250X2560X2830
Net Weight(Kg):
11800
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Three Phase
Product Description

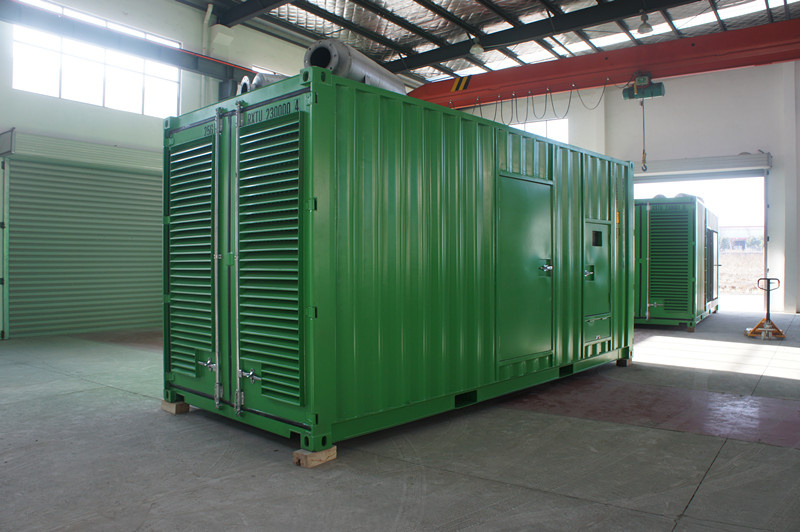

AVESPEED KTA50-G3 slient new cummins 1000kVA diesel generator
² Voltage Available: 50Hz: 380-400-415V/220-230-240V; 60Hz: 220-380-416-440-480V/110-208-220-240V Any special voltage is also available as client's request ² Prime Power: Comply with GB/T2820-97(eqv. ISO8528). Genset can run unlimitedly under certain power Range. One hour 10% over load in every 12 running hours is allowed; ² Standby Power: Standby power is the limit value of maximum output for emergency use. It is off-oil power, Overloading is prohibited
Rated power
825KW/1031KVA
Standby power
917KW/1145KVA
Output voltage
400V
Rated speed (r/min.)
1500
Noise level
80 dB
Power factor
COSΦ=0.8(lagging)
Phase/wires
3 phase 4 wires
Start mode
Electric
Fuel consumption
261L /H @ 100% loaded
Rated currency(amps)
1899
Protection
Low oil-pressure, High water temperature, Over-speed, Over-current.
Brand
Cummins
Model
KTA38-G9
Original:
Manufactured by Chongqing Cummins Engine Co., Ltd
Cylinders
16
Fuel
0# light diesel
Inter-Cooling
water inter-cooling
Overload
110%
Engine Power
1031kw/1145kva
Start mode
DC24V electric start
Cylinders Layout
Vee
Displacement
38 L
Speed-Governing
Electric
Steady Speed Droop
≤1%
Brand
STAMFORD
Model
LVI634F
Protection
IP21
Frequency fluctuation
≤±0.5 %
Voltage distortion
<4%
Power
1000kw/1250kva
Original
Manufactured by Guangzhou Engga Generators Co., Ltd
Rated voltage
400V
Frequency regulation
≤±0.5 %(stable)
Voltage control
AVR
