| Prod Model: |
Toyota 3RZ(495) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
740x590x910 |
| G. W: |
184kgs |
| N. W.: |
129kgs |
| Cylinder: |
Multi-cylinder |
| Fuel: |
Gasoline |
| Cold Style: |
Water-cooled |
| Stroke: |
4 Stroke |
| Type: |
Engine Liner |
| Power: |
Hydraulic |
| Start: |
Kick Start |
Product Description

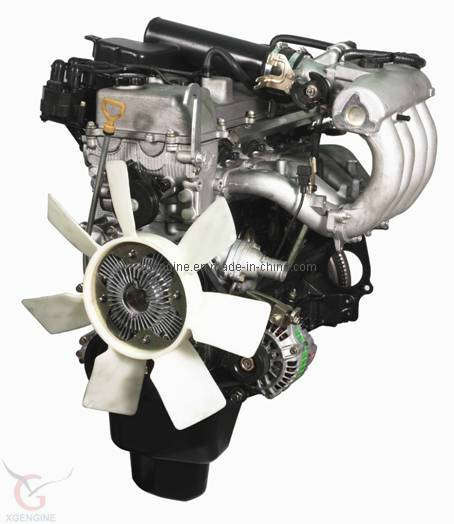

Auto Complete Engine
The 3RZ-FE is a 2.7 L (2693 cc) I4 version built in Japan. Bore is 95 mm and stroke is 95 mm. Output is 150 hp (112 kW) at 4800 RPM with 177 ft@lbf (240 N@m) of torque at 4000 RPM. This engine features twin, chain-driven balance shafts. It has four valves per cylinder and DOHC. Valve adjustment is by shim over bucket.
Applications:
1995-2004 Toyota Tacoma 4x4
The Toyota Tacoma is a compact pickup truck produced and manufactured by the Toyota Motor Corporation since 1995. The second-generation Tacoma was Motor Trend Magazine's Truck of the Year for 2005. The Toyota Tacoma is named after the City of Tacoma, Washington, USA.
Contents [hide]
1 First generation (1995-2004)
2 Second generation (2005-present)
2.1 Safety and structural integrity
2.2 X-Runner Specific
3 Toyota Racing Development
3.1 TRD supercharger
4 Aftermarket
5 American special forces use
6 Sales
7 References
8 External links
1996-2000 Toyota 4Runner
The Toyota 4Runner is a mid-size SUV manufactured by Toyota and sold throughout the world from 1984 to the present. In Japan it was known as the Toyota Hilux Surf. The original 4Runner was a compact SUV and little more than a Toyota pickup truck with a fiberglass shell over the bed, but the model has since undergone significant independent development into a cross between a mid-size and a full-size SUV. All 4Runners have been built at Toyota's Tahara plant in Tahara, Aichi, Japan or at Hino Motors' Hamura, Japan plant, and in Brazil. Its mid-size crossover SUV counterpart is the Kluger/Highlander.
Contents [hide]
1 First generation (1984-1989)
2 Second generation (1989-1995)
2.1 Safety
3 Third generation (1995-2002)
4 Fourth generation (2002-2009)
4.1 Safety
4.2 TRD options
4.3 Model year changes
5 Fifth generation (2009-present)
6 Sales numbers
7 References
8 External links
1994-1998 Toyota T100
The Toyota T100 (not to be confused with RK100) was a full-sized pickup truck introduced by Toyota in late 1992 as a 1993 calendar year vehicle.
Our company is a professional manufacturer of auto engines and engine parts in China, with the mainly products, cylinder heads, long blocks and auto engines. We have passed ISO/TS16949
Engine: 3RZ
Model: 4 stroke
Water-cooling
Cyl in-line
DOHC
Ignition: ECU/Distributor
Cylinder: 4
Bore(mm): 95
Stroke (mm): 95
Combustion Chamber: Pentroof
Cylinder Liner: No
Displacement (L): 2.693
Compression Ratio: 9.5
Dimension (mm): 720X605X830
Rated Power for Gasoline(kw/h/rpm): 110/4800
(147HP)"
Max Torque for Gasoline(N@M/ rpm): 235/4000
Net Weight(kg): 186
|
Engine |
3RZ |
|
Model |
4 stroke |
|
Water-cooling |
|
Cyl in-line |
|
DOHC |
|
Ignition |
ECU/Distributor |
|
Cylinder |
4 |
|
Bore(mm) |
95 |
|
Stroke (mm) |
95 |
|
Combustion Chamber |
Pentroof |
|
Cylinder Liner |
No |
|
Displacement (L) |
2.693 |
|
Compression Ratio |
9.5 |
|
Dimension (mm) |
720X605X830 |
|
Rated Power for Gasoline(kw/h/rpm) |
110/4800
(147HP) |
|
Max Torque for Gasoline(N· M/ rpm) |
235/4000 |
|
Net Weight(kg) |
186 |
Our company is a professional manufacturer of auto engines and engine parts in China, with the mainly products, cylinder heads, long blocks and auto engines. We have passed ISO/TS16949: 2002.
We cooperated with other company, produced B3\G4EA\G4ED engines for KIA PRIDE and KIA RIO as OEM plant. Under the ability of OEM plant for international brand, it will be reliable quality of our products.
We have good-part-supplier system and quality guarantee to meet the requirements of the customers.
We would like to provide our best management, best quality and service to our customers.
