Engine:
Mtu 16V165
Alternator:
Mecc Altea Eco42-2L/4
Controller:
Deif AGC222
Type:
Conteinerized
Prime Power:
1,000kw (1,250kVA)
Rated Voltage:
230/400V
Rated Current:
1,804A
Rated Frequency:
50 or 60Hz
Power Factor:
0.8
Gas Consumption:
1.18nm3/Kw.H
Gas Source:
Coalbed Gas
Certification:
SGS

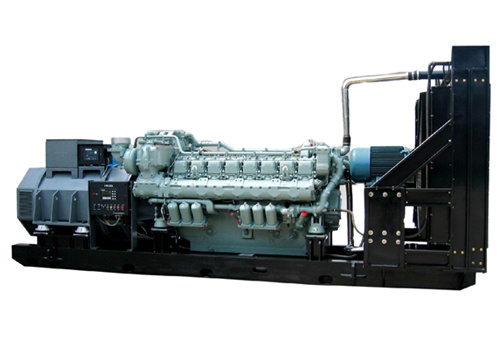

Product Description
Main Specification & Configuration
Prime Power
1,000Kw (1,250KVA)
Engine
MTU 16V165
Alternator
Mecc Altea ECO42-2L/4
Controller
DEIF AGC222
Recommended Operation Conditions
Gas CH4 Content ≥10%
Gas Pressure ≥3KPa
Calorific Value ≥ 3.5MJ/M3
Gas H2S Content ≤20mg/M³
Gas Total Sulphur ≤200mg/M³
Altitude ≤ 4,000m
-25ºC≤Ambient temperature ≤ +50ºC
Advantage &Feature
Reliable MTU engine, Mecc Altea alternator and DEIF controller.
Advanced lean burn technology.
Prompt dynamic response similar to diesel genset.
Excellent power generation efficiency.
Widely gas pressure adaptability.
Humanized manual, semi-auto and full-auto operation model.
Detailed Specification & Configuration
Model
AMC1000GFJ4-RM
Prime Power
1,000Kw (1,250KVA)
Rated Voltage
230/400V
Rated Current
1,804A
Rated Frequency
50 or 60Hz
Power Factor
0.8
Gas Consumption
1.18Nm³/Kw·h
Operating Weight
13,500Kg
Overall Size(L x W X H)
6,058 × 2,438 × 2,591mm
Engine
Brand
MTU
Model
16V165
Type
16-cylinder, 4-stroke, turbocharged
Displacement
63.29L
Compression Ratio
11
Ignition
Electric control, independent ignition
Fuel Control
Lean burn, closed-loop control
Speed Governing
Electric control
Rated Speed
1500rpm
Conversion Efficiency
41%
Alternator
Brand
Mecc Altea
Model
ECO42-2L/4
Excitation Type
Brushless with AVR
Connection Type
3-Phase, 4-Line
Conversion Efficiency
95%
Controller
Brand
DEIF
Model
AGC222
Type
Manual control, semi-auto control or full-auto control.
Others
Pedestal, Radiator, Air filter, Muffler, Battery & Gas Pressure Reducer are included.
Soundproof, Engine oil, Coolant and Output Cable are not included
Remark: Specification subject to change without prior notice.
AMICO GAS POWER Co., Ltd. is a gas power professor in gas engine R&D, electronic control system integrating, gas genset & power unit manufacturing, gas technology training and after-sale service supplying.
AMICO is located in No. 203, North Gangtong 2ND Road, Chengdu Modern Industrial Park(North), ChengDu City, Sichuan Province, P. R. China and owns 20, 000 square meters R&D and production base. AMICO had participated in drafting & reviewing the China national standard for gas product and undertaken the China "863" project for natural gas engine R&D because it own professional R&D team and advanced automatic test system. In addition, AMICO has passed ISO9001: 2008 Quality Management System authentication and awarded with the honorary title of high-tech enterprise in Sichuan province.
AMICO serial product are independently developed and adopt with lean-burn & electronic control technology. AMICO serial product ranges from 30Kw to 2000kw and widely used in gas field, oilfield, coal mine, refuse landfill and farm for power generation & supply. Especially AMICO is the sole qualified domestic supplier of 750Kw & 1000Kw gas genset for electric drilling platform in China.
AMICO adheres to principles of customer interest first and strenuously promote the cooperation with customers & partners to achieve mutual benefit. At present, AMICO own dozens of sales and service centers in Asia, Africa and South America and has established solid cooperative relationship with PetroChina, Sinopec, CNOOC, POVSA, SHELL and other well-known domestic and foreign oil companies.
