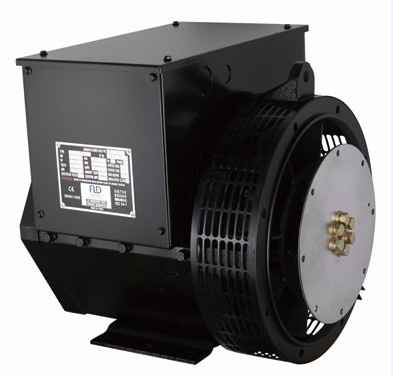

| Prod Model: |
FLD 162 SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
3000 Rpm / 3600 Rpm |
| Frequency: |
50Hz / 60Hz |
| Rated Power: |
6.7kw - 25kw |
| Rated Capacity: |
8.4kVA - 31.3 kVA |
| Voltage--1 Phase: |
170V - 454V |
| Voltage--3 Phase: |
110V - 240V 230V- 460V |
| Power Factor: |
0.8 / 1.0 |
| Insulation Class: |
H |
| Ingress Protection: |
IP22 / IP23 |
| AVR: |
Sx460,Sx440,Mx341,As440,Sx440t,Mx321 |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Three Phase / Single Phase |
Product Description
1. AVR control
2. IP22, Insulation Class H
3.2/3 pitch winding. 100% copper wire and 100%output.
4. Single or double bearing option
5. ISO9001, CE certificate, SGS.
6.100%copper, 100%output
7. Warranty 12 months
Jiangsu Farrand Generator Technology Co., Ltd is a professional manufacturer of self-excited synchronous generator integrating researching, designing, producing, selling all by ourselves. We only produce FLD series generator with power between 5KW~1000KW, frequency 50Hz, 60Hz, rotating speed 1500 rpm, 1800rpm, 3000rpm, 3600rpm, voltage110V~690V, all interface according to international standard, matching all generators in the world. Such as Cummins, deutz, MTU, perkins, Volvo.
There are more than 200 staff collecting dozens of top intra-industry technical experts who make us strong research and manufacturing ability. We carry out high standard technical regulation, techniques, strict quality inspection and mature quality guarantee system in order to manufacture world-class high quality motors.
We adopt strict and scientific enterprise management and aim at higher, faster and newer in a leapfrog development to provide high quality products and service for customers at home and aboard in order to lead the competitors and grow to be famous modern enterprise, Sincerely wish to cooperate with friend all over the world.
