North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:T Jiangsu China:
Brand Name:T Lingyu
Output Type:T AC Three Phase:
Speed:T 1500/1800/3000/3600rpm
Frequency:T 50/60Hz:
Rated Power:T 80kVA/64kw
Rated Voltage:T 110~570V:
Rated Current:T AMPS
Payment Terms:T T/T L/C Credit:
Fan:T Aluminum Fan
Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Single Phase
Product Description

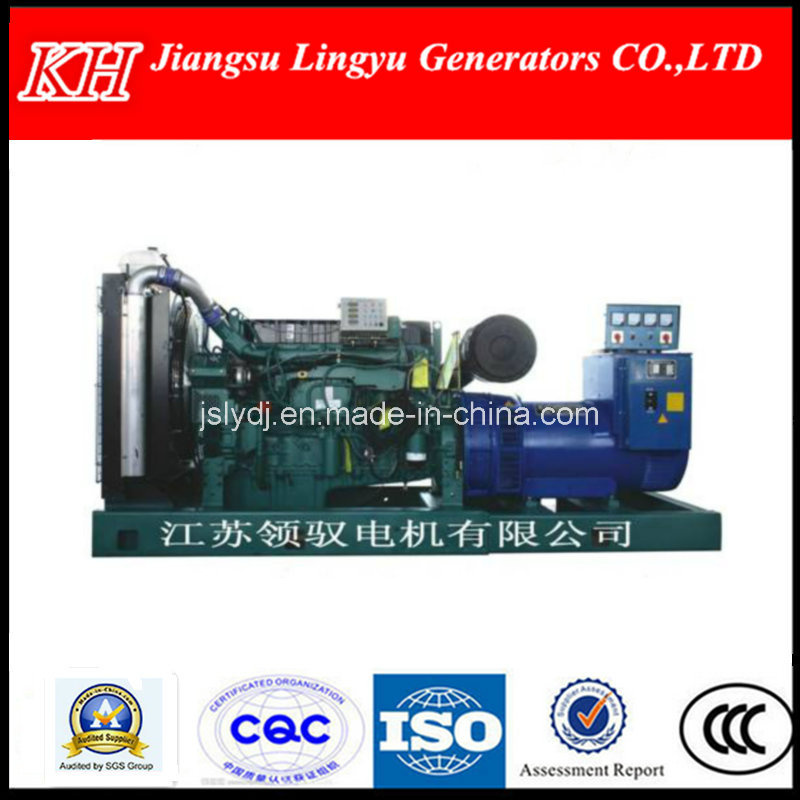

70KW 87.5KVA Doosan Generating Sets Company Information Jiangsu Lingyu brushless generator Co., Ltd. is a lending manufacture of diesel generator and generator sets in China. Established in 2008, located in Jiangdu Chengbei Industrial Zone, Yangzhou City,Jiangsu province, China with more than 86200 square meters workshop and the total covers an area of 101280 square meters. Standard Configuration of Diesel Generator Set Powered by Doosan Engine: 1) Doosan engine 2)Lingyu alternator(Marathon, Mecc Alte, Wattek brand for option) 3) Deepsea DSE6020 control panel 4) Chint circuit breaker 5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models) 6) Anti-Vibration Mounted System 7) Battery, battery charger and battery isolator switch 8) Industrial silencer and flexible exhaust hose
Manufacturer
Doosan Heavy Industries & Construction
Model
D1146
Continuous power
70KW
Prime Power
78KW
Standby Power
82KW
Engine Type
V-type 4 cycle, water cooled, turbo charged & intercooled
Combustion type
Direct injection
Cylinder type
Replaceable wet liner
Number of cylinder
12
Bore x stroke
126 x 155 mm
Displacement
21.927 lit
Compression rati
15:1
Injection timing
16°BTDC
Rotation
Counter clockwise viewed from flywheel
Fly wheel housing
SAE NO.1
Fly wheel
Clutch No.14
Manufacturer / Model
JIANGSU LINGYU GENERATOR CO.,LTD
Model
KHI70-14
Output power
70KW
AVR model
R250
Number of phase
3
Power factor (Cos Phi)
0.8
Altitude
≤ 1000 m
Overspeed
2250RPM
Number of Pole
4
Exciter type
Shun
Insulation class
H
Voltage regulation
±0.5%
Sustained short circuit current
300% (3 IN) : 10s
Total harmonics (TGH/THC)
< 4 %
Wave form : NEMA = TIF
< 50
Wave form : I.E.C. = THF
< 2%
Bearing
single
Coupling
Direct
Our Diesel Generator Set Production Range is as follows:
l Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA 2. Deutz (Germany) 20KVA - 150KVA 3. Perkins (UK) 8KVA - 2000KVA 4. Lovol (China) 20KVA - 150KVA 5. Yangdong (China) 8KVA - 40KVA 6. Weichai (China) 8KVA - 150KVA 7. Shanghai Engine 8. Yuchai Engine To know more details, please feel free to contact us by the following way: FAX:0514-86827818 TEL:0514-86826088 MOBILE:+86-15052559798
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
