Eigine Model:
2V86f
Engine Power:
20HP
Generator Output:
8.5kw
Starting System:
Electric Start
Frequency:
50Hz
Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Single Phase
Product Description

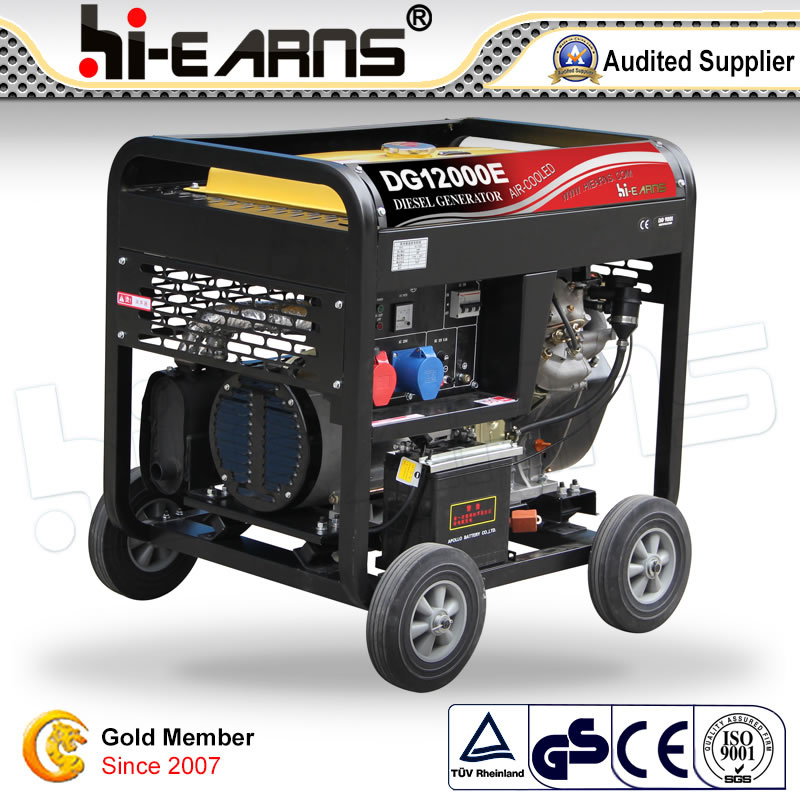

8.5kw Diesel Generator Set/ Portable Home Use Generator (DG12000E)
*Electric starter ensures easy starting.
*With big wheels easy to move.
*Two cylinder 2V86 ensure a big output 8.5KW.
*Low oil pressure alert system shuts down the engine automatically.
*Auto depression unit ensures quick starting.
*Any more details just contact me, We're happy to give you more details asap.

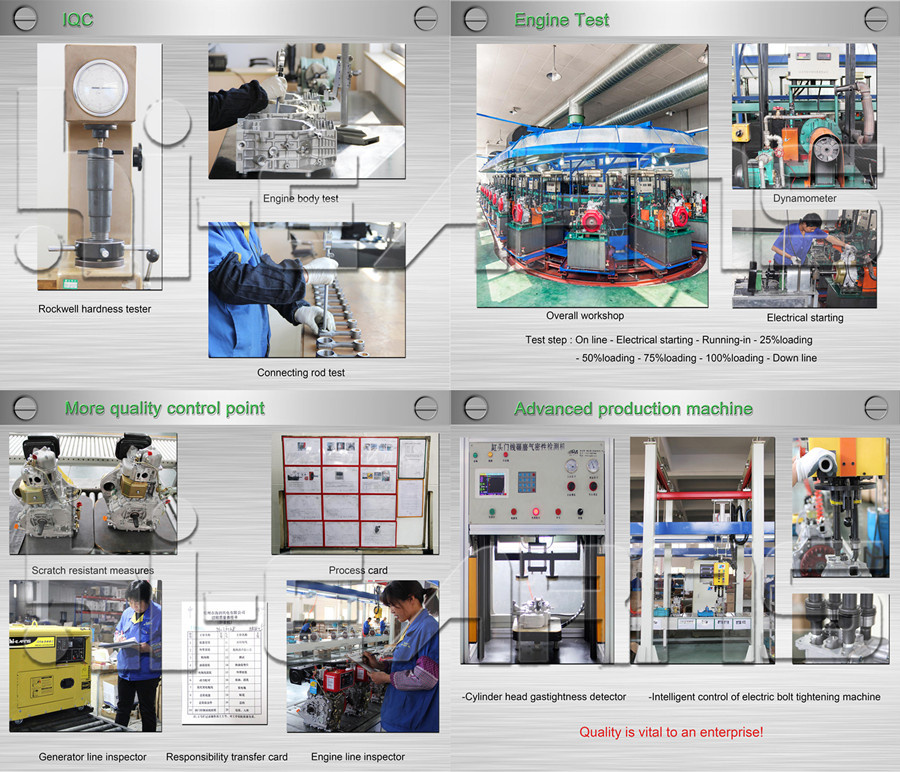

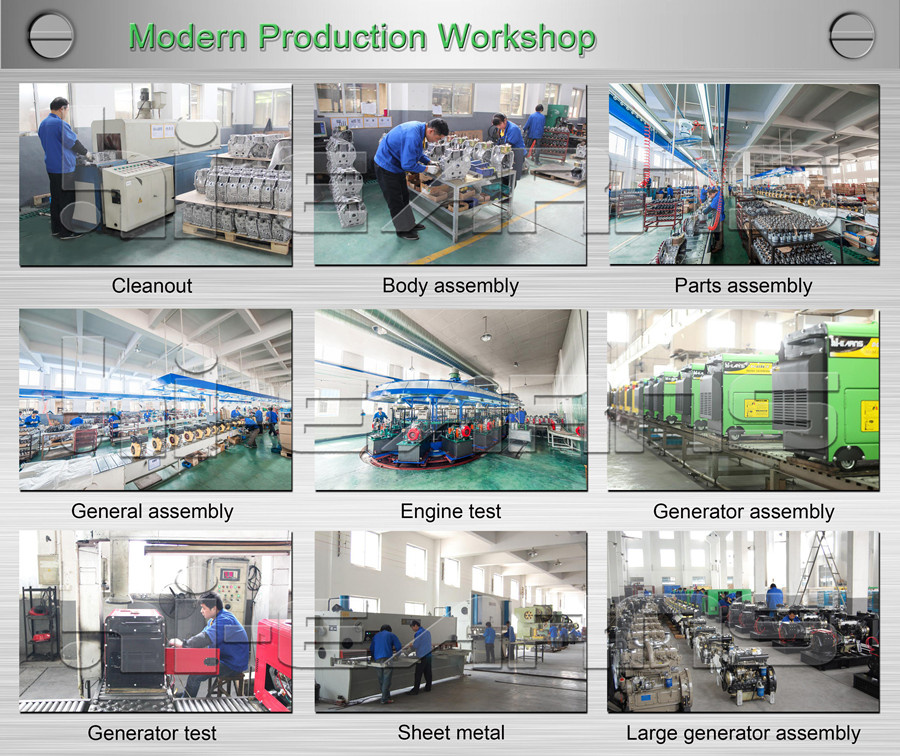

Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output: Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard:
We are professional generator manufacture, I think we must have one type even more can match what you need! Just send us your inquiry, we will highly appreciate it!
GENERATOR
Model
DG12000E
Frequency(hz)
50
60
Max. output(kw)
8.8
9.5
Rated output(kw)
8
9
Rated. AC voltage(v)
120, 220, 230, 120/240
Power factor(cosΦ )
COSΦ =1
DC output (v)
12V/8.3A
Phase
Single phase or Three phase
Alternator type
self-excited, 2-pole, single phase alternator
Starting system
Electric
Operating noise level(at 7m)
86
Fuel tank capacity(l)
2*12
Continues work(hr)
10
9
ENGINE
Model
2V86
Engine type
V-twin, 4-stroke air-cooled diesel engine,
Bore× stroke(mm)
86*70
Fuel
0# or -10#light diesel oil
Lubrication oil volume(l)
1.7
Combustion system
Direct lnjection
STANDARD FEATURES
Voltmeter
yes
AC Output Socket
3
AC circuit breaker
yes
Oil warning light
yes
Oil alert
yes
OPTIONAL FEATURES
DC circuit breaker
optional
Calculagraph
optional
Big Wheel
optional
Three phase voltage
optional
Current meter
optional
ATS
optional
Remote control
optional
Welding
optiona
DIMENSIONS
Dimension(L× W× H)(mm)
850× 630× 680
Dry weight(kg)
170
180
20FT
70

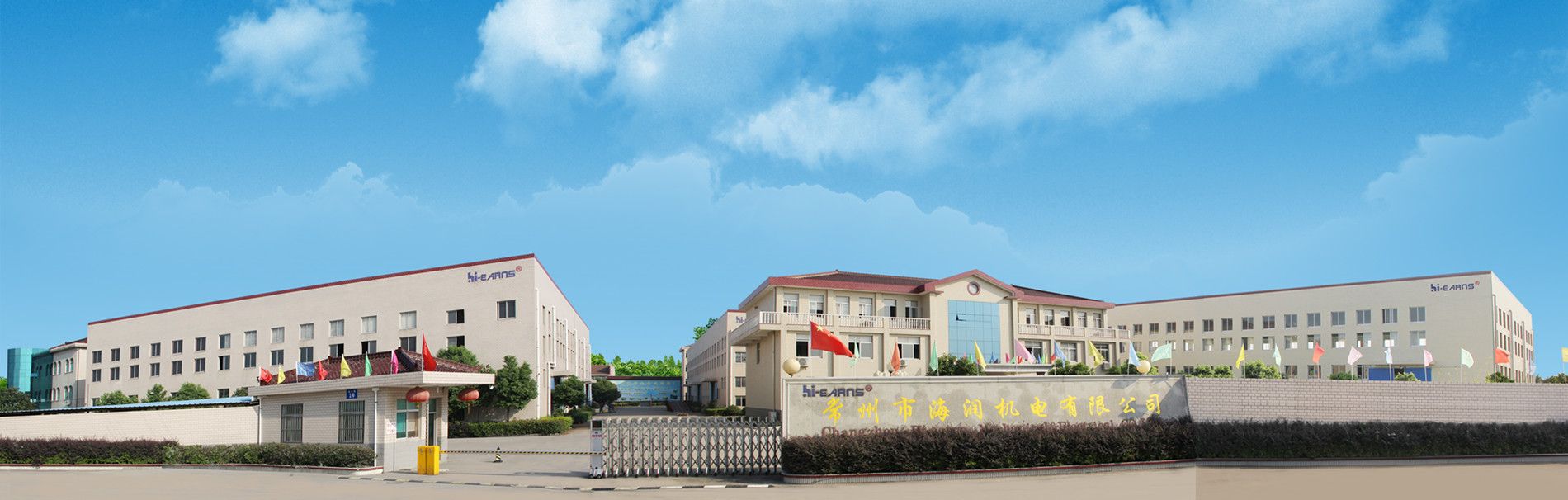

Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
