Prod Model: |
JDG164A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wire: |
100% Pure Copper Wire |
Frequency: |
50 or 60Hz for Option |
Rotational Speed: |
1500rpm or 1600rpm for Option |
Phase: |
Single or Three Phase for Option |
Protection Class: |
IP23 |
Insulation Class: |
H |
Control System Ser.4: |
Self Excited |
Rated Power Factor: |
0.8 |
Stator Winding: |
Double Layer Concentric |
Winding Leads: |
12 |
Product Description
Specifications

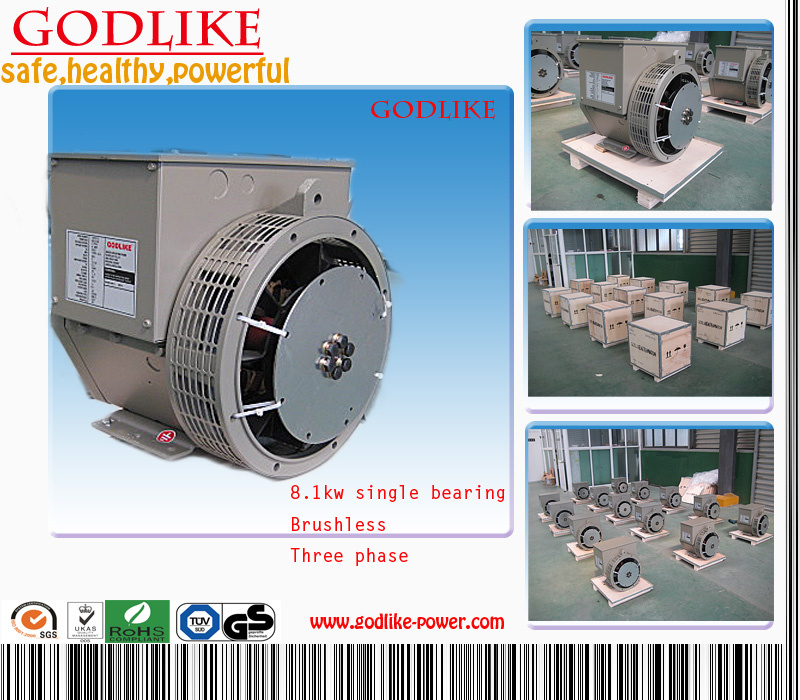

1) Brushless Synchronous A. C. Alternator,
2) Stamford Type of Electric Generator,
3) Three Phase, IP23, Class H,
4) Power range: 8kVA-1250kVA(8KW-1000KW)
5)Rated voltage 380/400V, 110-690V option
6) Adjusting rate of stable voltage≤ 1%
7) Transient state voltage≤ -15% - +20%
8) Wave aberration rate of voltage THD≤ 3%
Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 100% famous brand copper wire;
4) 2/3pitch windings avoid excessive neutral currents;
5) Dynamically balanced rotor and sealed-for-life bearings;
6) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
7) Easily coupled with power networks or other genetator sets,
8) Balance rotor with single or two sealed ball bearings available,
9) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
10) Wide range of flange adaptor and single bearing coupling disc,
Standards&Certifications
1) GODLIKE generators are comformity to International standards of IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
2) GODLIKE generators are Certified of CCC, TUV, EPA, SGS
Solutions
1) Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,
2) Widely used in Industry, Commercial, real estate, hospital, hotel, railway, telecommunications, datacenters and mining etc
Warranty:
2 years, Godlike Power DHL new parts for replacement within 3 days upon customer's complaint.
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
