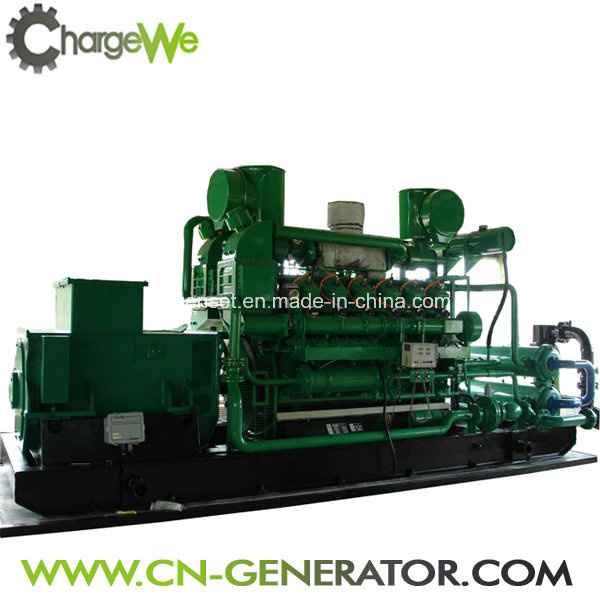

750kVA Natural Gas Generator with CE
Price: |
US $ 122500/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
CW-600GFT gas generator |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Start Mode: |
24V Electronic Motor |
Alternator: |
Brushless |
Gas Source: |
Gas |
Product Description
750KVA GAS GENERATORAPPLICATION PLACE1.Industrial Zone ,Petroeum chemical plant
2.Used as standby power source instead of natural gas generating
3.Supply power for the auxiliary engine which work in oil wellREQUIREMENETS FOR NATURAL GASWithin 1m from pressure regulating valve of gas intake .
1.The ratio of CH4 in nature gas ≥70%
2.Pressure of nature gas :80~200kpa ,rate of pressure change ≤1kpa/min .
3.H2S≤20mg/Nm3
4.Moisture content ≤ 40g/Nm3
5.Impurity particle size ≤5um,impurity content≤30mg/Nm³TECHNICAL PARAMETER OF 500KW GAS GENERATORGenset No. | CW-500GFT |
Engine No. | 12V190ZLDT-2 |
Type | outside |
Rated power | 500kw |
Prime power | 400kw |
Rated voltage | 400V/230V |
Phase | 3P4W |
Rated frequency | 50Hz |
Rated speed | 1000r/min |
Rated power factor | 0.8 |
Rated current | 902A |
Frequency volatility rate | ≤0.5% |
Voltage regulation range | 95-105% |
Heat consumption | ≤11.5mj/kw.h |
Lubricant consumption | ≤1.5g/kw.h |
Gas Pressure | 80-200kpa |
Cylinder No. | 12-V |
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 8:1 |
Start mode | 24V electric motor |
Overhaul | ≥25000h |
Noise | ≤105dB(A) |
Intake mode | Supercharging, inter cooled |
Sparking mode | Spark plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electronic speed regulation |
Lubrication mode | Pressure and splash |
Cooled mode | Circulating water cooled |
Exhaust temperature | ≤650ºC |
Displacement | 71.45L |
Size | 6000×1970×2735 |

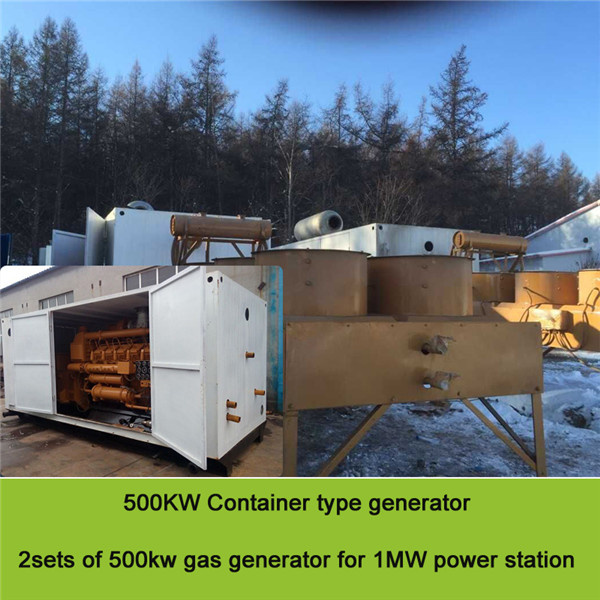

SUCCESSFUL CASE OF GAS GENERATOR
CE/ISO
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
