Prod Model: |
OCL-95 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency: |
50/60 Hz |
Rated Power: |
85kVA / 68kw |
Rated Voltage: |
220 / 380V |
Rated Current: |
123A |
Air Intake System: |
Turbocharged |
Start System: |
Electric Start with Battery Charger |
Type: |
Micro-Computer Control Automatic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Speed: |
1500/1800 Rpm |
Product Description

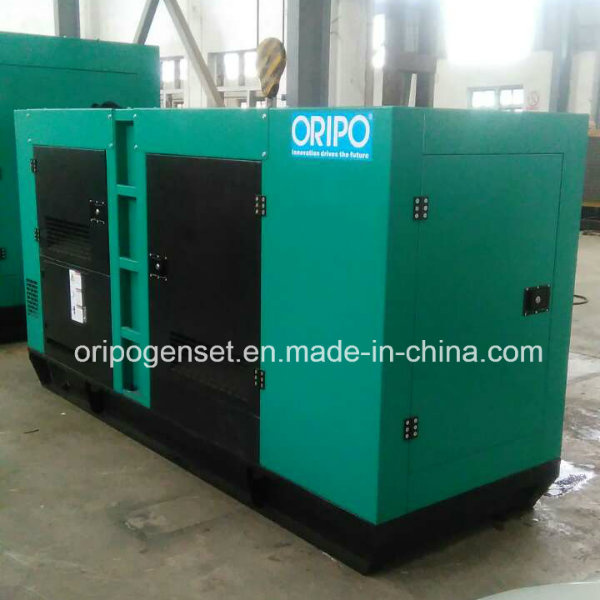

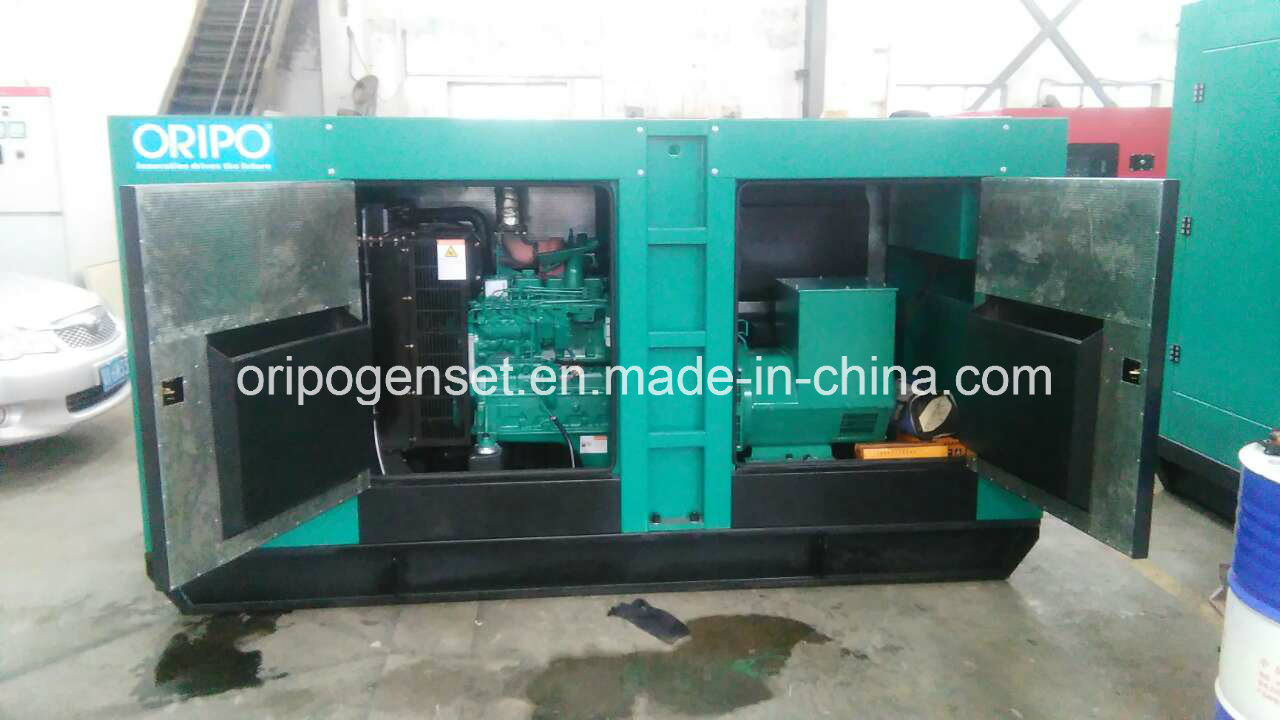

Generator For Sale Low Price of 85kva 68kw Open / Silent Generator Set
Product Features:
1. With Brand New Cummins Engine.
2. 100% Copper Alternator Generator.
3. Good Quality and Rapid Service.
4. Lasted 8 Hours Running Fuel Tank.
5. Fuel Less Generator.
6. If With ATS, Can Be Automatic Started When Out Of Electric Supply.
Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
KVA | KW | KVA | KW |
OCL-95 | 95 | 76 | 85 | 68 | 6BT5.9-G2 | LTG224F1 | 6110 |
220/380V, AC, 50Hz, 0.8PF (lag), Three phase, four wires
Generator set specificationsGovernor Class | ISO8528 G3 |
Potential Drop | 1% |
Steady Voltage Regulation | 1% |
Frequency Drop | Synchronous(0%) |
Steady-state Frequency | 0.25% |
R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
Fuel Consumption Rate ,g/kw.h(L/hr) | 215(19) |
Starting Battery Capacity ,A/hrhhr | 80*2 |
Total Coolant Capacity ,L | 27 |
Fuel Capacity (base tank),L | N/A |
Engine DataModel | 6BT5.9-G2 |
Type | In-line 6 Cylinder,4 Cycle |
Displacement ,L | 5.9 |
Compression Ration | 17.5:1 |
Aspiration | Turbo, Water / Air cooling |
Fuel System | A type Fuel Pump,EFC Electronic Governor |
Bore*Stroke(mm) | 102*120 |
Rated Speed ,rpm | 1500 |
Governor Type | Electronic |
Starting Voltage | 24V ,Negative ground |
Battery Charging System | 24V 35A |
Lubricant Capacity ,L | 16.4 |
Coolant Capacity, L | 27 |
Alternator DataProtection Class | IP21 |
Insulation Class | Class H |
Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
Excitation Type | Brushless & Self-excited |
Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
Telephone Interference(TIF) | <50 |
Telephone Interference(THF) | <2% |
Exhaust SystemExhaust air flow | 16.8m3/min |
Exhaust Temperature | 565ºC |
Max Back Pressure | 10kPa |
Air Intake SystemMax Intake Restriction | 6.35kPa |
Burning Capacity | 6.48m3/min |
Air Flow | 158m3/min |
Lubricant SystemTotal Lubricant Capacity | 16.4L |
Lubricant Consumption | ≤4g/kwh |
Engine Oil Tank Capacity | 14.2L |
Oil Pressure at Rated Speed | 345kPa |
