North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method:
Wind Cooling
Stroke:
Four Stroke
Installation Method:
Portable
Type:
Basic Diesel Generator
Output Type:
AC Three Phase
Product Description
5.5kVA open diesel generator set 1. 5.5kVA/open structure, 50Hz, 230V/400V, 7.9A, 3000rpm 2. CE&ISO9001 approved 3. Powered by kaiao advanced air-cooled diesel engine 4. Ideal for home emergency use or as standby power supply 5. Large fuel tank, ensuring hours of continuous output 6. A variety of specially-designed control panels available for different markets
Wuxi kaiao power machinery Co., Ltd. specialized in the development and manufacture of small special: Air-cooled diesel engine(ka170f, ka178f, ka186f, ka186fa, ka2v86), Air-cooled diesel generator set(2kw--8.5kw) Water-cooled diesel generator(10kw-100kw), Water pump unit(2 '', 3 '', 4 '') Electric welding set, construction machinery, and gardenging machinery, etc.

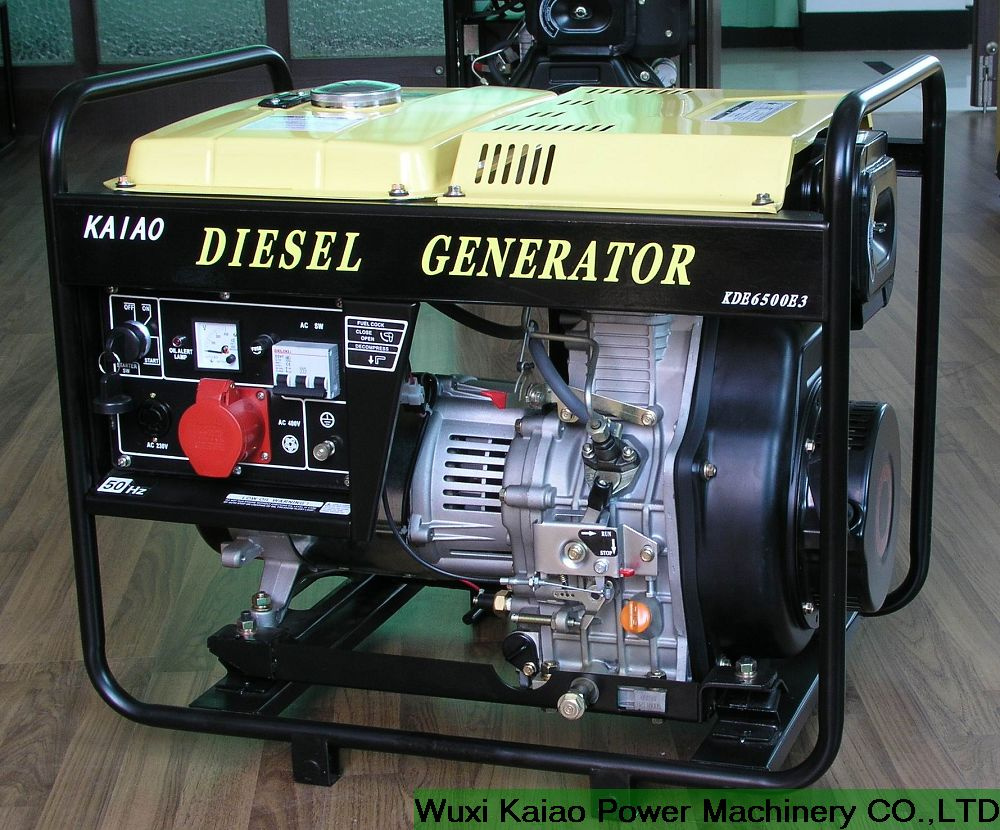

Diesel generator KDE6500E3
Model
KDE6500E3
Frequency (Hz)
50
60
Output power (KVA)
5.5
6.3
Max. Power(KVA)
6
7
Voltage (V)
230/400
240/416
Current (A)
7.6
8.7
Engine speed (r/min)
3000
3600
Phase
Three
Power factor(cosφ )
0.8
Excitation system
Self-excited constant voltage
Noise level (7m)
DB (A): 77
Fuel tank capacity (L)
12.5
Structure
Open-frame
Panel
Ordinary
Outputsocket
Two
DC12V output
Terminal post
Engine Model
KA186FAE
Bore*stroke (mm)
86 *72
Displacement (L)
0.418
Power (KW)
5.7/3000
6.3/3600
Fuel consumption rate (g. KW/h)
275.1
281.5
Compression ratio
19
Lubrication system
Spring
Engine starting system
Electric starter
Diesel oil model
Summer: 0#, winter: -10#
Lube oil model
SAE10W-30 (above CD grade)
Lube oil capacity (L)
1.65
Battery capacity(V-AH)
12V-36Ah
Net weight(KG)
100
Dimension(L*W*H)
760× 515× 710
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
