Maximum Horsepower:
6HP
Fuel:
Diesel Engine
Product Description

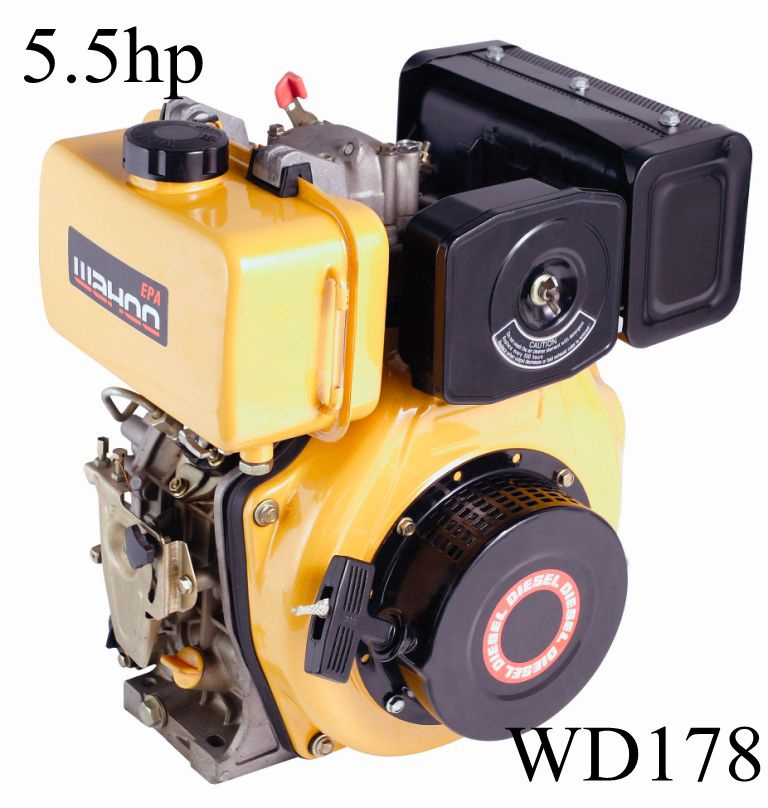

Wahoo diesel engine 6hp maximum horsepower WD178
Feature: 1.Start easily with a lightly pull 2.16months warranty 3.stable voltage and frequency 4.low fuel consumption 5.We can supply OEM brand 6.We will according to customer's demand
WD178
Wahoo 6hp diesel engine specification
Engine type:
4-stroke single cylinder,air-cooled diesel engine
Combustion system:
Direct injection
Bore×stroke:
78mm×62mm
Displacement:
296cc
Engine speed(rpm):
3000 /3600
Max.output(hp):
5.4 /6.0
Continuous output(hp):
5.0 /5.5
Power take off:
Crankshaft or camshaft(camshaft PTO rpm is 1/2)
Starting system:
Recoil or electric(optional)
Fuel tank capacity:
3.5L
Lube oil capacity(L):
1.1L
Net weight(recoil)(kg)
33kg/34kg
Net weight(electric)(kg)
38kg/39kg
Dimension(L×W×H)(mm):
465×445×500
Patented Motor Designs
We are one of the few companies in mainland China that has patents on its motor designs. That means you won' T have problems with IP protection laws when you source our power generators, water pumps, pressure washers and other motor-driven items, even in strict regions such as North America and Europe.
Wanhao has won over many customers around the world because we offer competitive prices and are dedicated to craftsmanship and quality. Some of our valued customers include Home Depot, GMC, Electrolux and TTi. We have EPA 2005 Motor Year Certification and CE certification.
A Variety of Production Capabilities
Our company designs and manufactures general purpose gasoline engines from 2.6HP to 13.5HP, gasoline generators from 1kW to 6kW, water pumps from 1.5 inches to 4 inches, and pressure washers at 1800PSI, 2500PSI and 2700PSI.
Emphasis on Quality Control
Much of Wanhao' S success is due to our extensive Quality Control Department. Our 30 QC staff carefully perform inspections at every stage of production, from the time we receive raw materials to packaging. Noise, power, and stability are tested to ensure that our engines can endure 580 hours of constant use. Our management system is approved under ISO 9001: 2000, and we have CE product approval.
Service
We' Ll print custom logos and product documentation in your language, and provide spare parts for easily worn down components. We also can design and deliver OEM/ODM samples in one month. You can discuss your requirements with our English-speaking staff.
