| Prod Model: |
R-CC600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Prime Power: |
600kVA |
| Rated Frequency: |
50Hz/60Hz |
| Phase: |
3 |
| Sylinder: |
6 |
| Voltage: |
220/380V, 230/400V, 240/415V, 3300-10500V |
| Engine: |
Powered by Cummins Engine |
| Manufacturer: |
Rcgpower- Jiangsu China |
| Alternator: |
Stamford/ Mecc Alte/Marathon/ Leroy Semor and Othe |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |

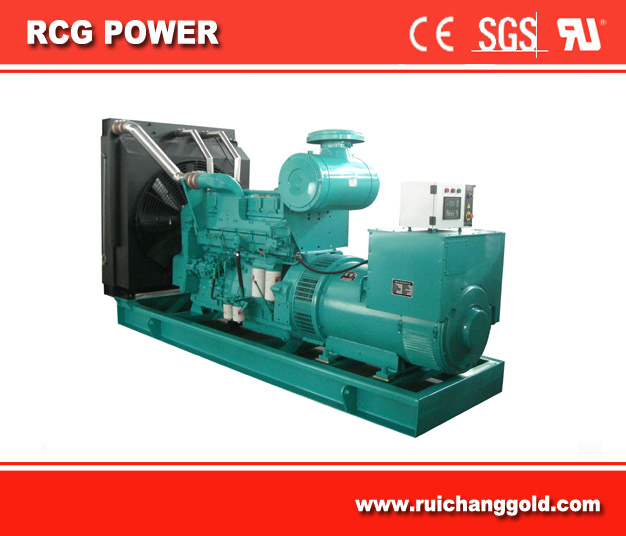

Product Description
FREQUENCY: 50Hz (60Hz is available)
VOLTAGE: 380/220V, 400/230V, 415/240V
MODEL: R-CC600
ENGINE
Heavy duty industrial diesel engine manufactures in accordance with B. S. S. 5514, the engine is capable of providing 10% overload for a minimum of 1 hour in any twelve hour period.
ELECTRICAL SYSTEM
12V D. C electrical system, Low Oil pressure and High water temperature shut down
PROTECTION
Low oil pressure, high water temperature and over speed protections
COOLING SYSTEM
50 Degree Tropical Radiator
ENCLOSURE
Mounted within an enclosure and designed to reduce noise level to less than 75DBA at 1 meter in accordance with E. E. C. Regulations. The canopy is manufactured from mild steel with full length doors on either side for ease of maintenance. All components used are pre treated against corrosion and finished in polyester coating.
CONTROL PANEL
DEEP SEA Control System
CIRCUIT BREAKER
Mounted case circuit breaker is mounted on the machine in a steel enclosure complete with removable gland plates.
Generating Set Specification
| MODEL |
R-CC600 |
PRIME POWER (KVA/KW) | 600 |
| STANDBY POWER(KVA/KW) | 600/480 |
| Rated voltage(V) | 660/528 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(ºC) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER |
Powered by CUMMINS engine |
Model | KTAA19-G6 |
| Rated Power(kW) | 502 |
| No. of cylinders & configuration | In-Line 6 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electric governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 18.9 |
| Compression ratio | 13.5:1 |
| Bore×Stroke(mm) | 169*159 |
| 100% Load fuel consumption(L/h) | 118.5 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | DSE SERIES |
