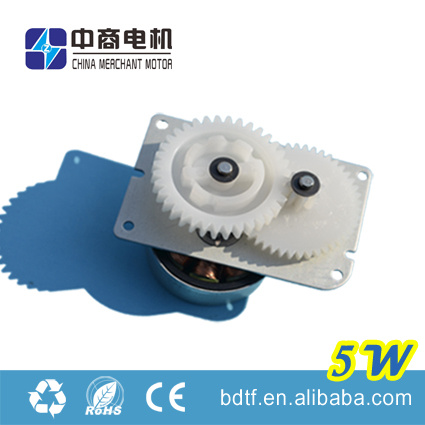

5W Hand Crank Generator

Prod Model:	ZSFD-F1HD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Rotating Speed:	3000r/Min
Rated Current:	700mA
DC Voltage Output:	8.5V DC
AC Voltage Output:	6.5V AC
Mechanical Noise:	<45db
Ratio Of Speed:	1:20.25
Weight (Approximate):	58g
Dimension:	50mm(L)X33mm(W)X31mm(H)
Widely Used:	Flashlight, Lantern, Water Purifier, Hammer,

Product Description

Product Description
Electric Performance
1.Rated Rotating Speed: 3000r/min
2.Rated Current: ≥700mA
3.DC Voltage Output: ≥8.5V DC
4.AC Voltage Output: ≥6.5V AC
5.Line to Line Resistance: 6.5Ω±0.5Ω
Mechanical Behavior and Operating Characteristics
1.Mechanical Noise: <45dB
2.Ratio of Speed: 1:20.25
3.Weight (Approximate): 58g
4.Output Characteristics: No-load output Voltage varies directly with the rotating speed
Dimension: 50mm(L)X33mm(W)X31mm(H)
Applications
Outdoor lighting / Smart home / Digital devices / Fitness auto parts
Widely used for Flashlight, Lantern, Water Purifier, Hammer, Fitness Equipment and other portable electronic product etc
Related Parts
hand operated generator parameters

Modo

Phase

Speed

AC Voltage Output

DC Voltage Output

Current Output

Line to Line Resistance

Mechanical Noise

Ratio of Speed

Output

Weight

Dimension (mm)

r/min

v

v

Ma

Ω

dB

W

g

Length

width

height

ZSFD-F1HD

3

3000

≥6.5

6-10

≥700

6.5±0.5

<45

1:20.25

4-5.5

58

50

33

31
