Cooling Method:
Wind Cooling
Stroke:
Four Stroke
Installation Method:
Portable
Type:
Basic Diesel Generator
Output Type:
AC Single Phase
Product Description
Diesel Generator 1. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine Low noise 2. Ideal for home emergency use or as standby power supply 3. Large fuel tank, ensuring hours of continuous output 4. Advanced direct fuel injection system 5. A variety of specially-designed control panels available for different markets
WUXI KAIAO POWER MACHINERY CO., LTD

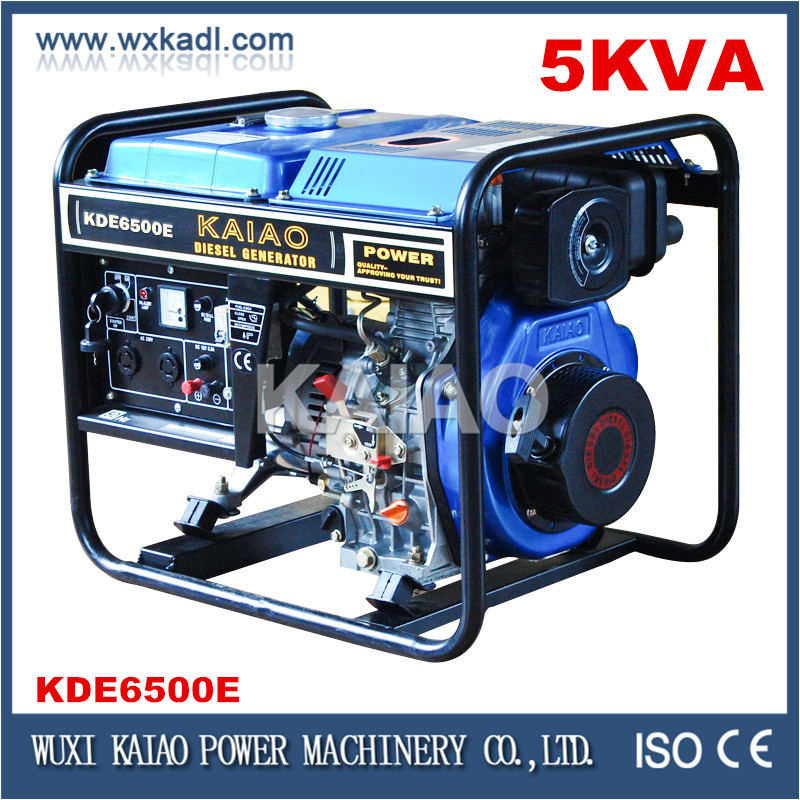

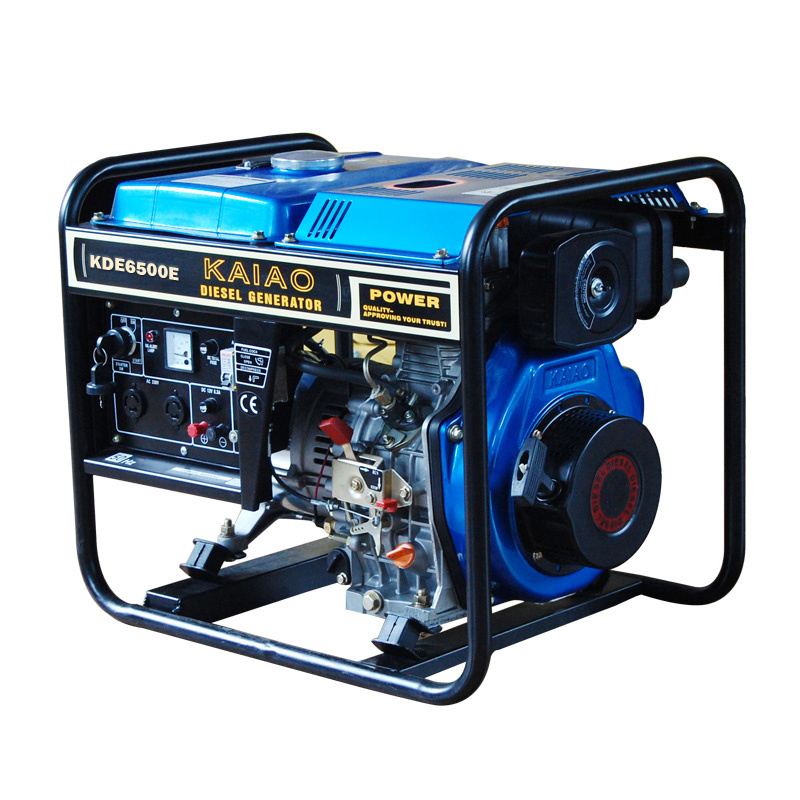

Diesel generator KDE6500E
Model
KDE6500E
Frequency (Hz)
60
Output power (KVA)
5
Max. Power(KVA)
5.5
Voltage (V)
120/240
Current (A)
41.7/20.8
Engine speed (r/min)
3600
Phase
Single
Power factor(cosφ )
1
Excitation system
Self-excited constant voltage
Noise level (7m)
DB (A): 77
Fuel tank capacity (L)
12.5
Structure
Open-frame
Panel
Ordinary
Outputsocket
Two
DC12V output
Terminal post
Engine Model
KA186FAE
Bore*stroke (mm)
86 *72
Displacement (L)
0.418
Power (KW)
6.3/3600
Fuel consumption rate (g. KW/h)
281.5
Compression ratio
19
Lubrication system
Spring
Engine starting system
Electric starter
Diesel oil model
Summer: 0#, winter: -10#
Lube oil model
SAE10W-30 (above CD grade)
Lube oil capacity (L)
1.65
Battery capacity(V-AH)
12V-36Ah
Net weight(KG)
100
Dimension(L*W*H)
760× 515× 710
