| Prod Model: |
KH-500GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Source: |
Gas |
Product Description

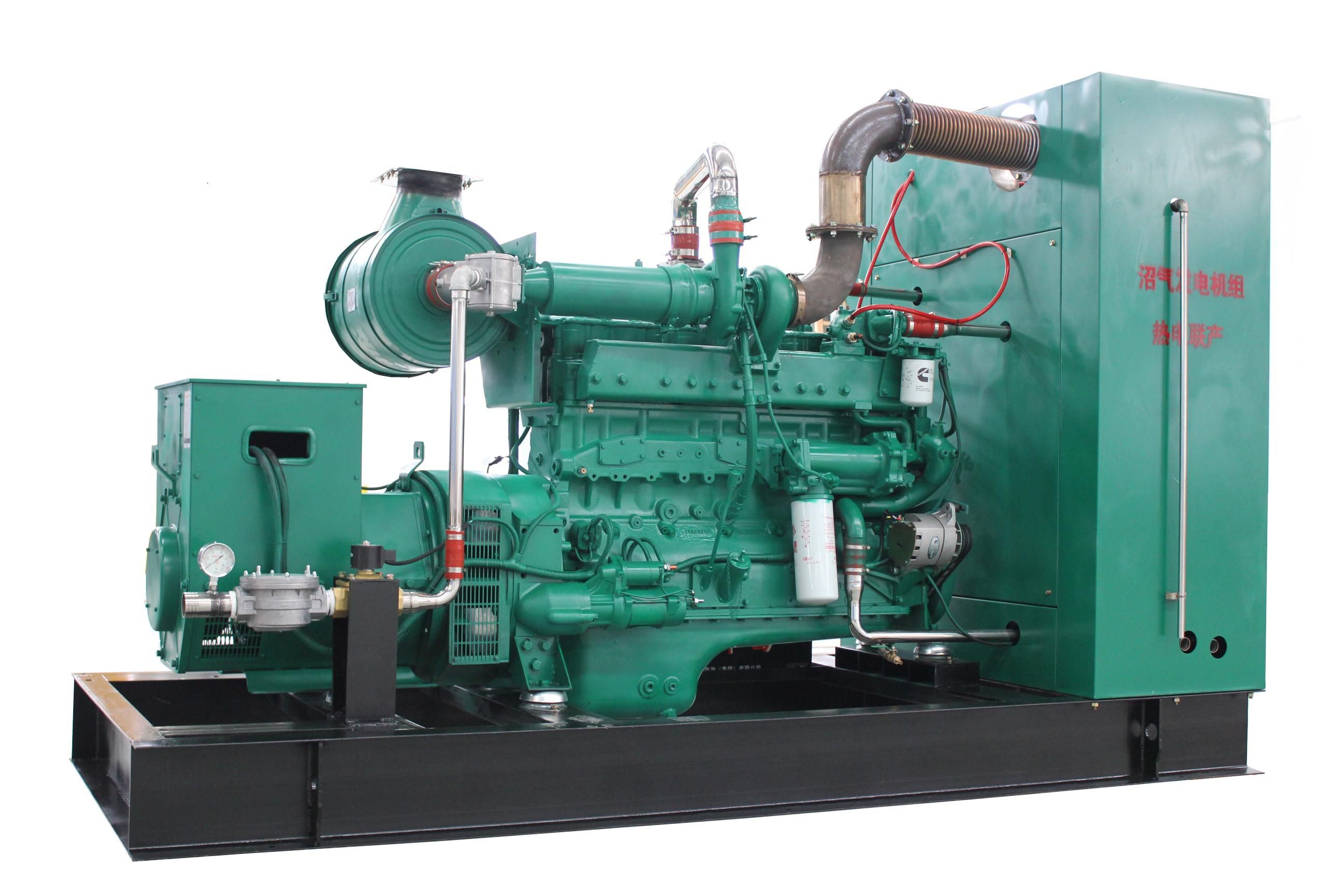

CHP Natural Gas Generator M-Cummins KTAA38
1. Short lead time
2. Rich experience in large power station project
Model
Item
MC500N
Genset Specifications
Rated Power (kW/kVA)
450 / 562.5
Standby Power
(kW/kVA)
500/625
Rated Voltage (V)
400/230
Frequency (Hz)
50
Rated current (A)
810
Voltage Stabilized Regulation
≤ ± 1.5%
Voltage Instantaneous Regulation
≤ ± 15%
Voltage Recovery Time (S)
≤ 0.5
Voltage Fluctuation Ratio
≤ 1%
Voltage Wave Distortion Ratio
≤ 5%
Frequency Stabilized Regulation
≤ 1%(adjustable)
Frequency Instantaneous Regulation
+/- 9%
Frequency Recovery Time (S)
≤ 13
Frequency Fluctuation Ratio
≤ 1%
Ignition System & Speed Governor
E3 Full Authority, Woodward USA, lean-burn combustion
Generator Insulation Class
H
Noise level dB(A) @ 1 meter
≤ 95
Overall Dimension(mm) (L*W*H)
(for open type)
4, 800(mm)× 2, 060(mm)× 2, 430(mm)
Weight: 7, 500kg
Silent Type
69 dB(A) @ 7 meters or 77 dB(A) @ 1 meter
(20'ft Containerized Canopy, Price is Available on Request)
|
GAS GENERATOR SET |
|
GENSET MODEL NO. |
KH-500GF-T |
|
Manufacturer |
KAIHUA |
|
Rated Output (KW/KVA) |
500/625 |
|
Standby Output (KW/KVA) |
555/693.8 |
|
Rated Speed/Frequency |
1500rpm/50Hz |
|
Voltage, Phase and Wire |
400V/230V, 3 Phase and 4 Wires |
|
Power Factor |
0.8(lag) |
|
Rated Output Current (A) |
902 |
|
Dimension (mm) |
3440× 1300× 1920 |
|
Weight (KG) |
4650 |
|
GAS ENGINE(power pack) |
|
GAS ENGINE MODEL |
6NG19TAA-G1 |
|
Rated Output (KW) |
555 |
|
Engine Configure |
Water Cooled , 6 Cylinder, Electronic Control System |
|
Aspiration |
Turbocharged +air-to-air intercooled |
|
Bore (mm) × Stroke (mm) |
159× 159 |
|
Compression Ratio |
10.5: 1 |
|
Displacement (Liters) |
18.9 |
|
Gas consumption (m3/kw@h) |
< 0.32 |
|
Lube Oil consumption (g/kw@h) |
< 1.9 |
|
Exhaust Gas Flow (m3/h) |
4200 |
|
Fan-air Flow (m3/s) |
13.7 |
|
Exhaust Gas Highest Temperature (centigrade) |
680± 25 |
|
Lube Oil Temperature (centigrade) |
50 |
|
Coolant Temperature (centigrade) |
132 |
|
Start Model |
Electrical |
|
Speed Governor |
Electrical |
|
ALTERNATOR |
|
ALTERNATOR MODEL |
LSA49.1S4(LEROY SOMER) |
|
Excitation |
Brushless |
|
Insulation Class |
H |
|
Protection Class |
IP23 |
|
Efficiency |
92.8% |
|
Voltage Adjust Range |
≥ ± 6% |
|
Steady State Voltage Regulation |
± 1.0% |
|
Voltage Control |
AVR |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
