Prod Model: |
AC500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Installed Capacity: |
500kw |
Pf: |
1 |
Rated Voltage: |
400V, 3phase 4 Wire |
Frequency: |
50Hz |
Step Value: |
1kw |
Type: |
Basic Diesel Generator |
Installation Method: |
Portable |
Cooling Method: |
Air Cooled |
Product Description

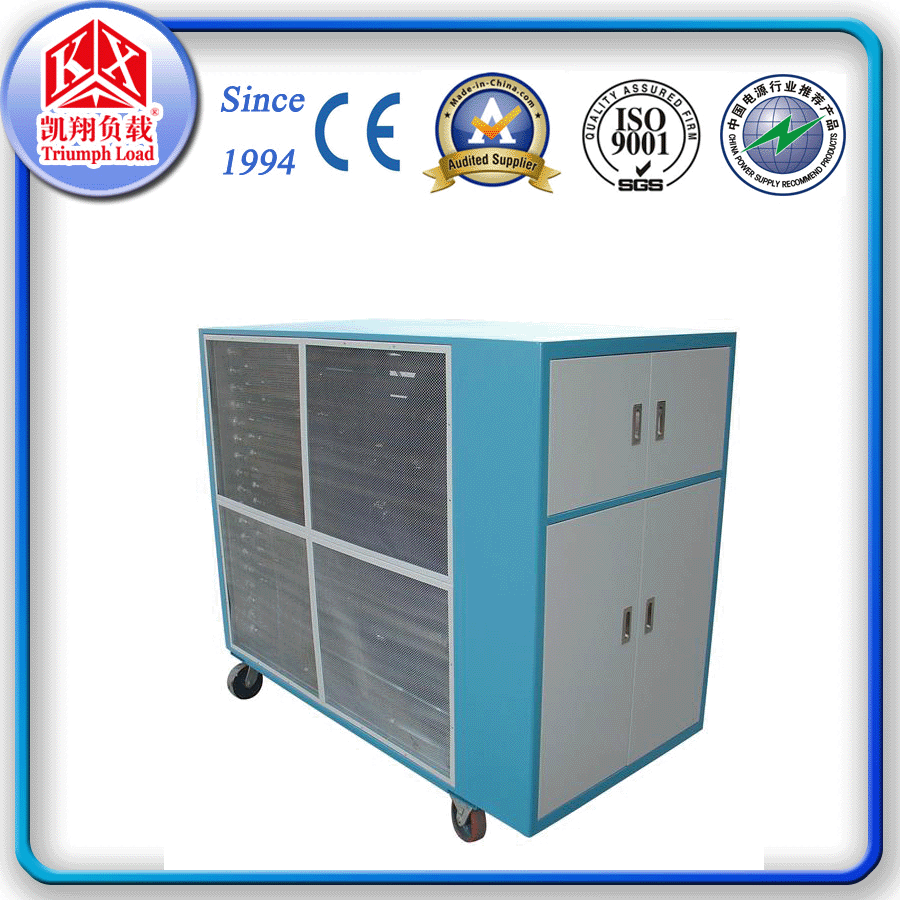

Dummy Load Bank
Summary
AC Load Bank is mainly used to test load ability of AC power, such as generator, UPS power and so on.
It adopts latest power-consuming module and it is of high power density and pure resistance.
Power input adopts subsection, while load is energy-consuming way. Cooling way is air-cooled.
Technical Condition:
1, Resistive Load Capacity: 200KW
2, Power factor: Cos. Phi =1
3, Voltage: 380V/50Hz
4, Load Steps:
1kW+2kWx2+5kW+10kW+20kWx2+50kW+100kW, 1kW is the smallest step
5, Power Supply: AC220V/50Hz - single phase
6, Operating Environment: -10~+50° C, in room
7, Display: LED display AC voltage and AC current
8, Control mode: Panel
9, Cooling: Air-cooled
10, Dimension: 900mm× 1410mm× 1000mm(Length× Width× Height)
11, Weight: About 200kg...
More detail information, please contact us soon!
Voltage |
200-600V,etc |
Frequency |
50Hz, 60Hz, 400Hz |
Technology |
Metal Alloy |
