Product Description

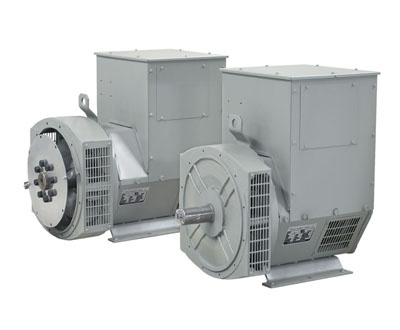

Stamford designed alternator, Brushless quality alternator. Main Specification: Power output: 48kw Voltage: 110/220/230/240/380/400/410V Frequency: 50HZ,60HZ. Rated speed: 1500rpm,1800rpm. AVR: SX 460 or SX440 Single phase or Three phase to option. SAE:0, 1,2,3# or 7.5'',10'',11.5''14 disk to option.
SAE/ Frame No.
CONTINUOUS DUTY
Brushless Alternator Model
Rated Output (KW/KVA)
Specification
KW
KVA
Packing Size(cm)
G.W/N.W(kg)
GR225C
SEA1,2,3#/ 8,10,11.5,14disk
34
42.5
108X66X94
255/235
GR225D
40
50
270/250
GR225E
48
60
290/270
GR225F
58
72.5
330/310
GR225G
68
85
370/350
1) Insulation Class: H
2) Protection Class: IP 21 or IP23
3) All generators have two kinds of coupled construction: single-bearing or double-bearing
Shanghai Stanford Power Equipment Co., Ltd. is a professional manufacturer of 135 series diesel engines, 135 modified products and subsequent auxiliary products (diesel generating sets). In the business concept of People-oriented, our institution employs high-paying key technicians of all kinds, cultivates a strong technical team, and is kind to the employees to stimulate their passion at work. According to customer requirements, our institution is able to design different stationary, marine and power station diesel engines in line with the international standards.
Please feel free to contact us for further information.
