Delivery Time:
25 Days
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Self-Starting Diesel Generator
Output Type:
AC Three Phase
Product Description

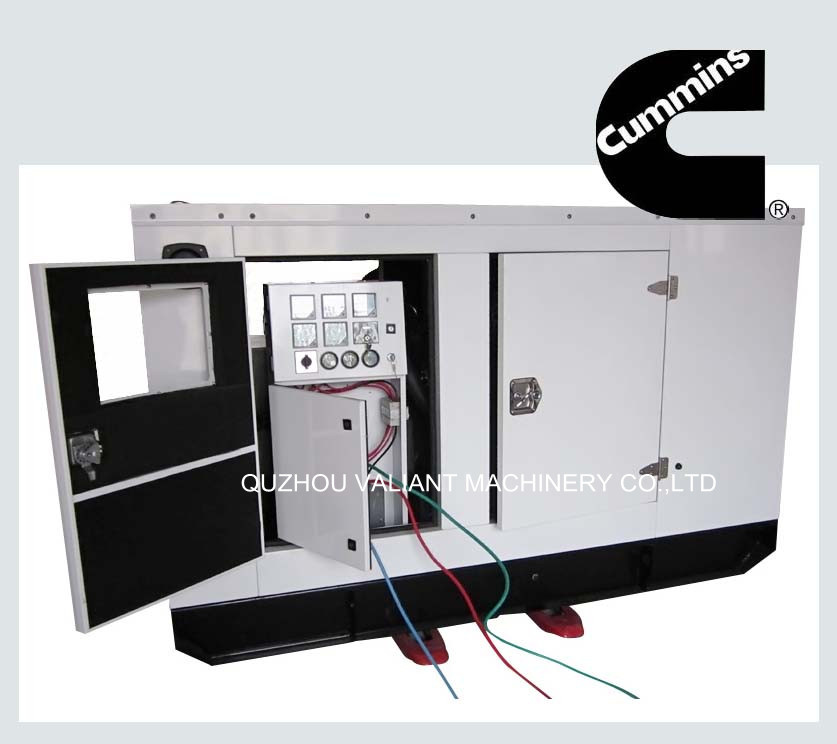

1. Cummins three phase generator;
2. Cummins engine and Stamford Alternator;
3. Rated Power: 40kVA;
4. Certificate: ISO9001: 2000.
Model
Prime Power
Standby Power
VP40E
32KW/40KVA
35.2KW/44KVA
Power Output at Different Voltage
Voltage
(V)
Frequency
(Hz)
Phases
PF(cos)
Standby Current
(A)
Prime Current
(A)
Standby Power
(KW/KVA)
Prime Power
(KW/KVA)
440/254
50
3
0.8
57.75
52.5
35.2/44
32/40
400/230
50
3
0.8
63.47
57.7
35.2/44
32/40
380/220
50
3
0.8
66.88
60.8
35.2/44
32/40
220/127
50
3
0.8
125.5
105
35.2/44
32/40
Engine Data
Manufacturer / Model:
Perkins/1004G
Air Intake System:
4 Cycle, Naturally Inspiration
Fuel System:
Direct Injection Fuel System
No. of Cylinder:
3 - In Line
Displacement:
3L
Bore×Stroke:
100×127(mm)
Compression Ratio:
16
Rated RPM:
1500rpm
Max. Standby Power at Rated RPM:
34KW
Governor Type:
Mechanical
Steady State Frequency Regulation:
±0.5%
RPM of Piston:
6.35m/s
Quzhou Valiant Machinery Co., Ltd, an enterprise which is specialized in manufacturing and marketing solar illumination, solar and diesel generator set, possesses a certain scale of development, design and production, and owns a professional and capable technical team as well as perfect after-sale service system.
Valiant has the purpose of "innovation, brand power" in product design and development. Through the practice of continuous improvement, we have developed solar lighting, solar power products and other environment-friendly products.
Our company has independent import and export rights. Our products have been exported to Asia (Vietnam, Myanmar, Pakistan, Iraq and Lebanon), Africa (Nigeria, Kenya, Liberia and South Africa), Oceania (Australia and New Zealand), Latin America (Venezuela and Nicaragua) and Europe (Italy and Norway). With worldwide trust and praise, we have formed stable cooperative relationships with a lot of customers.
With unique management mode, distinctive corporate culture, Valiant has won good social and economic benefits. Our main products include closed (mobile) solar lighting, open-frame (mobile) solar lighting, large water-cooled generator sets, such as Cummins units, Revo (Perkins) units and Volvo units, air-cooled diesel engines 2KW-5KW and air-cooled gasoline units 1KW-7KW. In addition, our factory also provides customized models, such as (ultra) quiet units, mobile power station units and others.
Valiant, from product design, development and marketing to after-sales service, really forms the one-stop service system. We are dedicated to providing customers with high quality services.
