Features:
1. Mitsubishi PLC+ WEINVIEW HMI/Siemens PLC+HMI, Perfect user's experience;
2. Servo motor unit& Double Belt unit film transport;
3. Auto program set-up, Photo sensor tracking mark, quick change former assembly;
4. Upgraded weighing accuracy performance by liner weigher controlled by PLC;
5. High quality performance at economic cost from the liner weigher;
Applications:
Suitable to packaging the high accuracy and easy fragile material, such as: Puffy food, crispy rice, Potato Chips, Snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares etc

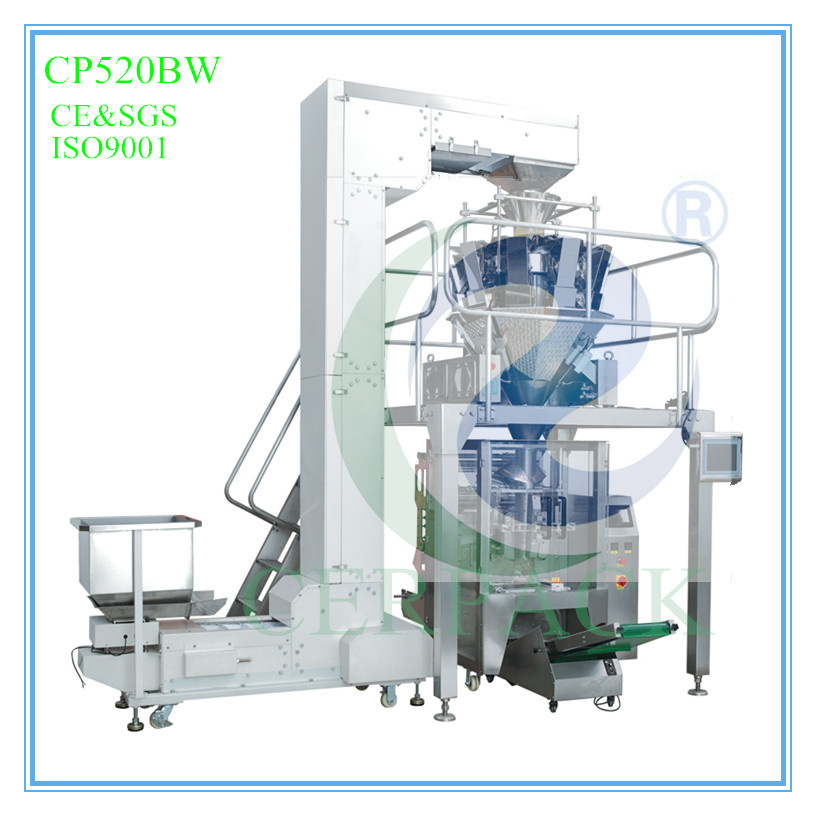

The above whole system dose consist of the following:
1. Z bucket conveyor with vibrating feeder/ Single hopper elevator;
2.4heads liner weigher
3. Working platform;
4. VFFS Packaging machine;
5. Output conveyor
6. Optional: Metal detector, Check weigher, Rotary collecting table, Nitrogen Generator, Air compressor.
Specifications:
| Model | 520B |
| Capacity | Max 60 bags/min |
| Measuring range | Max2,000ml |
| Bag model | Pillow bag |
| Bag size | L 100-350mm
W80-250mm |
| Film Width | Max 520mm |
| Control+HMI | PLC + English interface |
| Air consumption | 0.8Mps, 0.5m3/min |
| Power | 1Phase,50Hz ,AC 220V, /2.5KW |
| Optional functions |
Gusset bag;
PE film;
Gas Charging;
Vacuum pulling film. |
Dimension(LxWxH) | 1580x1120x1790mm |
| Weight | 650kg |
Guangzhou CER Packing Machinery Co., Ltd manufactures & provides the vertical packaging machine & solution in Guangzhou (15 minutes drive to Airport), China.
CER has a professional, experienced of R&D and technical support. We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world. We are committed to providing high-quality products and prompt deliveries at competitive/reasonable prices.
The machine & line under the brand of CER are widely used in the package of food, medicine, hardware, daily chemicals, electronics, daily necessities, etc.
We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world.
We are committed to providing high-quality products and prompt deliveries at competitive prices.
CER Packing Machinery will give you a new concept of China's merchandise: Not only Made in China, but even Created in China!
OUR MISSION:
To offer our customers a full set of Packaging Solution as their requirements at reasonable prices & on time, and we are working on it;
To supply our customers a human User Experience and a positive impression with our products, our stuff and our company, and we are working on it.
OUR GUARANTEE:
Shipment must be effected as per contract or Proforma Invoice;
Service or Support must be satisfying within 2 working days; If possible, our engineer will give you local training and solve your problem face-to-face.
OUR FAITH:
Mutual Benefit is the foundation of long, last, firm and healthy business partnership.
