Colour:
Optional
Warranty:
1 Year Since B/L Date
Delivery Time:
10 Days After Advanced Payment
Stroke:
Four Stroke
Type:
Self-Starting Diesel Generator
Cooling Method:
Water Cooling
Installation Method:
Fixed
Output Type:
AC Three Phase
Excitation Mode:
Brushless
Speed:
1500rpm
Product Description

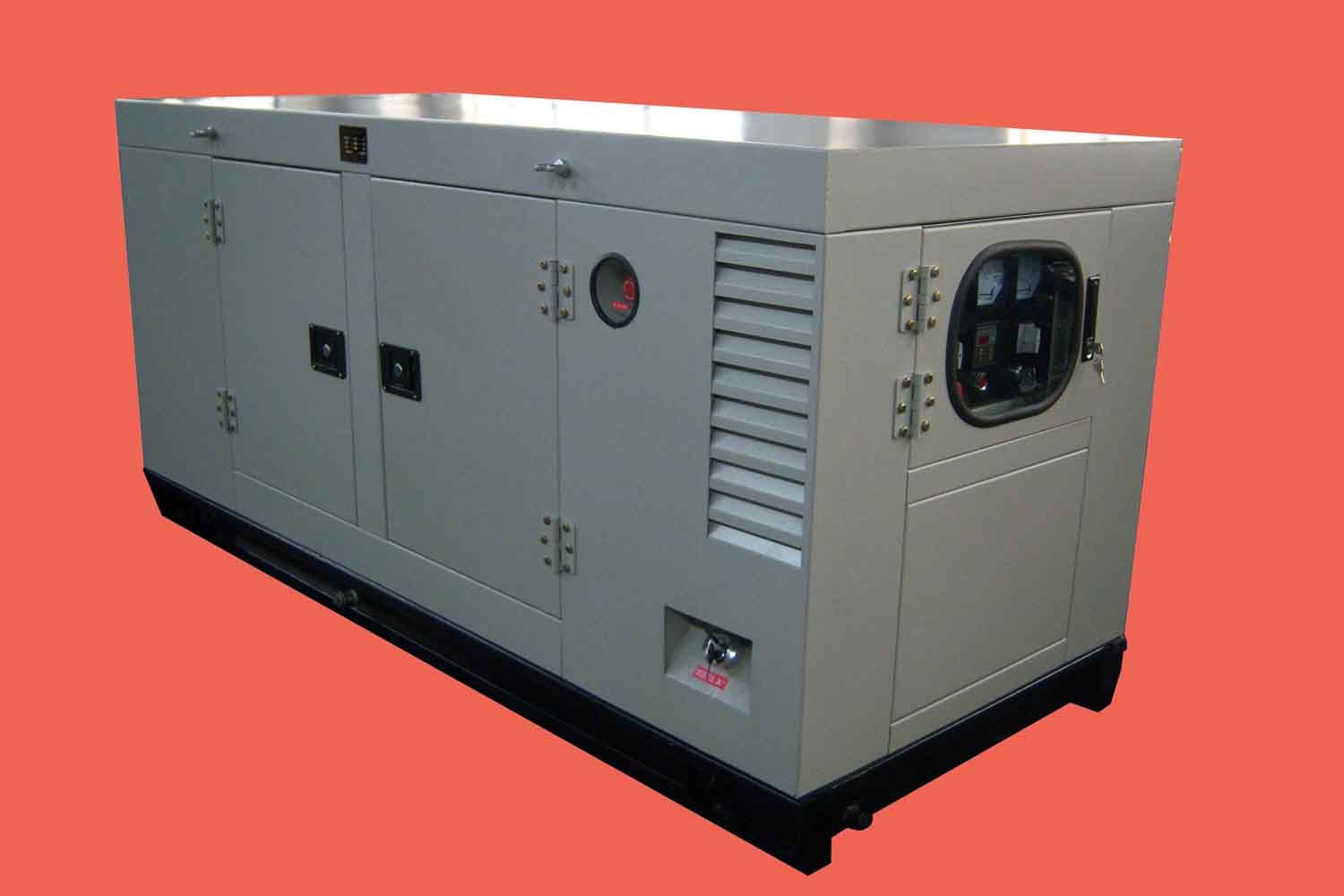

360kw Silent Type cummins Diesel Generator Set 1. Main characteristics: Perfect all-weather service property Outside steel owns perfect corrosion protection capability Effective shock absorber can make sure that generator set run steady Large capacity fuel tank ensure the generator set run for 8 to 12 hours Special noise elimination setting restrain machinery noise, 70 to 75dB 1m average on all 4 sides of DG set 2. Standard configuration of gen-sets: Engine: Ricardo, Deutz, Cummins and Weichai series diesel engine Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection Alternator: Brushless alternator, Marathon and Stamford Loading capacity: Below 24Kw, a 20'' container can load 12 sets
Technical Data
GROUP
Manufacturer
WeiTuo
Model
WTC360GF
Frequency
50HZ
Power
Standby Power
400KW / 500KVA
Prime Power
360KW / 450KVA
Open type
Dimension (L*W*H)
mm
3400× 1258× 2050
Weight
Kg
4100
DIESEL ENGINE
Engine Manufacturer
Cummins
Model
KTA19-G3
Cylinder Arrangement
6 in line
Air Intake System
Turbo, Air/Air cooling
Fuel System
PT type fuel pump, EFC
Displacement
18.9L
Bore and Stroke
159× 159(mm)
Compression Ratio
14.5
Rated RPM
1500rpm
Max. Standby Power at Rated RPM
448KW/609HP
Frequency Regulation, Steady State
≤ 1.5%
Exhaust Gas Flow
1489L/s
Max Intake Restriction
6.23kPa
Total Oil Capacity
50L
Total Coolant Capacity
91L
Alternator
Manufacturer
Stamford
Model
HCI 544C
Connecting Type
3 Phase and 4 Wires, " Y"
Protection Grade
IP23
Altitude
≤ 1000m
Exciter Type
Brushless, self-exciting
Insulation Class
H/H
Telephone Influence Factor (TIF)
< 50
THF
< 2%
Voltage Regulation, Steady State
≤ ± 1%
Alternator Capacity
500KVA
Alternator Efficiencies
94.10%
Air Cooling Flow
1.035m3/s
