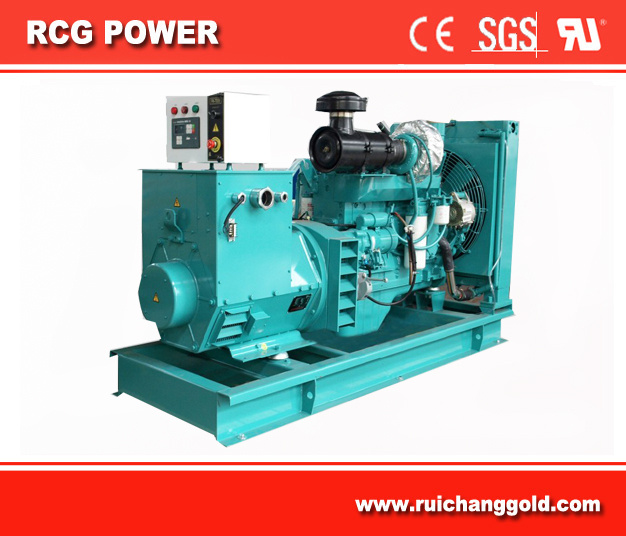

| Prod Model: |
R-CC350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Brand: |
Cummins |
| Engine: |
Nta85-G2a |
| Alternator Brand: |
Stamford |
| Alternater: |
Hci444e |
| Rated Power: |
350kVA/280kw |
| Rated Speed: |
1500 |
| Rated Frequency: |
50 |
| Power Factor: |
0.8 |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Speed: |
1500rpm |
Product Description
| MODEL |
R-CC350 |
PRIME POWER (KVA/KW) | 350/280 |
| STANDBY POWER(KVA/KW) | 375/300 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(ºC) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER |
CUMMINS |
Model | NTA855-G2A |
| Rated Power(kW) | 310 |
| No. of cylinders & configuration | In-Line 6 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electronic Governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 14 |
| Compression ratio | 14.0:1 |
| Bore×Stroke(mm) | 140×152 |
| 100% Load fuel consumption(L/h) | 72 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | DSE SERIES |
Standard Configuration of cummins marine generator set:
Engine: Cummins(Chongqing) -NTA855-DM/313
Alternator: Stamford alternator HCM534C & Marathon alternator MP-H-300-4
1, water cooling, 4 stroke
2, ratiation with water tank & fan & safe guard
Alternator: Stamford /Marathon (Made in China )
1, single bearing, 4pole and self excited brushless.
2, insulation --H class, Protection -- IP22 (IP23 in marine)
3, AVR(auto voltage regulation)
Control System: Key starting, Auto control panel, Remote control panel, ATS(Auto transfer switch)
Marine Generator set Performence:
1) Water pump cooling system.
2) Electric starter alternator, with charge storage battery DC24V (two 12 V).
3) Standard voltage is 400/230V and the rated frquency 50Hz, with R. P. M 1500, 3pha & 4wire contected. (60Hz can be provided according to your special requests...)
4) Base fuel oil tank is setted or the daily use fuel oil tank being option.
5) Completed parameter display, all in English languge, with perfect protection and control function. Low level fuel&water alarm, high fuel temperature, low oil pressure and high water temperature protection alarm are all installed...
6) Independantly over-load protection, automatically emergency stop in abnormal situation, unique sensors protection, adapt to all sensors...
7) Stainless steel base with vibration pad. Yellow body and the base, package: Plastic wraped or wooden case.
8) Noise-proof, exhaust silencer...
9) Documents can be submited: Installation & maitenance instruction,
Operation's manual, quality certificate and ex-factory testing report...
Optional of marine generator set:
Exhaust pipe, flexible pipe, muffler, charge battery, daily used fuel oil tank and so on...
Afer-sale service of marine generator set:
Guarantee: 12months or 1000hours (subject to which reches firstly)
