Prod Model: |
BH325GS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Alternater: |
Bh314e |
Brand: |
Bohua |
Color: |
Green, Yellow, Blue, Black, etc |
Warranty: |
12 Months or 1000 Hours From Delivery Date |
OEM: |
Yes |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Self-Starting Diesel Generator |
Output Type: |
AC Three Phase |
Product Description

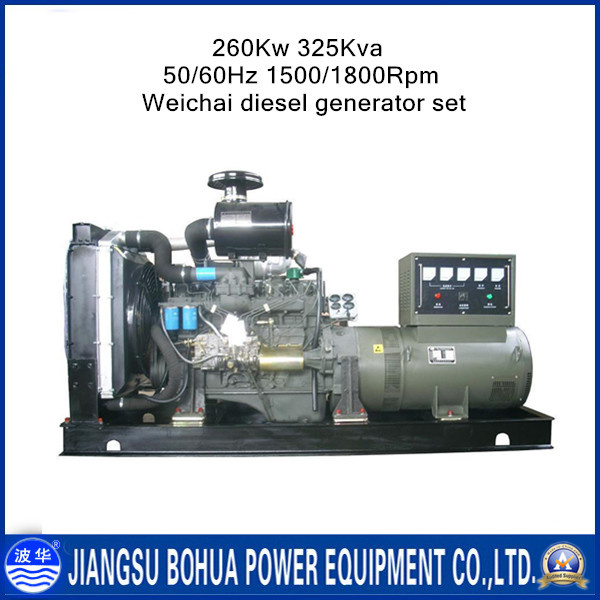

325KVA water cooled open type wholesale Weichai diesel generator
Introduction:
Weichai generator consist of Weichai diesel generator and engine. Small volume, strong power, safe and reliable. It's can provide perfect after-sales service and sufficient spare parts. Power is ranged from 30KW to 300KW. Stable in quality with reasonable price.
Engine
A. More than 10-hours operation base tank( optional )
B. Deep-sea key start controller (Auto start is optional)
C. Open frame and soundproof canopy
D. Heavy duty industrial diesel engine
A. Compact size
B. Suitable for long time operation
C. Low maintenance cost
E. Combination cooling water tank fitted to meet the requirement of radiation at ambient.
Alternator
A. Optional permanent magnet generator system provides constant excitation under all conditions.
B. Easy paralleling with mains or other generators, standard 2/3 pitch winding. To avoids excessive neutral currents.
C. Dynamically balanced rotors with sealed for life ball bearings and single construction
D. Class "H" insulation system.
E. Wide range of flanges and adapters and disc couplings.
F. Conforms to all leading industrial and marine standards.
Optional accessories
Soundproof enclosure
Trailer or movable power station
Automatic transfer switches(ATS)
Battery charger
Jacket water heater
Extra fuel tank
Fuel water sepatator
Warranty and maintenance:
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
Product package:
1. Export Wooden Case (Standard) or Plywood Case
2. According to customer's requirements
Company introduction:
Jiangsu Bohua Power Equipment Co. Ltd is a technologyoriented enterprise and also a professional production and management enterprise, which integrates production, sale, leasing, parts and components, services of alternator and diesel generator set with its offices set up in the main cities of China.
Our factory have Cummins, Volvo, Deutz, Shangchai, Weichai, Yuchai etc brand generator set, and silent/low noise/spound-proof, mobile/ trailer generator.
1 |
Power |
KVA/KW |
325/260 |
2 |
Voltage |
V |
400/230 |
3 |
Frequency |
HZ |
50/60 |
4 |
Speed |
RPM |
1500/1800 |
5 |
Power factor |
|
0.8 |
6 |
Ambient temp |
ºC |
40 |
7 |
Altitude |
M |
1000 |
8 |
Cooling method |
|
A/W |
9 |
100% load fuel consumption |
L/wh |
≤0.25 |
10 |
Phase |
|
3 Phase |
11 |
Protection grade |
|
lp23 |
12 |
Insulation class |
|
H |
13 |
Temperature rise |
|
H |
14 |
Engine Model |
Weichai |
WP12D317E200 |
15 |
Generator Model |
BOHUA |
314E |
