North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:
ISO9001: 2000
Delivery Time:
25 Days
Output Type:
AC Three Phase
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Self-Starting Diesel Generator

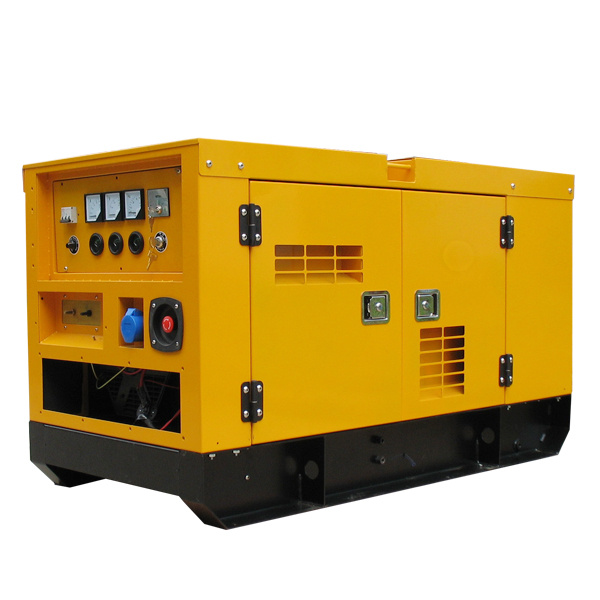

Product Description
1. Appears in Small Size;
2. With Isuzu Engine, Stamford Alternator (Made in Wuxi, China) silent power generator;
3. ISO9001: 2000 Certificate;
4. Delivery Time: 25 Days.
Gensets Model
VIZ25E
VIZ30E
SET
Rated power(KW/kVA)
20/25
24/30
Max. power(kw/kVA)
27.5
26.5/33
Frequency(Hz)
50
50
Noice level for silent type (Db)
68/1M
68/1M
ENGINE
Engine
Water-cooled, 4-stroke,
Water-cooled, 4-stroke,
Model type
4JB1
4JB1T
12 hours rated power(kw)
27
32
Cylinders
4
4
Bore× stroke(mm)
93× 102
93× 102
Intake Method
Nature Intake
Nature Intake
Displacement(L)
2.771
2.771
Fuel consumption(g/kw. h)
≤ 215
≤ 215
Cooling starting method
Electric start
Electric start
Engine manufacturer
Foton Group
Foton Group
ALTERMATOR
StamfordModel
184F
184G
Alternator manufacturer
stamford
stamford
Rated power(kVA)
25
30
Rated currency(A)
36.1
43.3
Rated voltage(V)
230/400
230/400
Power factor(cosØ )
0.8(Lagging)
0.8(Lagging)
Phase / Rotary speed
3-phase, 1500rpm
3-phase, 1500rpm
Excitation
Self-exciting
Self-exciting
Voltage regulation
Automatic
Automatic
Net weight(Silent type)(kg)
750
810
Packing size(silent type)L× W× H(mm)
1850*780*950
1850*780*950
