30kVA Diesel Generator:
Silent Type
30kVA Generator:
Professional OEM Factory
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Basic Diesel Generator
Output Type:
AC Three Phase
Product Description
JIUAN Diesel Generator Set Advantage: · 50hz@1500rpm or 60HZ@1800rpm all are available · AVR delivers non fluctuating power · Panel type digital control panel · 12 Volt / 24 Volt electric starter ensures easy starting · Low oil pressure shut down system · Low fuel cut out protection · Low water cut out engine protection · Enclosed structure ensures quieter operation · Alternator (Dynamo) excitation mode brushless self excitation · Three-phase output meets differing requirements · Four Cylinder, four stroke, water cooled diesel engine · 8 hours running @ full load on a single tank of fuel · Dual access doors for easy maintenance · Optional automatic or manual transfer switches available · ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option · Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers · Noise Level (65-70dBA @ 7m) · All ratings are at sea level
After-sales Service: 1 year or 1800 running hours subject to the earlier one. 24 hours after-sales contact number:0086 18520604611
* Canopy for Choice 1. Silent type (75- 80 dB(A) at 7 meters) 2. Super Silent type (65-70 dB(A) at 7 meters ) 3. Open type 4. Trailer type (mobile) 5. Container Type 6. Parallel System

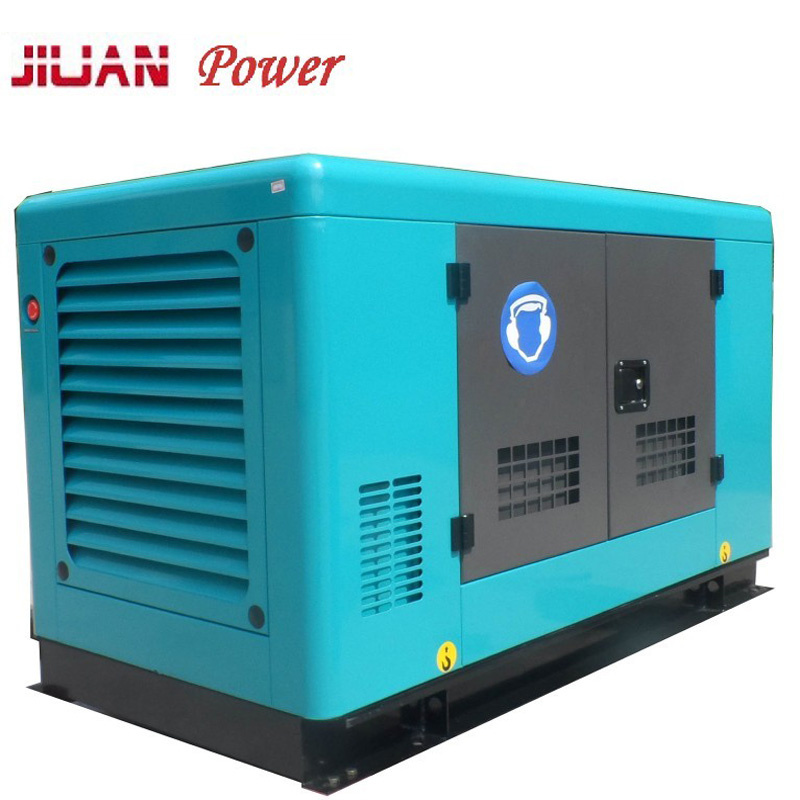

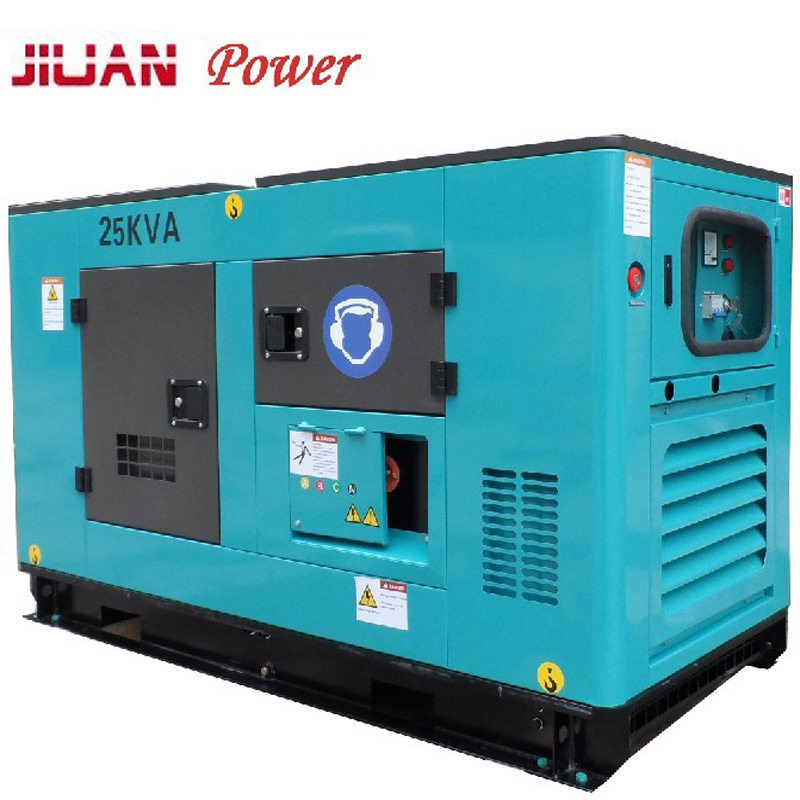

Generator Photos Details:
JIUAN Certificate SGS AUTHORIZED:
Cummins Generator MODEL
CD-C30KVA 24KW
Powered by Cummins Engine
Prime Power (50HZ)
20KW/25KVA
Standby Power (50HZ)
24kw/30KVA
Power Factor
0.8 (Lagging)
Phase Wires
3-phases 4-Wires
Start Model
Electric
Protection
Low oil-pressure, High water temperature,
Over-speed, Over-current
Engine Model
4B3.9-G1
Cylinders
4
Cylinder Arrangement
L
Bore x Stroke(mm)
102X 120
Compression Ratio
16.5:1
Speed
1500rpm
Cooling Method
Water – cooled
Starting Method
24V DC electrical start
Full Load Diesel Consumption (L/H)
6
Engine Displacement (L)
3.9
Inspiration (L)
Natural
Lube Volume (L)
9.5
Coolant Volume (L)
20
Noise (Db)
≤ 80
Alternator Model
Stamford copy 184F
Alternator Power
24KW/30KVA
Voltage
220/380 V
Protection
IP23
Voltage Regulation
±4%
Insulation Class
H
Voltage Control
AVR
Net Weigh (KGS)
950
Dimensions (L x W x H) mm
2300*1000*1400
Optional
ATS(auto transfer switch)
Auto Battery Charger
Base Fuel Tank (for open type)
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
