Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rotating Shaft: |
Horizontal |
Number Of Blade: |
Three Blade |
Stress Way Of Blade: |
Lift Force |
Product Description
Product description
Use wind energy to generate electricity and charge into storage battery group.
Through the multi-voltages power supply system, the electricity can be changed into DC and AC
Used for illumination, home appliances, communication devices and electric tools.

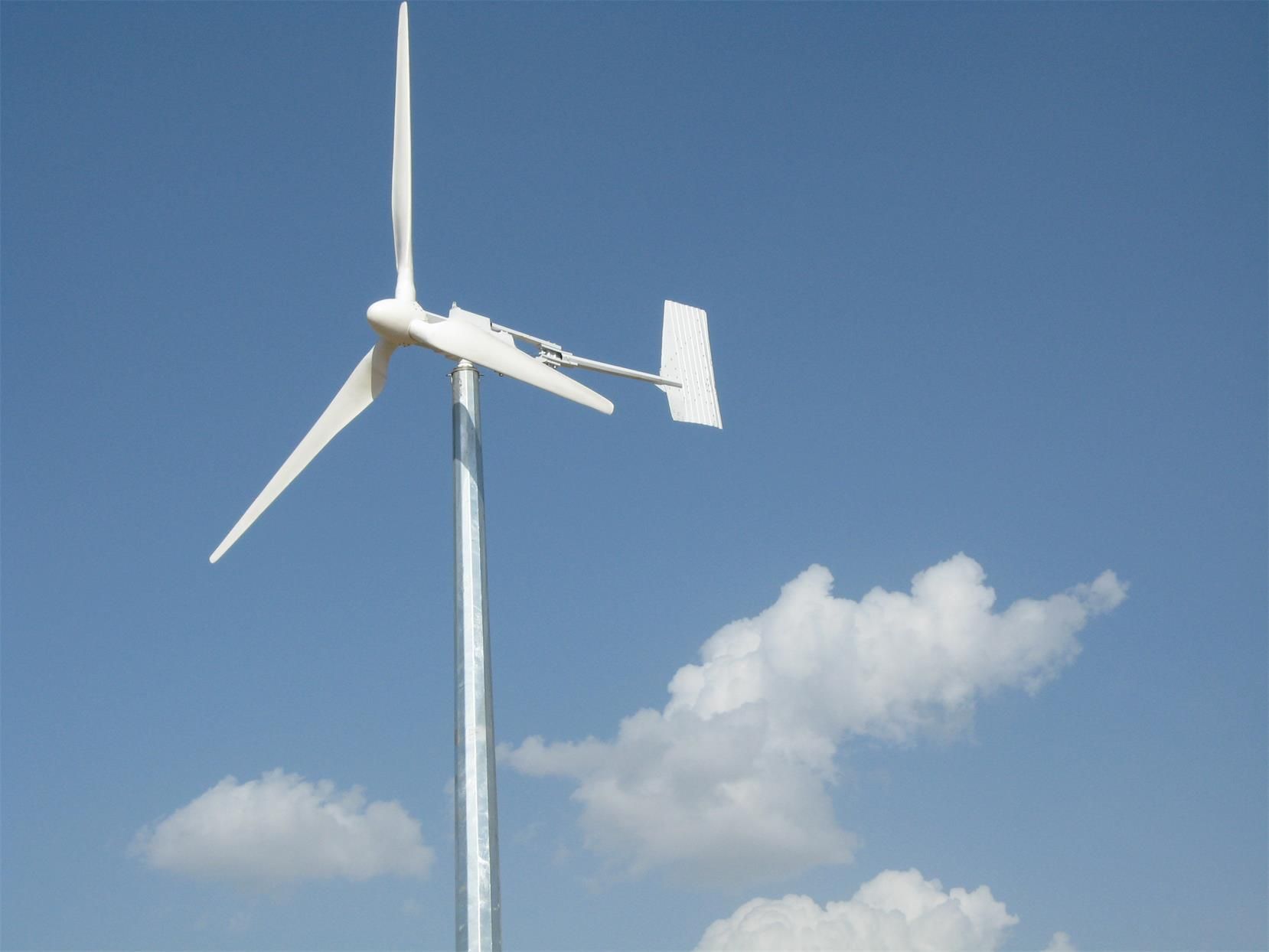

This unit includes blades, blades rotor, rotor, permanent magnet generator, tail vane and hardware.
Plus, we also provide controller, inverter, and tower.
It is great for cottages, sailboats, docks, boathouses and more. Low-noise aerodynamic fiberglass blades feature a weatherproof, industrial-strength design.
Details:
Rotor: Rotor efficiency can reach 42%, noise level is less than 65 dB, strict balance adjustment before leave factory.
Generator: Rotor driven directly, low RPM (rotating speed), permanent magnet, Overload rate 150%
Use NdFeB35SH Strong Magnetic materials
Excellent bearing (NSK ), long-lasting grease, run 30, 000 hours without maintenance
Technical data:
Model |
FD2.2- 3.0 |
FD2.5-0.5 |
FD2.8-1.0 |
FD3.2-2.0 |
FD4-3.0 |
FD5.4-5 |
FD8-10 |
FD10-20 |
Rated power |
300w |
500w |
1kw |
2kw |
3kw |
5kw |
10 kw |
20kw |
Rotor diameter (m) |
2.2 |
2.5 |
2.8 |
3.2 |
4 |
5.4 |
8 |
10 |
Blade quantity |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
Start-up wind speed (m/s) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
Working wind speed (m/s) |
3.0-20 |
3.0-20 |
3.0-20 |
3.0-20 |
3.0-25 |
3.0-25 |
3.0-30 |
3.0-30 |
Survived wind speed (m/s) |
35 |
35 |
40 |
40 |
40 |
40 |
45 |
45 |
Start torque (n/m) |
0.5 |
0.8 |
1.5 |
2 |
3 |
4.5 |
7.5 |
10 |
Rated wind speed ( m/s) |
8 |
8 |
9 |
9 |
10 |
10 |
12 |
12 |
Max power (w) |
500w |
750w |
1.5kw |
3kw |
4.5kw |
7.5kw |
17kw |
30kw |
Rated rotate speed ( rpm) |
600 |
550 |
470 |
430 |
300 |
260 |
200 |
200 |
Blade material |
Fiberglass –reinforced Plastic |
Working voltage ( v) |
DC12~48V AC 110~220V |
DC24~300V
AC 110~220V |
DC48~360V
AC 110~380V |
DC240~500V
AC 110~380V |
Generator Type |
PM ,3-phase, AC |
Speed regulation method |
Electromagnetic brake + yawing |
Stop method |
Electromagnetic brake + manual |
Wind turbine Main body weight (kg) |
40 |
45 |
75 |
90 |
260 |
360 |
1300 |
1400 |
Guyed wire tower weight (kg) |
67kg/ 6m |
67kg/ 6m |
72kg/ 6m |
77kg/ 6m |
255kg/ 8m |
265kg/ 9m |
/ |
/ |
Independent tower weight (kg) |
230kg/ 8m |
237kg/ 6m |
358kg/ 8m |
358kg/ 8m |
880kg/ 9m |
1000kg/ 10m |
3200kg/ 18m |
3350kg / 20m |
Yaneng is manufacturer which produces small wind power turbine generator system and controlling system, wind and solar hybrid power system. The company has passed certificate of ISO 9001 and CE.
Products characterised by green energy, environmental protection, ans renewable natural energy.
Main products: 300W-60kw wind turbine, off grid /grid tie controller and inverter, wind tower
