Key Word:
Generator
Gen-Set Model:
C300
Continuous Output(Kw/kVA):
300/375
Diesel Engine Model:
Kta19-G2
Engine Characters:
Water-Cooled, in Line, 4 Stroke, Direct Injection
Aspiration:
Turbocharged and After Cooled
Bore X Stroke(Mm):
159X159
Piston Speed(M/S):
7.9
Alternator Model:
Yhg314f
Power Efficiency:
95%
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Self-Starting Diesel Generator
Output Type:
AC Three Phase
Product Description

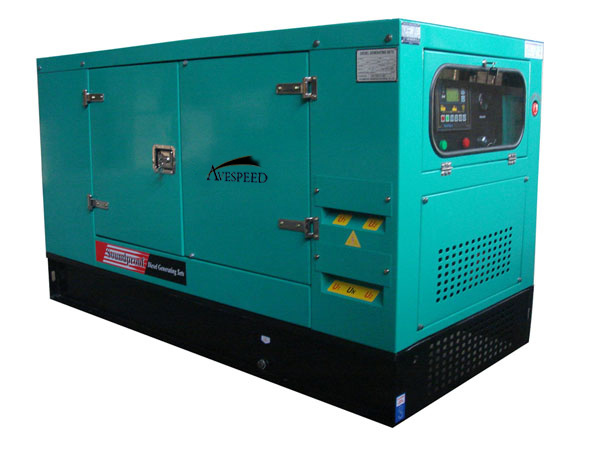

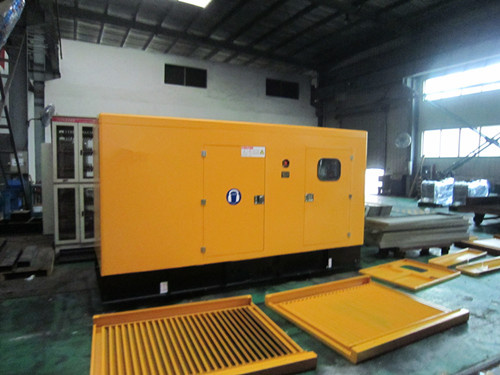

300kw Soundproof Diesel Generator Set
Soundproof gen-set characteristics:
1. Highly correction resistant construction; 2. Body made from special treated steel sheet; 3. Stainless steel or cast aluminum locks and hinges; 4. Zing plated or stainless steel fasteners; 5. 2. 5mm thick Sheet treated by grit blast Sa 2 1/2; 6. Two pack of epoxy paint system.
Excellent access for maintenance:
Full length extra wide doors on each side. Doors top hung and supported by gas struts. Op hinged doors provide a shelter when open. Lube oil and cooling water drains piped to exterior of the canopy.
Security and safety:
Control panel viewing window to easily view status of generating set. Emergency stop button mounted externally. Cooling fan and battery charging alternator fully guarded. Exhaust silencing systems totally enclosed for operator safety.
You must also like these soundproof disel generator sets:
Product packages: Export wooden case (standard) or Plywood case (optional)
Our contact informations: BEIJING AVESPEED NEW ENERGY GROUP CO., LTD Tel: 86-10-52496830 Mobile: 86-18501305665(Mr. Bob Wu) 86-18301421631(Ms. Cathy Su) Fax: 86-10-84829705 Website: Http: //www. Avespeed. Com
Gen-set model
C300
C360
C400
C500
C600
C800
Continuous Output(KW/kva)
300/375
360/450
400/500
512/640
600/715
800/1000
TECHNICAL DATA
Diesel engine model
KTA19-G2
KTA19-G3
KTA19-G4
KTA38-G
KTA38-G2
KTA38-G5
Engine Characters
Water-cooled, in line, 4 stroke, direct injection, Wet cylinder liner, 1500rpm
Constant Output(KW)
336
403
44
560
664
880
Standby Output(KW)
369
448
503
616
731
970
Aspiration
Turbocharged and after cooled
Bore x Stroke(mm)
159x159
Cubic Capacity(Liters)
19
38
Piston Speed(m/s)
7.9
Compression Ratio
14.5:1
13.9:1
Cooling System Volume(L)
91
196
202
Max. Water Temperature
10 0 ºC
Speed Characteristic
The Speed stability bandwidth ≤± 0.25%. The steady governing rate1%
Fuel Consumption
≤ 215g/kw.h
Lube Consumption(Prime)
≤ 1.36g/kw.h
Radiated Heat to Ambient (KWm)
50
58
64
96
101
125
Heat Rejection to coolant(KWm)
206
247
240
389
407
539
Heat Rejection to Exhaust (KWm)
239
263
319
540
511
544
Fan Cooling air Flow(m3/h)
29448
35280
103957
109530
Intake Air Flow (l/s)
432
486
532
802
850
1140
Exhaust Gas Flow(m3/h)
4298
4842
5162
8071
8632
1098
Exhaust Temperature (ºC )
524
528
538
541
499
Exhaust Back Pressure
10Kpa(Maximum)
ALTERNATOR MODEL
YHG314F
YHG354C
YHG354D
YHG404D
YHG404E
YHG404G
Continuous Output(KW/kva)
304/380
360/450
400/500
5500/625
600/750
800/1000
Power Efficiency
95%
Voltage Regulation
± 1.0% with 4% engine governing
± 0.5% with 4% engine governing
Waveform Distortion
No load ≤ 1.5% and non-distorting balanced liner load ≤ 5%
THF/TIF
<2% / <5
Fan Cooling Air Flow(l/s)
486
1035
1614
