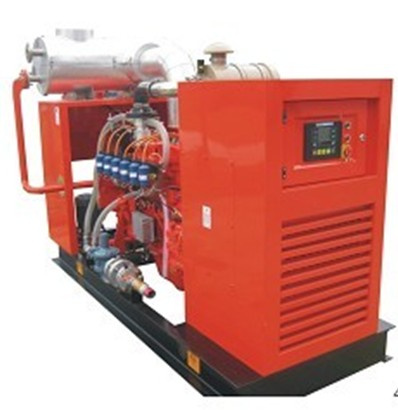

Introduction of natural gas generator 300kw
1. Function: Has protections of when over current, over voltage, contrary power, double over speed, low oil pressure and high water temperature, etc.
2. Engine: Natural gas,; Lubrication system; Cooling system; Intake&exhaust system, filter system, 24V electric start motor and exchange charging.
3. Alternator: We can supply with Marathon, Stanford and Domestic Stanford.
4. Optional system: Engine protection module, parallel equipment, common base oil tank, electric governor, automatic start, automatic transfer switch(ATS), remote-control equipment, closed frame type, rain-pfroof sheld, and trailer type.
Genset | Fuel | Natural gas |
| Genset Model | WTQ300GF |
| Prime Rating | kW | 300 kW |
| kVA | 375 kVA |
| Standby Power | kW | 330kW |
| kVA | 421.5kVA |
| Gas consumption | 0.32Nm 3 / KW. h |
Engine | Engine Model | Cummins K19 |
| Bore*Stroke(mm) | 6-159*159 |
| displacement(L) | 18.9 |
| Starting Method | 24 VDC Electric Start |
| Intake Method | Turbocharged & Intercooled |
| Fuel Control | Oxygen sensor closed loop control |
| Ignition Control | Electronically controlled independent cylinder high-energy ignition |
| Speed Control | Electronic Speed governing |
| rpm Rated Speed | 1500 |
| Cooling Method | Closed- Loop water cooling |
| Alternater | Alternater Model | EG315M-300N |
| Rated Voltage | 230/400 |
| Rated Current | 541.2 |
| Rated Frequency | 50 or 60 Hz |
| Supply Connection | 3Phases 4 Lines |
| Rated Power Factor | 0.8(Delay) |
Spec | Net weght kg | 3000 |
| Dimension (L× W× H)mm | 3320× 1640× 2230 |
