South America,Southeast Asia,Africa,Mid East,Eastern Asia
Gas Source:
Natural Gas

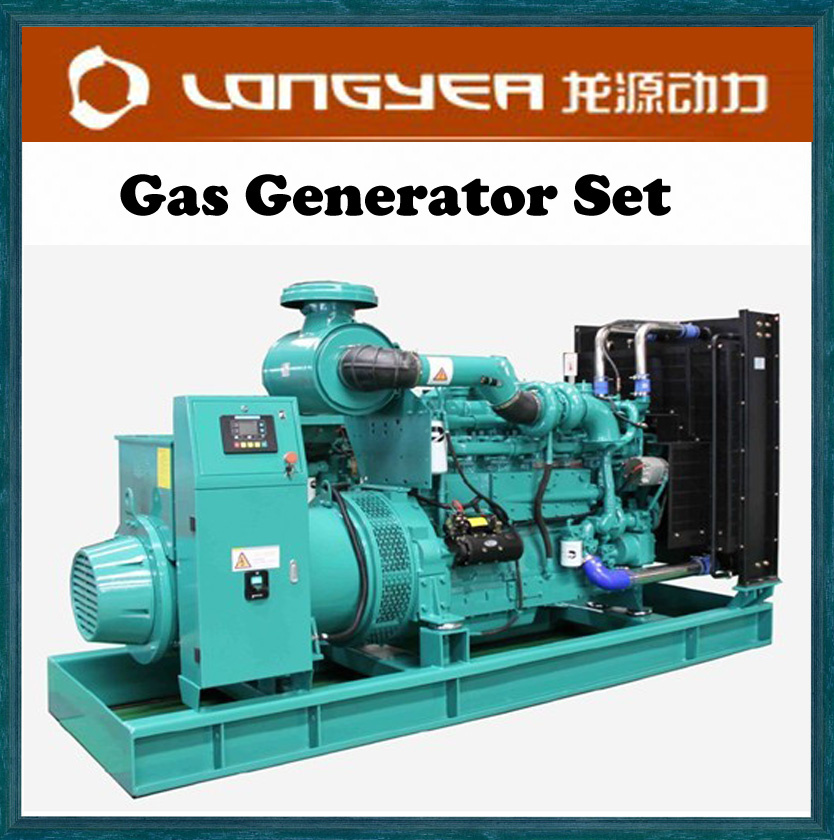

Product Description
1. Cummins Engine
2. Marathon Alternator
3. ATS for option
LYQ220G
LYQ300G
LYQ600G
LYQ800G
PRIME POWER(KW)
200
280
550
720
STANDBY POWER(KW)
220
300
600
800
RATED VOLTAGE(V)
400
400
400
400
FREQUENCY(HZ)
50
50
50
50
GAS CONSUMPTION
0.3 M³ /kWh
0.3 M³ /kWh
0.3 M³ /kWh
0.3 M³ /kWh
CYLINDER QUANTITY/ARRANGMENT
6 in line
6 in line
12V
16V
BORE AND STROKE
140 x 152mm
159 x 159mm
159 x 159mm
159 x 159mm
DISPLACEMENT
14L
19L
38L
50L
COMPRESSION RATION
10: 1
10: 1
10: 1
10: 1
INTAKE AIR
BOOST AND AFTER-COOLER
BOOST AND AFTER-COOLER
BOOST AND AFTER-COOLER
BOOST AND AFTER-COOLER
DIMENTION
3000 x 1150 x 1750
330 x 1550 x 2100
4800 x 1900 x 2560
5500 x 2300 x 2600
COOLING MODE
CLOSED WATER CIRCULATION
CLOSED WATER CIRCULATION
CLOSED WATER CIRCULATION
CLOSED WATER CIRCULATION
DRY WEIGHT OF GENSET
2700kg
3650kg
6800kg
11000kg
Chongqing Longyea Power Equipment Co., Ltd. is situated at Jingkou Industrial Park in Shapingba District, Chongqing, covering an area of 20, 000 square meters. The investment having been made is over US$5, 000, 000.
The company is a hi-tech enterprise engaged in diesel power genset research & development, production & marketing, and authorized to be an OEM Factory of Generator Set by the USA Cummins (China) Investment Co., Ltd. And Chongqing Cummins Engine Co., Ltd.
The Company has advanced measuring & cheecking devices and specialized technical experts. The onshore and marine power gensets manufactured are widely uesd in Army, Ships, Telecommunications, Hotel, Building, Field Construction and Industrial Electricity etc. Power range covers from 20KW(25kVA)--2400KW(3000kVA).
Depending on the increasing technical advantages of Cummins, Chongqing Longyea Power Equipment Co., Ltd. has already been creating high values for the customers, and adhering to a business philosophy of good faith and pursuing excellent quality. Longyea associates are expanding domestic and international markets with indomitable spirit daring to achieve new forward leap in development of the company.
