Prod Model: |
2500E |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rating Power: |
1.8kw |
Max Power: |
2kw |
Type: |
Basic Diesel Generator |
Installation Method: |
Portable |
Stroke: |
Four Stroke |
Cooling Method: |
Air Cooled |
Output Type: |
AC Single Phase |
Product Description
2KW Diesel Genset KAIAO Electric Genset Small Home Use generator 2500E
Product Description
* New AVR(Automatic Voltage Regulator)
stablizes the output power
* Low oil level alarming system will automatically
stop the generator when lube oil is less than the set value
* A traditional open frame generator with a rugged and durable frame
WUXI KAIAO POWER MACHINERY CO., LTD |
Tel:+8651085576899 Fax:+8651085582186 |

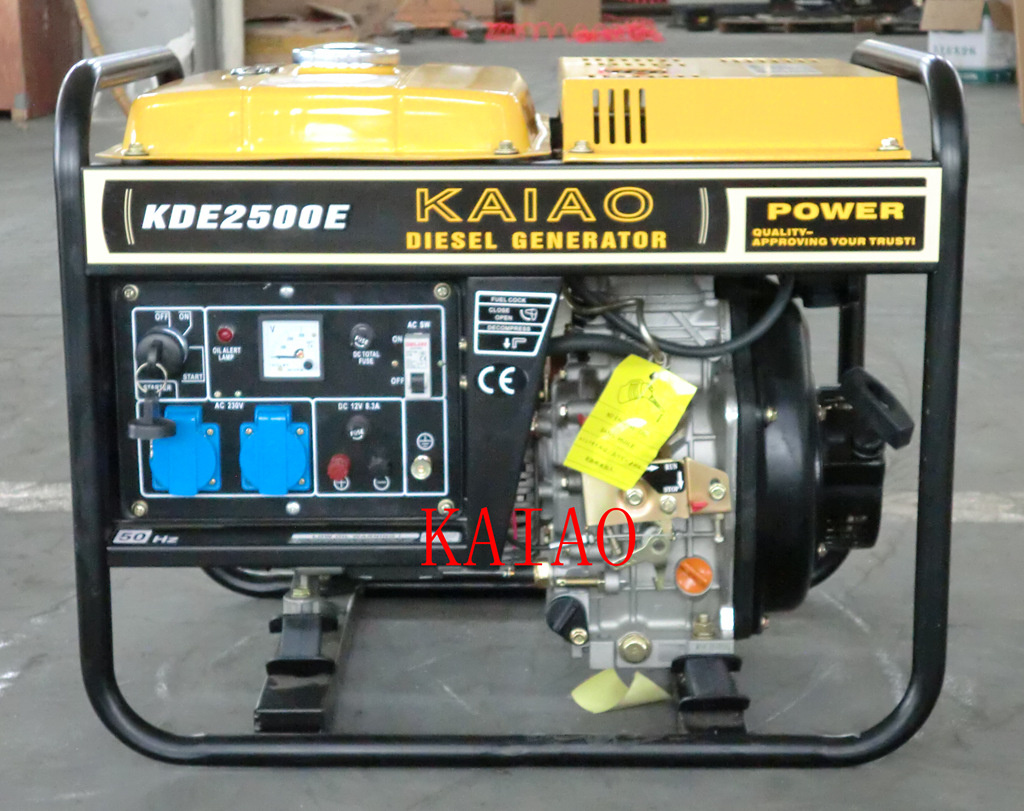

2KW Diesel genset KDE2500E |
Model | KDE2500E |
Frequency (Hz) | 50 | 60 |
Output power (KVA) | 1.7 | 2 |
Max. Power(KVA) | 2 | 2.2 |
Voltage (V) | 115/230 | 120/240 |
Current (A) | 14.9/7.4 | 16.7/8.3 |
Engine speed (r/min) | 3000 | 3600 |
Phase | Single |
Power factor(cosφ) | 1 |
Excitation system | Self-excited constant voltage |
Noise level (7m) | DB (A): 77 |
Fuel tank capacity (L) | 12.5 |
Structure | Open-frame |
Panel | Ordinary |
Outputsocket | Two |
Output terminal post | No |
DC12V output | Terminal post |
Engine Model | KA170FE |
Bore*stroke (mm) | 70 *55 |
Displacement (L) | 0.211 |
Power (KW) | 2.5/3000 | 2.8/3600 |
Fuel consumption rate (g. KW/h) | 280.2 | 288.3 |
Compression ratio | 20 |
Lubrication system | Spring |
Engine starting system | Electric starter |
Diesel oil model | Summer: 0#, winter: -10# |
Lube oil model | SAE10W-30 (above CD grade) |
Lube oil capacity (L) | 0.75 |
Battery capacity(V-AH) | 12V-36Ah |
Net weight KG | 60 |
Dimension(L*W*H) | 680×530×590 |
Wuxi Kaiao Power Machinery CO.,LTD is located in the beautiful and prosperous Hudai town of Wuxi city, China .8 years history, KAIAO has a strong research and development team, a high energy management team and 3 production facotries. AKAIO have so many different models of products. Most have achieved internationally recognized safety standard including CE, ISO etc.
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
