Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Single Phase
Product Description

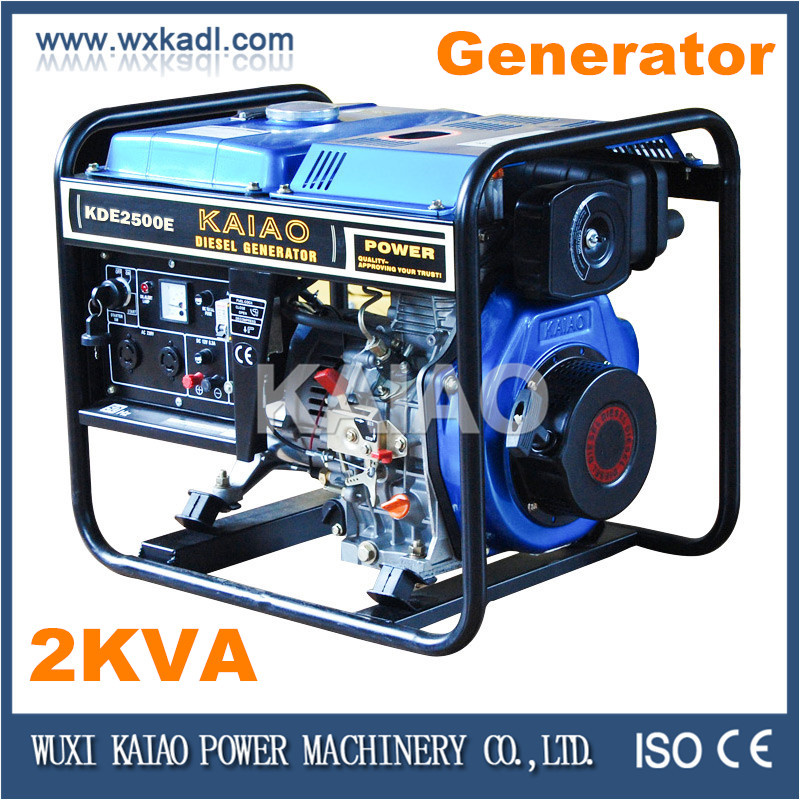

2KVA strong KAIAO Diesel Generator Key Starting CE standard
* Very steady power output New AVR(Automatic Voltage Regulator)stablizes the output power * Low oil level alarming system will automatically stop the generator when lube oil is less than the set value * A traditional open frame generator with a rugged and durable frame
WUXI KAIAO POWER MACHINERY CO., LTD
Contact person:Woody
Diesel generator KDE2500E
Model
KDE2500E
Frequency (Hz)
50
60
Output power (KVA)
1.7
2
Max. Power(KVA)
2
2.2
Voltage (V)
115/230
120/240
Current (A)
14.9/7.4
16.7/8.3
Engine speed (r/min)
3000
3600
Phase
Single
Power factor(cosφ)
1
Excitation system
Self-excited constant voltage
Noise level (7m)
DB (A): 77
Fuel tank capacity (L)
12.5
Structure
Open-frame
Panel
Ordinary
Outputsocket
Two
Output terminal post
No
DC12V output
Terminal post
Engine Model
KA170FE
Bore*stroke (mm)
70 *55
Displacement (L)
0.211
Power (KW)
2.5/3000
2.8/3600
Fuel consumption rate (g. KW/h)
280.2
288.3
Compression ratio
20
Lubrication system
Spring
Engine starting system
Electric starter
Diesel oil model
Summer: 0#, winter: -10#
Lube oil model
SAE10W-30 (above CD grade)
Lube oil capacity (L)
0.75
Battery capacity(V-AH)
12V-36Ah
Net weight KG
60
Dimension(L*W*H)
680×530×590
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
