Rated Voltage:
110V, 220V, 230V, 240V, 380V
Product Description
Short Feature:

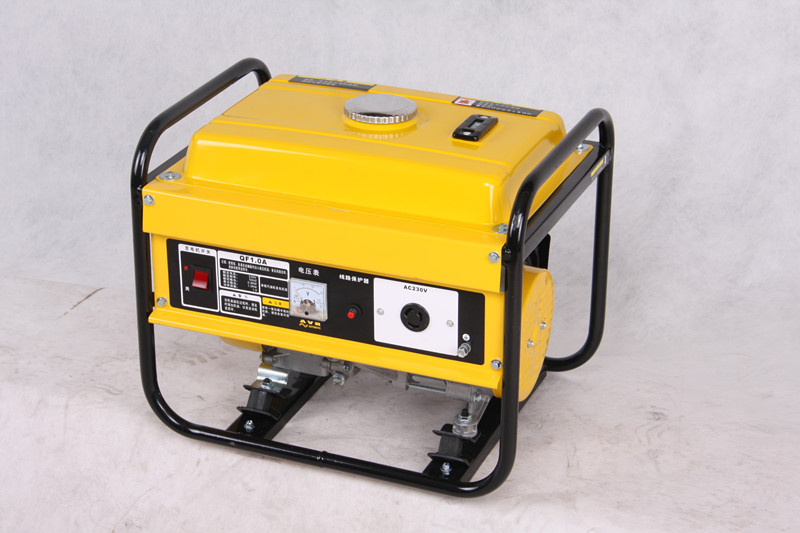

1)2.8kw gasoline generator
2)Easy operation, Low noise, and maintenance.
3)You can choose electric start or recoil start.
Application:
A. Municipal engineering
B. Industrial architecture.
C. Water treatment engineering.
D. Fire-fighting or mining industry.
Generator
Model
HT3600
Rated Voltage(V)
110/220/240/380/230
Maximum AC output(Kw)
3.1
Rated AC output(KW)
2.8
Condition
Brush, single or three phase
Rated frequency(Hz)
50/60
DC output
12V/8.3A
Power frequency
1
Voltage regulate
Automatic voltage regulator
Engine
Engine model
170F
Engine type
OHV250 Tilt single cylinder, forced air-cooling, 4stroke gasoline engine
BorexStoke(mm)
70x54
Starting system
Recoil/Electric start
Ignition system
Transistor magneto
Oil capacity(L)
15
Oil consumption(L)
0.6
Size
Dimension(mm)
515x415x460
Packing
carton
NW/GW(kg)
44/46
20GP/40HQ
213/524
