Cummins Engine:
Silent Diesel Generator
Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

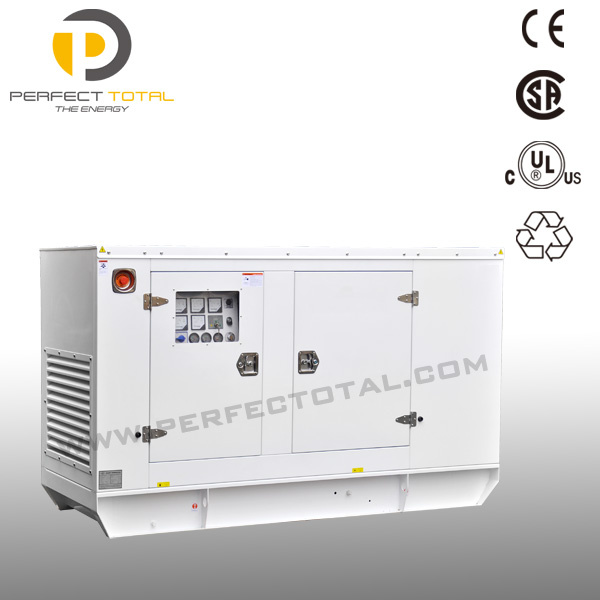

275kw/344kva power generator
Quick Details
Place of Origin:Zhejiang, China (Mainland)
Brand Name:perfectotal
Model Number:275EPTC
Output Type:AC Three Phase
Speed:1800
Frequency:60hz
Rated Power:275kw/344kva
Rated Voltage:220v/380v
Rated Current:523A
Product Name::275kw/344kva power generator
Engine brand::cummins NTA855-G1B
Alternator Brand::Stamford/ Leory Somer/ MECC
Noisy Level::65dba
Fuel tank Capacity::510 liters
Bottom Forklift::Yes
ATS::Yes
Frequency::50Hz or 60Hz
Steel::Galvanized then powder coating
Controller::DEEPSEA
Specifications
275kw/344kva power generator cummins engine/stamford alternator 60hz,220v/380v,3 phase 65 dba
Rated power(Kw/kva)
275/344
Frequency(Hz)
60
Pahse
3
Voltage(V)
220/380
Current(A)
523
Fuel capacity(L)
510
Fuel consumption(L/Hour)
69.5
Dimension (mm)
L
4000
W
1350
H
2100
Weight(kg)
3750
Noice level for silent type(Db/7m)
65
Engine
Model
NTA855-G1B
Prime power(kw/kva)
275kw/344kva
Cylinders
6
Bore×stroke(mm)
140x152
Intake Method
Natural intake
Displacement(L)
14
Speed governing
Mechanical governor
Cooling starting method
Water cooling
Alternator
Model
HCI444D
Rate power(kw/kva)
275kw/344kva
Insulation
H
Alternator
IP23
HANGZHOU PERFECT TOTAL MACHINERY Co., Ltd. Built at 2014 Year and we have 14 years experience of doing Diesel Generator, Light Tower. We are Specialized in production and sales of diesel generators, super-silent generator, REEFER CONTAINER generator, mobile light tower, plant oil generator, message signs, construction machine, and the development of new products. We have much experience in manufacture and have strong technical strength. All products are of good quality and we are able to offer the efficient service, therefore the products are popular in our clients and enjoy and excellent reputation. We have big market in Dubai, Australia, Canada, USA, Malaysia, ...etc market. Offering OCEA power system equipment and high-quality service to over 200contries. We can do Generator power ranges from 5kVA to2200kVA. According to the functions, we offer common type (standard), automation, trailers, Van, low noise, and other series. We can design and manufacture the special specification and models in accordance with the customers' requirements. We would like to invite reliable partner join us!
