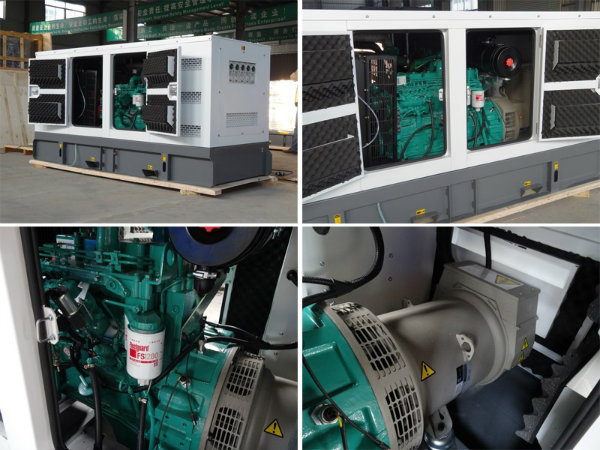

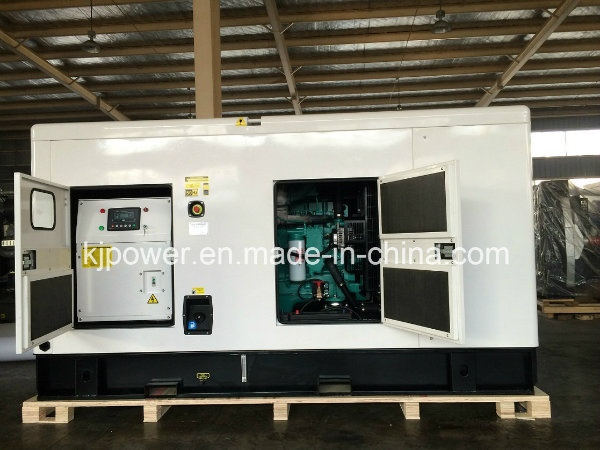

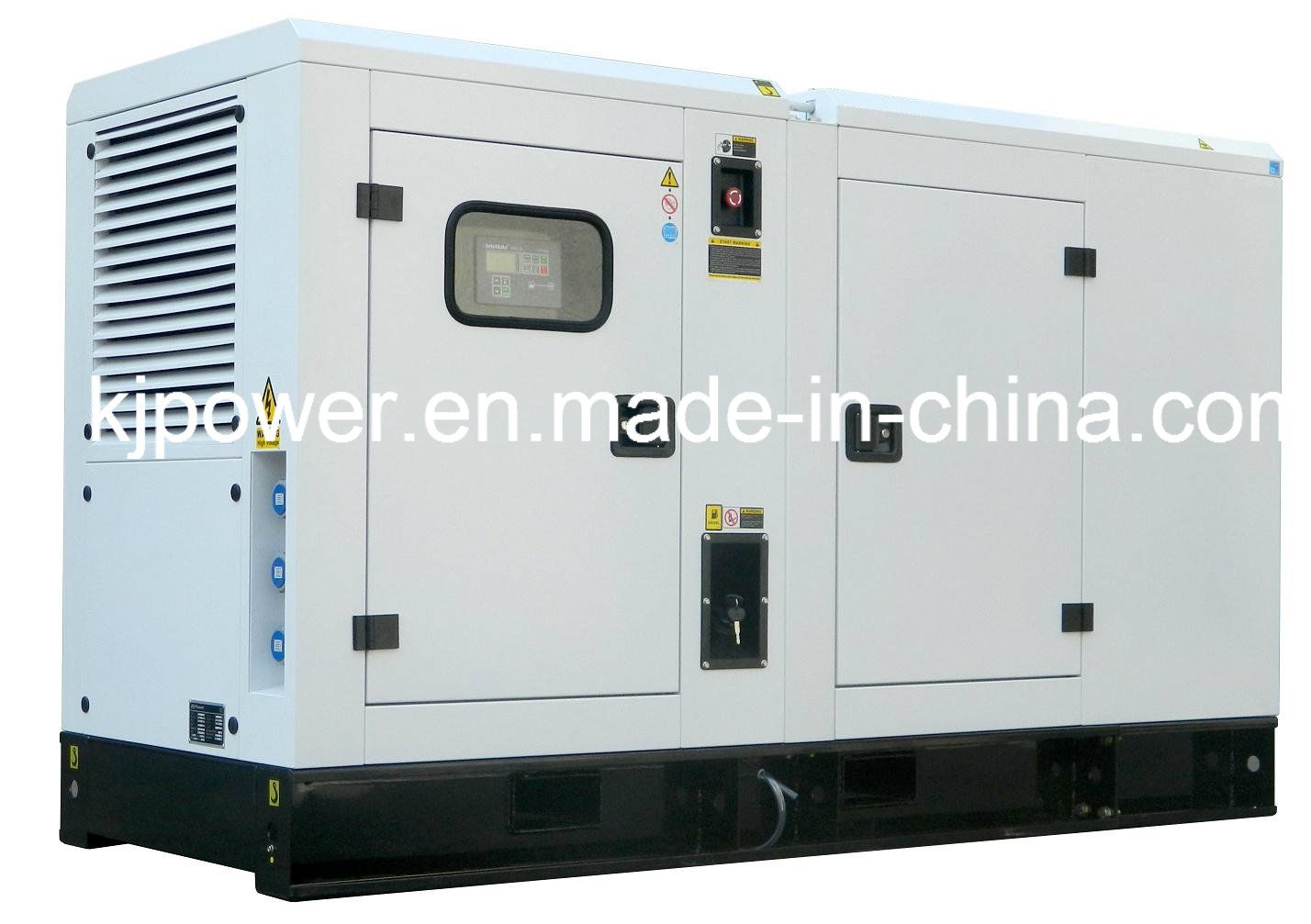

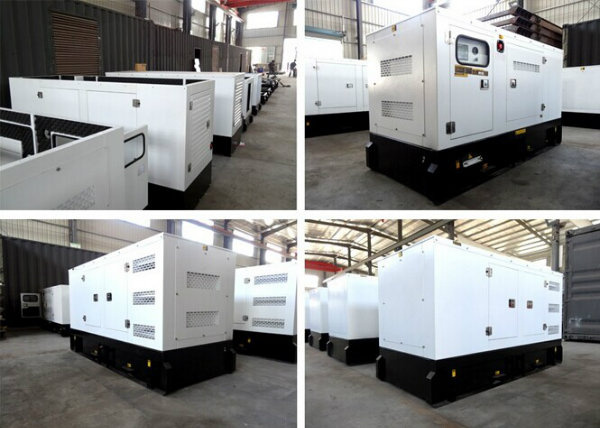

25kVA-250kVA Silent Diesel Generator Powered by Cummins Engine
Price: |
US $ 5000-20000/Set |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Product Description-25kva-250kva Silent Diesel Generator Set with Cummins Engine
1.Powered by Cummins Engine2. With Stamford / Leroy Somer / Marathon Alternator3. With CHINT / ABB MCCB & Electronic Components4. Electric Start with Battery5. Base Integrated Fuel Tank6. ATS, Deepsea / ComAp / Smartgen Controller7. Comply with ISO9001/CE 8. After-sale Services Control SystemsStandard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.Engine*Heavy duty diesel engine*Four stroke, water cooled*12V and 24V stater and charge alternator*Cooling radiator and fan*Maintenance free battery including ract and cable*Flexible fuel connection hoses and manual oil sump drain valve*Exhaust silencerAlternator*Brushless, single bearing, flexible disc*Insulation class: H*Protection class: IP23*Self-exciting and Self-regulationCanopy*All canopy designed with modular principles*All metal canopy parts painted by electrostatic polyester power paint*Soundproof design ensure that the noise level be controlled in small scope*Convenient to lift and move*Easy to maintenance and operate Base Frame*Base frame including position for forklift and crane*Integral fuel tank*Daily fuel tank continuously supply for 8-24 hours*Fuel tank easy to maintain and clean*Anti-vibration pads are flexed between engine and alternator. Control System*Control, monitor and protect the Generator Set including:*High water temperature*Low oil pressure*Over and under speed*Over current*Under/Over generator voltage*Start and stop failure*Low and high battery voltage*Charge fail*Emergency stop Genset Model | Prime Power | Standby Power | Engine Model | Cylinder | Bore×Stroke | Aspiration | Disp. | Alternator | Dimension | Weight |
KVA/KW | KVA/KW | mm | L | KaiJie | Stamford | L×W×H(mm) | kg |
KJ-C28 | 25 / 20 | 27.5 / 22 | 4B3.9-G1 | 4L | 102×120 | Natural | 3.9 | KTFW20 | PI144E | 1800×750×1350 | 800 |
Kj-C30 | 27.5 / 22 | 30 / 24 | 4B3.9-G2 | 4L | 102×120 | Natural | 3.9 | K-TFW22 | PI144F | 1800×750×1350 | 820 |
KJ-C41 | 40 / 32 | 44 / 35 | 4BT3.9-G1 | 4L | 102×120 | Turbo. | 3.9 | K-TFW32 | PI144J | 1800×750×1350 | 950 |
KJ-C65 | 60 / 48 | 66 / 52.8 | 4BTA3.9-G2 | 4L | 102×120 | Turbo.&Intercooled | 3.9 | K-TFW50 | UCI224E | 1800×750×1450 | 980 |
KJC100 | 94 / 75 | 103 / 82 | 6BT5.9-G1 | 6L | 102×120 | Turbo. | 5.9 | K-TFW75 | UCI274C | 2200×800×1450 | 1200 |
KJ-C110 | 100 / 80 | 110 / 88 | 6BT5.9-G2 | 6L | 102×120 | Turbo. | 5.9 | K-TFW80 | UCI274C | 2200×800×1450 | 1200 |
KJ-C140 | 125 / 100 | 137.5 / 110 | 6BTA5.9-G2 | 6L | 102×120 | Turbo.&Intercooled | 5.9 | K-TFW100 | UCI274D | 2350×850×1500 | 1500 |
KJ-C160 | 135 / 108 | 150 / 120 | 6BTAA5.9-G2 | 6L | 102×120 | Turbo.&air to air cooled | 5.9 | K-TFW110 | UCI274E | 2450×850×1500 | 1600 |
KJ-C200 | 160 / 128 | 176 / 140 | 6CTA8.3-G2 | 6L | 114×135 | Turbo.&Intercooled | 8.3 | K-TFW130 | UCI274F | 2500×850×1600 | 1800 |
KJ-C220 | 175 / 140 | 200 / 160 | 6CTA8.3-G2 | 6L | 114×135 | Turbo.&Intercooled | 8.3 | K-TFW150 | UCI274G | 2600×900×1600 | 1900 |
KJ-C250 | 200 / 160 | 220 / 176 | 6CTAA8.3-G2 | 6L | 114×135 | Turbo.&air to air cooled | 8.3 | K-TFW160 | UCI274H | 2600×900×1600 | 2000 |
KJ-C260 | 225 / 180 | 250 / 200 | 6LTAA8.9-G2 | 6L | 114×145 | Turbo.&air to air cooled | 8.9 | K-TFW180 | UCD274J | 2700×1000×1600 | 2100 |
KJ-C280 | 250 / 200 | 275 / 220 | 6LTAA8.9-G2 | 6L | 114×145 | Turbo.&air to air cooled | 8.9 | K-TFW200 | UCD274K | 2700×1000×1600 | 2200 |
Prod Model: |
KJ-C44 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
Cummins |
Alternator: |
Kaijie, Marathon, Leroy Somer, Stamford |
Frequency: |
50Hz, 60Hz for Option |
Rated Voltage: |
400/230V, Various Voltage Available |
Controller: |
Smartgen, Deepsea, Comap |
Optional: |
Silent / Waterproof Canopy, ATS, Parallel System |
Warranty Period: |
1 Year or 1000 Hours Running |
Quality Standard: |
ISO9001 / CE.Soncap |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
