Product Description

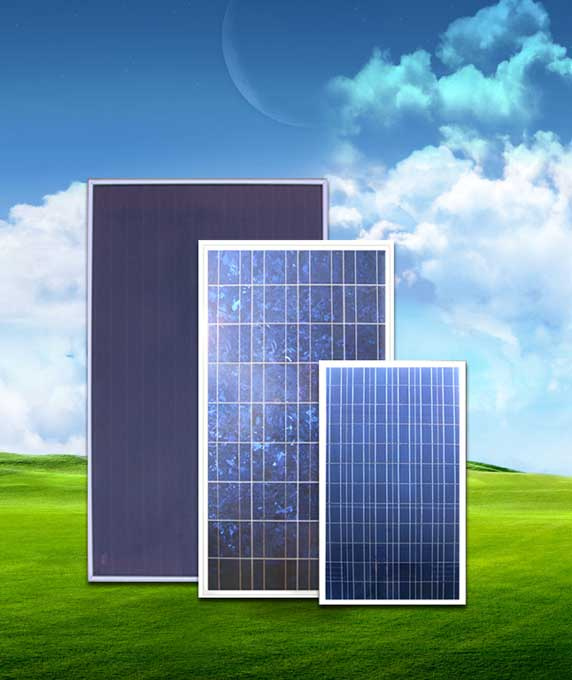

230W POLY SOLAR MODULES
ITEM NO.
BHL-220W
Maximum Power (W)
220
Optimum Power Voltage (V mp)
29.28V
Optimum Operating Current (I mp):
7.52A
Open Circuit Voltage (Voc)
36V
Short Circuit Current (ISC)
8.03A
Cell Efficiency (%)
15.07%
Module Efficiency (%)
13.61%
FF (%)
70-76%
Warranty
90% of 10 years, 80% of 25 years.
Standard Test Conditions
AM1.5 1000W/m² 25 +/-2ºC
Bypass Diode Rating (A)
12
Cable & Connector Type
Pass the CE Certificate
Brand Name of Solar Cells
----Cell
Size of Module (mm)
1640*986*50
Solar Cell
156*156 Poly
Backing (Material)
TPT
Frame (Material Corners, etc.)
Aluminum-alloy
Number of Cell (PCS)
6*10
N/W(KG)
18.96KG
Tolerance Wattage (e.g. + /-5%)
±3%
Front Glass Thickness (mm)
3.2
Surface Maximum Load Capacity
2400Pa
Allowable Hail Load
23m/s, 7.53g
Packing
1*20'
316pcs
1*40'STD
756pcs
Temperature Coefficients of ISC(%) ºC :
0.04
Temperature Coefficients of Voc(%) ºC :
-0.38
Temperature Coefficients of Pm(%) ºC :
-0.47
Temperature Coefficients of IM(%) ºC :
0.04
Shanghai U-light Industrial Co., Ltd., is devoted to the development, production and trade of solar products. We own our professional R&D team and production base. With the quick development of the company, we have exported products to different countries in Asia, Europe, Middle-east, South Africa, and also have sound share in the local market.
Our main solar products include solar panel, solar street light, solar camping lantern, solar road studs, solar lawn light, other solar light, solar water heater, solar water pump, etc.
Inheriting the spirit of everlasting innovating, growing and struggling, people of U-light will continue to play a roll in the development of the solar energy application field while going ahead and working hard right along.
With the high quality products and perfect customer service, we believe we will be your best business partners.
