Product Description

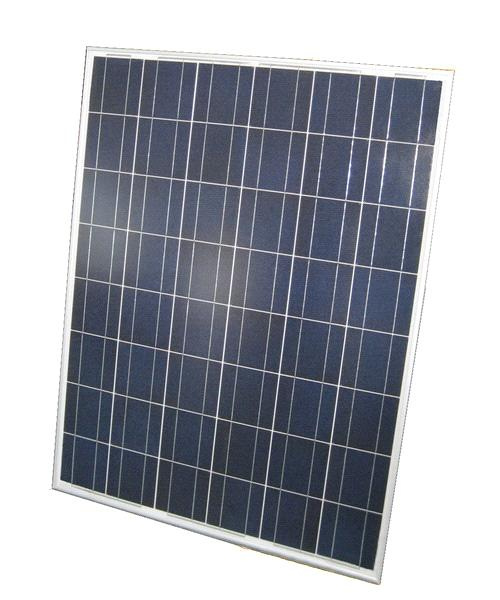

1. Name: 225W(156*156mm, 60cells, ) poly solar module
2. Certification: TUV, MCS, CE, ETL, CEC
3. Maximum Power: 225wp
4. Size of Module(high*wide*thickness): 1650*992*50mm
5. Production Tolerance: ± 3%
6. Maximum Power Voltage(V): 29.15
7. Maximum Power Current(A): 7.72
8. Open circuit Voltage(v): 36.90
9. Short circuit Current(A): 8.30
10. Maximum system voltage: 1000DC
Materials
1. Number of Cells: 60PCS(6*10)
2. Size of Cells(wide and high): 156*156mm
3. Frame: Anodized Alu. Frame
4. Type of junction box: TUV certified Junction box, PV-RH 4mm² , Connectors Class A
Warranty
Warranty: 5 years product warranty and 25 years performance guarantee(90% up to 10 years, 80% up to 25 years. )
ZHEJIANG RDM TECHNOLOGY Co., Ltd. is a professional manufacture to do the solar panel, solar module. We can do all kinds of monocrystalline / polycrystalline(5W-300W) silicon solar modules according to our customer's different requirement. Our company has a productivity of 100MW units in 2010.
We have been trying to become the best PV products manufacturers in China.
We guarantee that our solar module have a plus tolerance 0-3%. We also provide OEM for other photovoltaic module.
The reason why RDM photovoltaic panel is authorized and chosen by the customers is its long-term high stability and low power attenuation. Its main features include:
1) It has passed the IEC 5400PA mechanical-load test and is able to withstand the worst, high load working environment;
2) 18 core quality monitoring points, 30 important quality monitoring points, and 100% of the current and voltage test ensure that it meets the power requirements of the power tolerance 0 ~ +3%;
3) It has passed a number of international certifications and tests (TUV, IEC61215&IEC61730, CE, CEC, RoHS, ISO)
