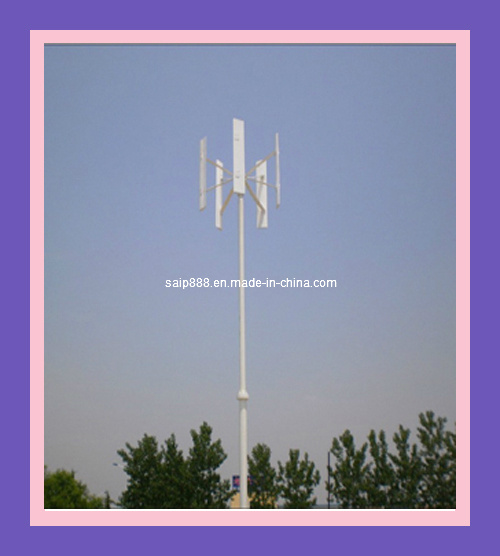

Prod Model: |
SPV-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wind Turbine Type: |
Permanent Magnet Synchronous Generator |
Output Control System: |
Charger Control, Inverter |
Matched Inverter Type: |
Sine Wave |
Blade Quantity: |
6 |
Blade Material: |
Carbon Fiber |
Rated Rotating Rate: |
150(R/Min) |
Yaw Mode: |
Mechanical |
Rated Power(W): |
300W-2kw |
Output Voltage(DC): |
220V |
Start-up Wind Speed(M/S): |
2 |
Number Of Blade: |
Multiple-Blade |
Stress Way Of Blade: |
Resistance |
Rotating Shaft: |
Vertical |
Product Description
1. Fan-driven generator
2. Sine wave
3. High efficiency,
4. Easy installment
5. CE&RoHS
Detailed Description:
1. Adopt high-quality and high-strength permanent materials to ensure high energy conversion efficiency.
2. Adopt high-quality and high-strength aluminum alloy to make the unit light weight and easy installation.
3. The fiber-glass blades have the advantages of great intensity and excellent fatigue resistance.
4. Stainless steel shaft and screws to avoid rust and corrosion
5. And the surface is coated with pollution-free material. Working environmental temperature from -20C-50C.
6. Electromagnetic brake is with the function of over-speed and over-current protection.
Inside the Wind Turbine
Anemometer: Measures the wind spee and transmits to the controller
Blades: Blades to "lift" and rotate.
Brake: Stop the rotor in emergencies.
Controller: Starts up the machine at wind speeds of about 8 to 16 miles per hour (mph) and shuts off the machine at about 55 mph.
Gear box: Connect the low-speed shaft to the high-speed shaft and increase the rotational speeds
Generator: Usually an off-the-shelf induction generator that produces 60-cycle AC electricity
Tower: Towers are made from tubular steel (shown here), concrete, or steel lattice.
power |
300W |
500W |
1KW |
2KW |
3KW |
5KW |
10KW |
20KW |
the diameter of wind wheel |
1.8m |
1.8m |
2m |
2. m |
3.2m |
3.2m |
3.2m |
3.2m |
blades number |
3 |
3 |
4 |
4 |
5 |
5 |
7 |
9 |
blades length |
1m |
1m |
1m |
1m |
1.6m |
1.6m |
1.6m |
1.6m |
rated rotate speed |
150(r/min) |
150(r/min) |
150(r/min) |
150(r/min) |
160(r/min) |
160(r/min) |
160(r/min) |
150(r/min) |
rated wind speed |
7-8m/s |
7-8m/s |
7-8m/s |
7-8m/s |
7-8m/s |
7-8 m/s |
10-11m/s |
12m/s |
start up wind speed |
2m/s |
2m/s |
2.5m/s |
2m/s |
3m/s |
3m/s |
3m/s |
3m/s |
working wind speed |
3-24(m/s) |
3-24(m/s) |
3-24(m/s) |
3-24(m/s) |
3-24(m/s) |
3-24(m/s) |
3-24(m/s) |
3-24m/s |
security wind speed |
40m/s |
40m/s |
40m/s |
40(m/s) |
40(m/s) |
50(m/s) |
50(m/s) |
50(m/s) |
rated power |
300W |
500W |
1KW |
2KW |
3KW |
5KW |
11KW |
21KW |
the max power |
350W |
550W |
1.5KW |
2.5KW |
4.5KW |
6.5KW |
11KW |
21KW |
output voltage(DC) |
220V |
220V |
220V |
220V |
220V |
220V |
220/110V |
380V |
the height of tower |
8m |
10m |
10m |
10m |
10m |
10m |
10m |
14m |
the top part weight |
49kg |
63KD |
73kg |
78kg |
98kg |
102kg |
|
|
battery reference |
12V100ah, 2pc |
12V100ah, 2pcs |
12V100ah, 4pcs |
12v150ah 4pcs |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
