| Prod Model: |
FD10-20KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
20kw |
| Type Of Generator: |
Permanent-Magnet -3phase A. C. |
| Blade Diameter: |
11.0m |
| Blade Material: |
FRP (Fiber Glass Reinforced*3) |
| Rated Rotor Speed: |
120r/Min |
| Output Voltage: |
DC380v/AC380v/50Hz |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
| Rotating Shaft: |
Horizontal |

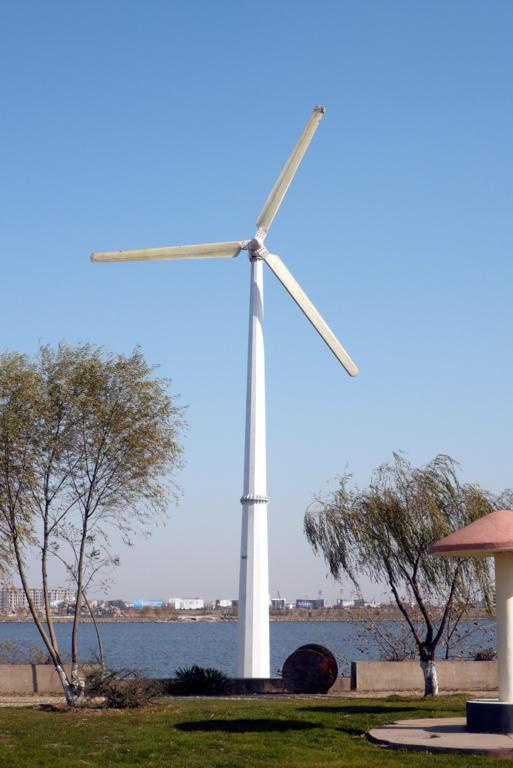

Product Description
1) Alluminum Alloy material, lighter and beautiful
2) CE &ISO9001 approved
3) with slip ring and carbon brush to avoid twist
4) guy wired tower or free stand tower according the clients' requirement.
5) has exported to at least 80countries and areas.
3. Technical data,
FD10-20KW
A. Diameter of the wind wheel: 11m
B. method of the adjustment: Auto adjust to the face wind angle.
C. Rated wind speed: 10m/s
D. Rated voltage: 380v
E. Rated power: 20kw
F. Generator: 3 phases, permanent-magnet generator
G. Rated rolling speed: 120 R/ min
H. Stop wind speed: 20m/s
I. Start up wind speed: 3m/s,
J. Over wind speed protection: Self adjust itself to the facing wind angle and do not exceed the rated rolling speed.
K. Method of change the direction: Inspected by anemoscope and dogvane. The rolling speed controller outputs the deviating signal.
L. Height of the tower: 15m
M. Stop the machine: Voltage 435v, temperature 120 degree Celsius, wind speed over 20 metre/ second, stop automatically.
N. Program display: Controller display wind speed, voltage, current and alarm position. The batteries over voltage or lack of voltage, over wind speed and communication status.
O. untwisting the wire automatically: When the wind generator continue to roll above 3 rounds, at auto stop status it will untwisting the wire automatically itself to keep it ok.
|
Technical Specifications |
|
Wind turbines specifications |
Wind turbine description |
|
Type of generator |
Permanent – magnets-3phase AC |
|
Model |
30KW |
50KW |
|
Blade diameter |
12m |
18m |
|
Blades material |
Fiber glass(FRP) |
Fiber glass(FRP) |
|
Rated Rotated speed |
100(r/m) |
60 (r/m) |
|
Rated wind speed |
10m /s |
10m /s |
|
swept area m² |
113.04 m² |
254.34 m² |
|
Rated output power |
30000w |
50000w |
|
Max power |
35000w |
55000w |
|
Output Voltage : DC |
DC380V 50HZ/60HZ 120A |
DC380V 50HZ/60HZ 120A |
|
Startup wind speed : 3m/s |
3m /s |
3m /s |
|
Work wind speed: 3-25m/s |
3-20(m/s) |
3-20(m/s) |
|
Security wind speed |
40m /s |
40m /s |
|
temperature |
-40 -60 |
-40 -60 |
|
Rate-limiting mode |
Brake intelligent control |
Brake intelligent control |
|
Tower type |
free stand tower high18M |
free stand tower high18M |
|
Total weight(kg) |
6203KG |
7800KG |
We specialize in this field for several years, with the strength of wind turbines, with good quality and pretty competitive price. SHANDONG JIALI NEW ENERGY Co., Ltd founded in 1994, specialized in manufacturing wind turbines, the main products are 200W, 300W, 600W, 1KW, 2KW, 3KW, 5KW, 10KW, 20KW, 30KW, 50KW and 100KW wind turbines and small solar panels, wind solar hybrid systems. Products are exported to the United States, Germany, Britain, France, Pakistan, Indonesia, Mongolia, has a customers high praise.
