Product Description
Features
* Faceplate show working status and fault type
* Over voltage under voltage automatic return to work after normal
* Manage charge and discharge electricity with many kinds and capability of accumulator.
* With three stage charges for battery choice
* Protect Inverter overload, under voltage, over voltage, over temperature, short circuit.
* High conversion rate, high instantaneous power and low no-load wastage
* Small size, high efficiency, quiet operation
Model

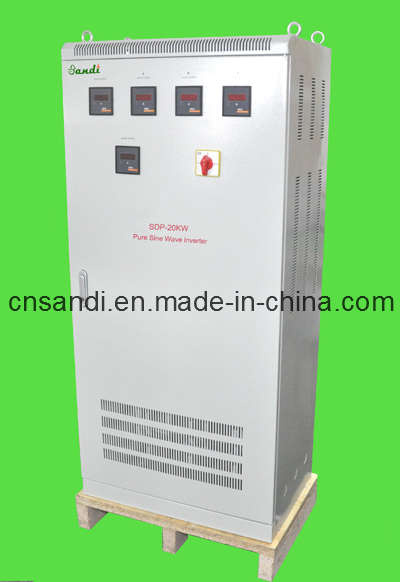

SDP- 20KW
Rated power
200000W
Batteryvoltage
192V, (220V, 240V)
Maximum discharge current
80A
Output current
90A
Charge current
10% according to battery capacity
Charge function
Charger inside(discharge time 2hours, can adjust)
Instant maximum power
120% technical data, 10sec
Output voltage
220V AC ± 3%
Frequency
50Hz± 0.05Hz
No-load power
0.8ADC
Waveform distortion (THD)
≤ 5%(Linear load)
Inverter efficiency
≥ 85%
Work environmental temperature
-10C~60C
Work environmental elevation
≤ 1000m
Yueqing Sandi Electric Co., Ltd specialized in the new energy source and electrical source scientific research, development, manufacture and service had surpasses for 10 years of electrical source field; Which recognized by widely customers according to entirely varieties, high quality and service first. At present, the researched products by our company basically contain the best product at home and abroad, which delegated the top level of electrical source manufacture all over the world. The main products are: PV Grid-Connected Inverter, Solar Inverter, PV Solar Pumping Inverter, Water Pumping Inverter, Grid Tie Inverter, On Grid Inverter, Solar pumping inverter, Wind Turbine Controller, Solar Charge Controller, Pure Sine Wave Inverter, Off-Grid Inverter, power Inverter. The products of company are widely applied in fire fighting, construction, industry, new energy source, civilian use, finance, business tax, electric power, medical treatment, aviation, automatically control system of war industry and national heavy engineering project.
SANDI Electric Company insist on technology as forerunner, keep long-term, good research cooperation with all universities; Fetch in and absorb international advanced technology, built strictly quality control system.
We will take the work objective of "unremitting exploration, endeavor and innovation, honesty and dedication, perfect and practicality" and quality guideline of "criterion management, intensive manufacture, quality first, service with all hearts". Seek excellence, value innovation!
We will ceaselessly struggle and create refulgence with you together.
