| Prod Model: |

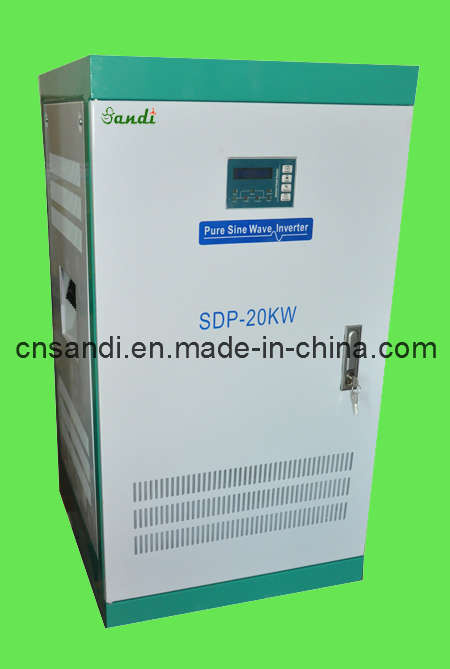

SDP-20KW |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
LCD |
Product Description
Technical Features
* Using the fifth efficient IPM power module from Mitsubishi
* High conversion efficiency, Max. Efficiency≥ 92%
* Perfect protection and warning functions
* Low Frequency Transformer, which ensures that inverter has high efficiency and low no-load loss.
* Pure sine wave output, has higher efficiency and higher capability of driving load.
* LCD display, Small size, high efficiency, easy installation.
* European CE, ISO9001 Certificate and Australian CEC listed.
|
Model |
SDP-20KW |
SDP-25KW |
|
Isolation |
Low Frequency Transformer |
|
DC Input |
Input rated voltage (VDC) |
220V |
240V |
240V |
300V |
|
Input rated current (A) |
90.9A |
83.3A |
104A |
83.3A |
|
AC Output |
Rated AC output power |
20KW |
25KW |
|
AC output waveform |
Pure sine wave |
|
Phases |
Single-Phase |
Three-Phase |
Three-Phase |
|
Output rated voltage |
220VAC ± 3% |
380VAC± 3% |
380VAC± 3% |
|
Output Frequency |
50Hz/60Hz± 0.05Hz |
|
Output rated current (A) |
90.9A |
52.6A |
65.8A |
|
Structure |
Charging function |
Charger outside (optional) |
|
Power Factor (PF) |
0.8 |
|
Overload Ability |
150%, 10s |
|
Inverter efficiency (80% resistive load) |
92% |
|
Waveform distortion rate (THD) |
< 3% (Linear load) |
|
Crest Factor (CF) |
3: 1 |
|
Electrical insulation properties |
1500Vac, 1 Minute |
|
Ambient temperature |
-15° C~+55° C |
|
Using environment humidity |
0~90%, No condensation |
|
Protection |
Input under voltage, overvoltage, over temperature, over-current, short circuit, etc. |
Yueqing Sandi Electric Co., Ltd specialized in the new energy source and electrical source scientific research, development, manufacture and service had surpasses for 10 years of electrical source field; Which recognized by widely customers according to entirely varieties, high quality and service first. At present, the researched products by our company basically contain the best product at home and abroad, which delegated the top level of electrical source manufacture all over the world. The main products are: PV Grid-Connected Inverter, Solar Inverter, PV Solar Pumping Inverter, Water Pumping Inverter, Grid Tie Inverter, On Grid Inverter, Solar pumping inverter, Wind Turbine Controller, Solar Charge Controller, Pure Sine Wave Inverter, Off-Grid Inverter, power Inverter. The products of company are widely applied in fire fighting, construction, industry, new energy source, civilian use, finance, business tax, electric power, medical treatment, aviation, automatically control system of war industry and national heavy engineering project.
SANDI Electric Company insist on technology as forerunner, keep long-term, good research cooperation with all universities; Fetch in and absorb international advanced technology, built strictly quality control system.
We will take the work objective of "unremitting exploration, endeavor and innovation, honesty and dedication, perfect and practicality" and quality guideline of "criterion management, intensive manufacture, quality first, service with all hearts". Seek excellence, value innovation!
We will ceaselessly struggle and create refulgence with you together.
