Gas Engine:
Jichai 6190 Gas Engine
Rated Voltage:
400V/230V
Rated Frequency:
50/60Hz
Gas Source:
Natural Gas
Product Description

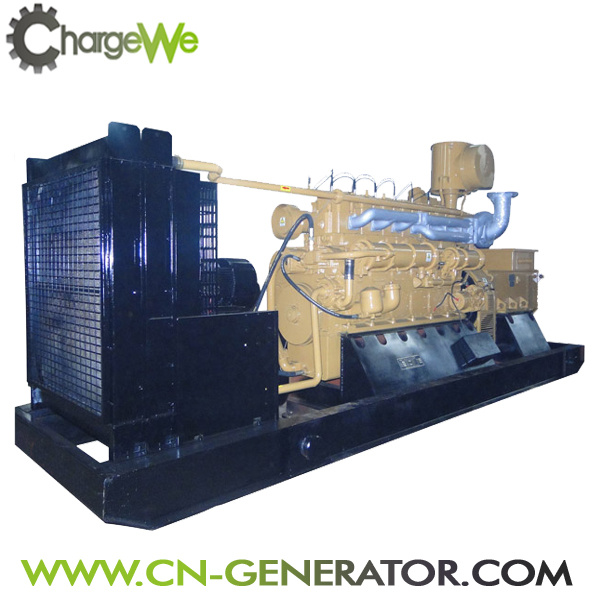

CW-300GFT NATURAL GAS GENERATOR SETS 1.Being manufacaturer of genset for 20years. 2.24hours online service 3.adopt Stamford alternator 4.High quality with low price TECHNICAL PARAMETER OF 300KW NATURAL GAS GENSET
Genset No.
CW-300GFT
Engine No.
6190ZLDT-2
Type
outside
Rated power
300kw
Prime power
240KW
Rated voltage
400V/230V
Phase
3P4W
Rated frequency
50Hz
Rated speed
1000r/min
Rated power factor
0.8
Rated current
540A
Frequency volatility rate
≤0.5%
Voltage regulation range
95-105%
Heat consumption
≤11.5mj/kw.h
Lubricant consumption
≤1.5g/kw.h
Gas Pressure
80-200kpa
Cylinder No.
6
Cylinder diameter
190mm
Stroke
210mm
Compression ratio
8:1
Start mode
24V electric motor
Overhaul
≥25000h
Noise
≤105dB(A)
Intake mode
Supercharging, inter cooled
Sparking mode
Spark plug
Voltage regulation mode
automatic
Speed regulation mode
Electronic speed regulation
Lubrication mode
Pressure and splash
Cooled mode
Circulating water cooled
Exhaust temperature
≤650ºC
Displacement
35.7L
Size
6000×1970×2235

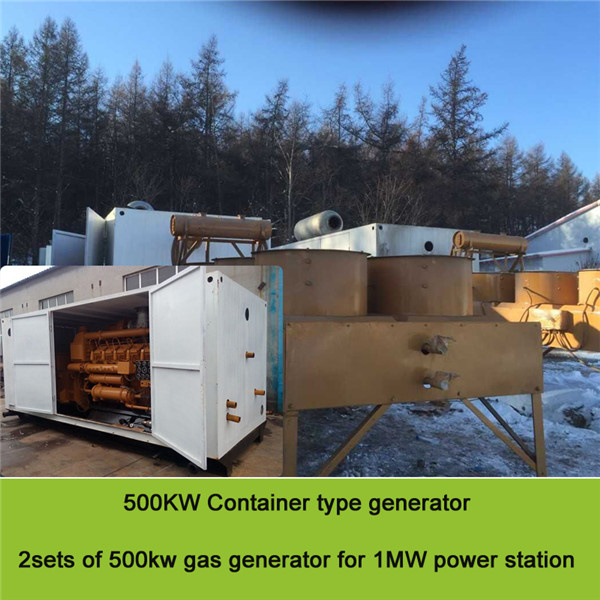

SUCESSFUL CASE FOR GAS GENSET CE/ISO
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
CE/ISO
