Name:
CE Approved 200kw Wood Waste Biomass Generator
Gas Mixing Type:
Outside
Gas Pressure:
3-20kpa
Intake Mode:
Natural Intake
Biomass Generator Cooll Mode:
Circulating Water Cooling
Sparking Mode:
Sparking Plug
Biomass Generator Project:
Power Plant, Power Station
Biomass Generator Type:
Gas Engine and Alternator
Installation Abroad:
Yes
Monitoring System:
Yes, If Needed
Product Description

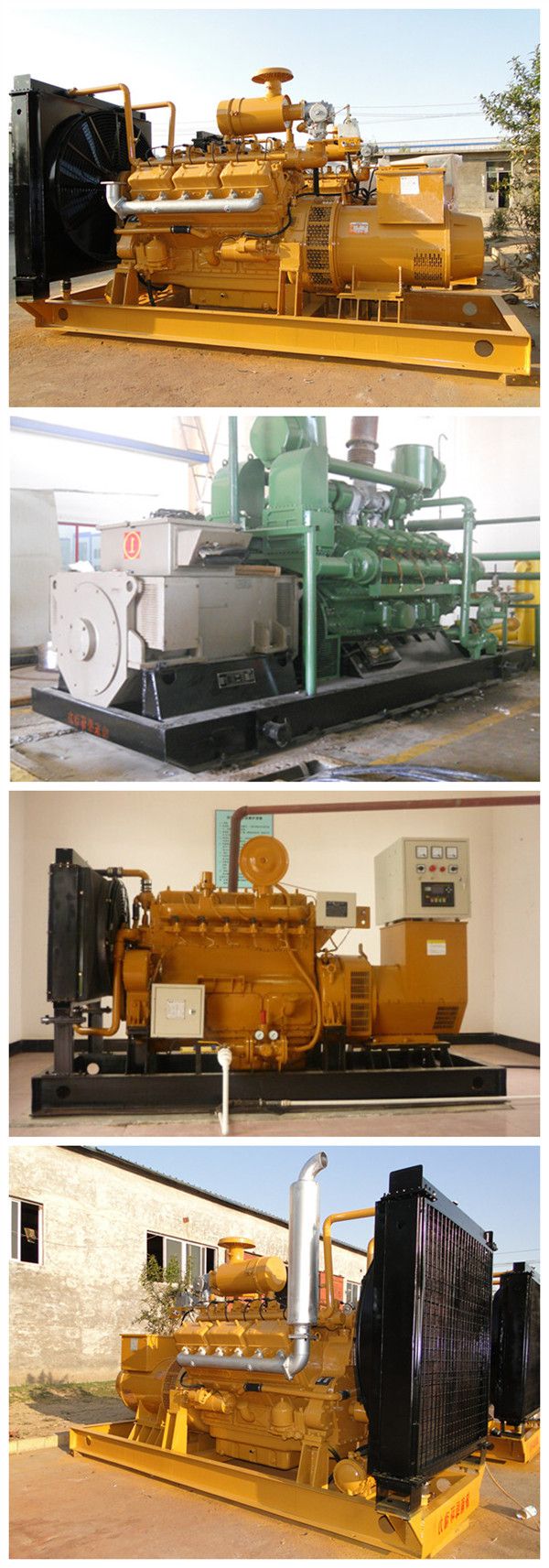

200kw Wood Waste Biomass generator Power Electric biomass Generator set
Biomass generator simple description: This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power. There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power can be connect to national grid, or for daily use and industrial use.
biomass generatorCore feature: Manufacturer supply for over 20 years Export oversea since 2008 Usage of power: self-use, industrial use, sell to city grid Prime power supply range for single set: 5kw - 500kw More power, Eg 2MW available by parallel system Famous component brand form USA,UK,Ger. With CE ISO certificate Warranty: 1 year Life-long after sale service and maintneance service Fuel: Agro and forestry waste, woodchips, sawdust, wood pallets, rice husk, wheat straw, peanuts shell, grass...
Parameter for biomass generator
Model Number
LHBMG10-700
Prime power
5-500KW
Rated Power
10-700 KW
Rated Speed
1000/1500rpm
Rated Frequency
50/60 Hz
Rated Voltage
400/230V
Phase
AC 3 phase 4 wire
Starting system
24V DC electric motor
Cooling method
water cooler
Lubricant method
pressure and splash
Isolation class
H
Protection
IP23
Power Factor
0.8 lagging
Exciting method
Brush less
Voltage Stability
≤±2%
Voltage Transient
≤±10%
Voltage Stable time
≤1 s
Engine Capacity
1.81-71.45L
Cylinder Number
2-16
Cylinder Diameter
100-190mm
Range
115-210mm
Heat consumption
≤9.8mj/kw.h
Oil consumption
≤1.63g/kw.
Biomass generator features: 1.Pure copper water tank for best cooling effect 2.Famous component brand to ensure overall quality 3.Expansion fitting combined with shrinking fitting give high tightness to the system 4.Safety guarantee form electromagnetic valve as well as back-fire relief valve 5.Residual heat CHP recycle system available for choice.
Biomass generator Supply details: Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug. Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current. Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate. Speed regulating system: EGS gas controller of American WOODWARD Company.
Work site requirements on biomass generator: The work site needs to meet following basic requirements: a) Ambient temperature between -40ºC~40ºC; b) Relative humidity less than 95%(35ºC); c) Site elevation not higher than 2500m; d) For outdoor installation, simple rain shelter is required.
Fuel gas requirement on biomass generator: The generator set will be able to output at its full power with fuel gas with the specification as below: 1m distance away from generator set's pressure regulating valve of inlet Temperature of syn gas ≤40ºC; Pressure of syn gas 5~20kPa, velocity of pressure≤ 1kPa/min; H2S≤200mg/Nm3; NH3≤20mg/Nm3; Coke tar content≤20mg/Nm3; Impurities particle size≤5μm; impurity content≤30mg/Nm3; Moisture Content of syn gas ≤40g/Nm3; biomass gas calorific value≥4.2MJ/Nm3.
Purification of biomass gas have a significant impact on machine life and continuous running time!
FAQ for biomass generator: 1.How to choose the right model? A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon. Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour? About 1.2-1.8 kg biomass produce 1kw.h power
3.What is the overhaul? A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance. 4. What is the warranty? A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge. 5. How is the after sale service and maintenance? A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it. 6. What products we offer? Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator. Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.
Our Services 1.Pre-sale service: A.Our engineers are available for onsite prospect before installation free to charge. B. Foundation drawing and detailed Dimension free form us. 2.Sale service: A. Onsite overall guide installation,operation and maintenance training . B. Assistance and instruction of trial running. 3.After-sale service: A. 24 hours online or in person after sale service. B.12 months warranty. We take care of all errors/breakdowns in this period. 4.Spare parts service: A.All spares parts on our gensets supplied by us. B. Free spare parts together with genset when shipping.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!

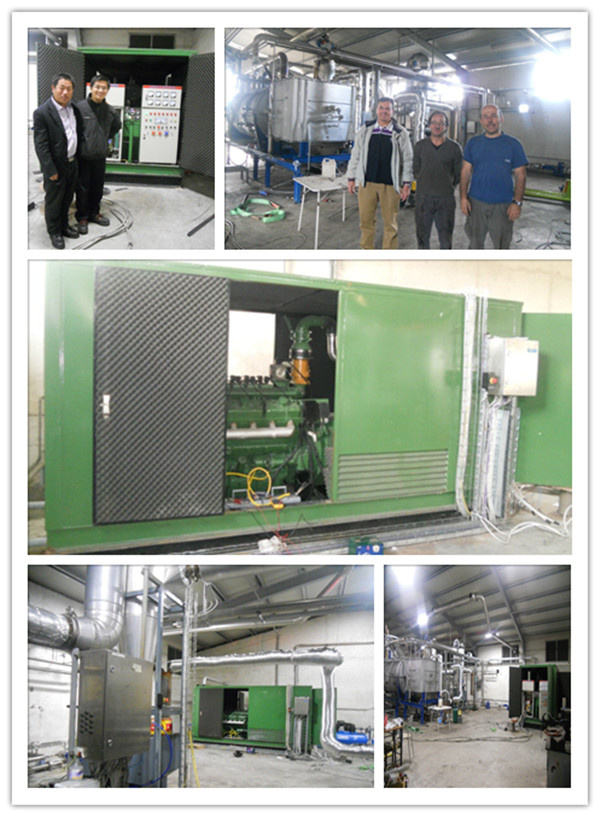

Biomass generator onsite installation
