Frequency:
50Hz/60Hz
Rated Power:
200kw
Rated Voltage:
400V
Rated Current:
400A
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Excitation Mode:
Brushless, Self-Excitation
Product Description

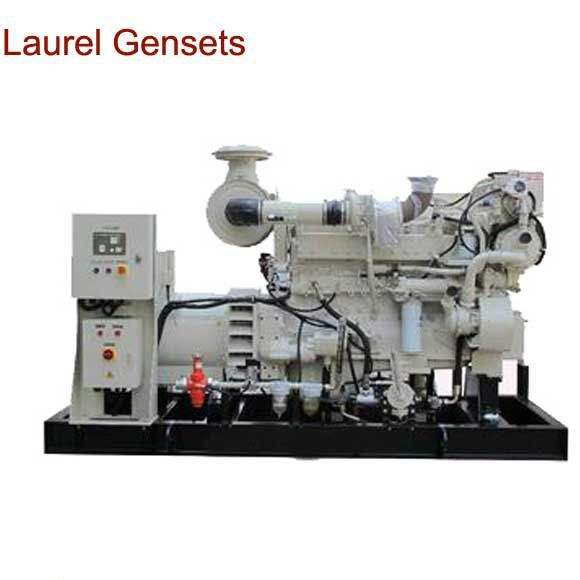

200kw Diesel Power Marine Generator Set
Marine diesel generator Specification
PROJECT:
200kw Marine diesel generator
MODEL:
LFJ200J
QTY.
1 Set
Manufacturer
Ningbo Rongguang Power Machinery Co., Ltd.
Section A
Diesel generator Technical Specification
Generator Set Model:
CCFJ200J
Prime Output Power:
200kw
Overload
10%
Rating Conditions:
In accordance with ISO-3046 reference conditions:
Air Pressure
100 Kpa
Air Temperature
45 ºC
Relative Humidity
60%
Voltage
400 VAC
Frequency
50Hz
Speed
1500 rpm
P.F.
0.8
Governor Type:
Electrical type
Momentary Frequency Variation
10%
Frequency Variation in Steady State
1%
Recovery time
5 s
Momentary Voltage Variation
-15%,+20%
Voltage Regulation in Steady State
1%
Voltage Variation in Steady State
1%
Recovery time
1.5s
Section B
Technical Specification of Engine
Engine brand:
Cummins
Engine Model:
NTA855-DM
Power Rating
220KW @ 1500 BPM
General Configuration:
No. of cycle
4
No. of cylinders
6 nos.
Bore x stroke
140 mm x 152mm
Displacement
14 liters
Configuration
Cylinder In line
Aspiration
Turbocharger , aftercooler
Technical Specification of Alternator
Main Alternator Model
Stamford HCM 434E
Configuration of Main Alternator
Brushless,PMG,Single bearing,Air cooling
Technical Data of Main Alternator
Brand
STAMFORD
Alternator Model
HCM 434E
Capacity
220KW
Voltage
230/400V
Frequency & Speed
50HZ/1500RPM
Power factor
0.8
Voltage Adjust range
≥5%
Voltage Regulation NL-FL
≤±0.5%
Insulation Grade
H
Protection Grade
IP23

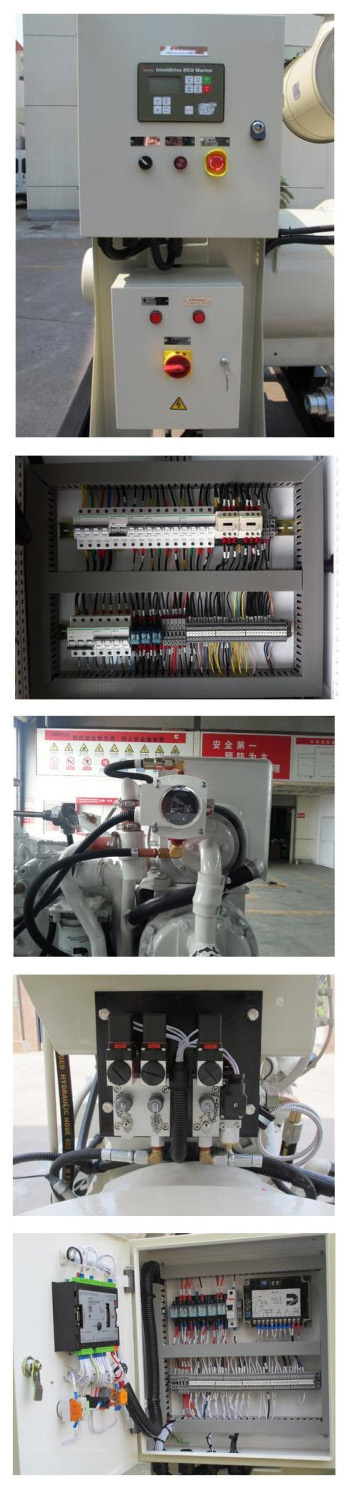

Technical Specification of Control panel
Control Brand
Comap ID DCU
InteliDrive ID-DCU Industrial is a specialized engine controller for Industrial and Marine applications. It controls, monitors and protects the engine in single (Auxiliary) or variable (propulsion) speed operational modes. The controller can communicate with Engine Management System via the CAN serial line using standard J1939 or another (KWP2000) communication protocol. InteliDrive controllers are equipped with a powerful graphic display with icons, symbols and bar-graphs for intuitive operation, which together with high functionality sets new standards in engine controls.
functions
Engine sequencing and control (start/stop, warm-up and cool-down, pre-lubrication etc.)
Engine monitoring and protections (2 or more level analog inputs protection, adjustable delays)
Speed measurement from magnetic pick-up or from ECU
Running hours meter, number of starts counter
Configurable 14 Binary inputs and Outputs and 8 Analog inputs
Setpoints are adjustable via InteliDrive panel or via PC software
3 level password protection
On screen Alarm and ECU Alarm indication
Event and time driven engine history for back tracing
Two or more languages selectable in controller
Our main products: We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
