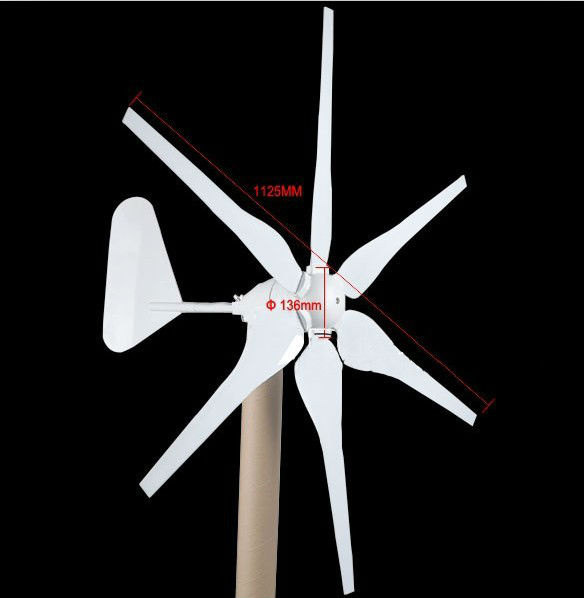

400W Wind Turbine
Model | DECEN-400W |
| Rated power | 400W |
| Max power | 460W |
| Rated DC voltage | DC 12V | DC24V |
| Rated current | 25A. | 12.5A |
| Rated speed | 900r/m |
| Starting wind speed | 2m/s |
| Cut-in wind speed | 3.5m/s |
| Rated wind speed | 12m/s |
| Security wind speed | 45m/s |
| Rotor Diameter | 1140mm |
| Engine | Permanent magnetism synchronization generator |
| N.W. | 5.2kg Small tail | 5.6 Big tail |
| Blade material | Carbon fiber composite materials |
| Over-speed protection | Tip stall protection+ electromagnetic brake |
| Working temperature | -40°C-70°C |
| Life span | 15 years |
| Packing dimension | 615*260*220mm | 590*390*220mm |
| G.W. | 6.2kg | 6.6kg |
Notice: Please inform me the voltage of the wind generator DC12V/DC24V when you place the order.
If not specify, we will send you AC12V wind generator.
MPPT controlller
MPPT technology, maximum power point tracking method to optimize using the wind energy.
Boost circuit designed. User can set this voltage parameter.
12V/24V System Automatic Recognition function.
Be able to use for 200W-600W wind turbine with high compatibility.
Digital design, module structure, stable and reliabl
With perfect protection, such as over-charge, over-discharge, open circuit, anti-reverse connection, overload, short-circuit, PMG over speed brake, over current brake, solar anti-reverse charging on night
Dual-line output, light sensor and timer functions, morning lighting, constantly output 24hours
User can adjust setting of system parameters as voltage protection point, boost voltage, light sensor voltage, timer. and so on
Utility Power switch function (optional)
Monitor software offer to transfer data communication (optional)
General parameters |
| Indication | LCD (8X2 char,green backlight) |
| display language | English |
| static power consumption[mA] | <20 |
| Operating temperature | -30 centigrate ～ +55 centigrate |
| Store temperature | -35centigrate～ +80centigrate |
| Humidity | 0%--98% (NC) |
| Temperature compensation | -35mV/centigrate (25centigrate ref.) |
| Altitude [m] | ≤2000 |
| Production class | IP55 |
| Data comuction(option) | RS232-USB/RS485/GPRS converter |
| Dimension(W*L*H) [mm] | 146*152*78 |
| Net-weight[kg] | 1.2 |
