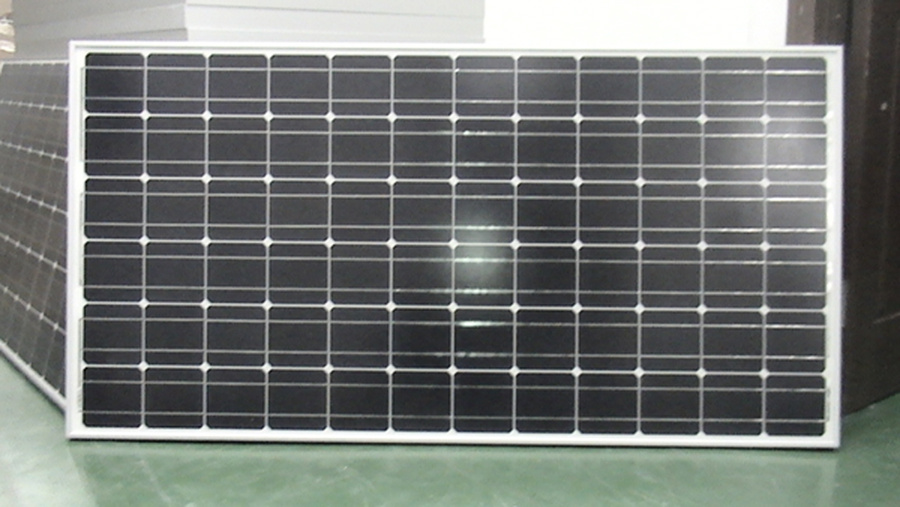

Prod Model: |
SNS(185)m |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
As manufacturer, we can offer good quality and competitive price of photovoltaic module with CE & TUV certificate for you. Welcome to contact Miss Killy Sun for further business!
STC |
SNS(185)m |
Maximum power (Pmax) |
185W |
Voltage at Pmax (Vmpp): |
36.0V |
Current at Pmax (Impp): |
5.14A |
Open circuit voltage (Voc) |
43.9V |
Short circuit current (Isc) |
5.45A |
Module efficiency |
14.49% |
Tolerance |
± 3% |
Maximum system voltage |
1000VDC |
Solar cells |
72 monocrystalline silicon cells
(125x125mm) connected in series |
Dimensions |
1580*808*50mm |
Weight |
15.5kg |
Front cover |
High transmission 3.2mm glass |
Frame |
Silver anodized aluminum |
Junction Box |
Potted (IP 65) |
Output cables |
PV1-F 1*4mm cable with 90cm in length |
Rayspower New Energy Co., Ltd is a Chinese high-tech enterprise. Founded in 2005, Rayspower has been growing fast as a vertically integrated provider of ingot, wafer, solar cells, solar modules, solar power systems and specialized eco-friendly products such as LED and solar street lights,
As a professional EPC contractor, Rayspower provides governments, public institutions and private investors with cutting edge solar power plants. In 2008 Rayspower took part in the 66MW Solar Power Plant in Kunming Shilin in China as EPC contractor for the local Government.
