Frequency:
50Hz
Rated Power:
1500kw
Cylinders:
6
Engine Capacity:
6L
Engine Model:
Googol Qta4320m1 Marine Diesel Engine
Start Type:
24VDC Electrical Motor Starting
Gear Box Torque:
2.476;1
Gear Box Ratio:
7.476:1
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Excitation Mode:
Brushless, Self-Excitation
Product Description

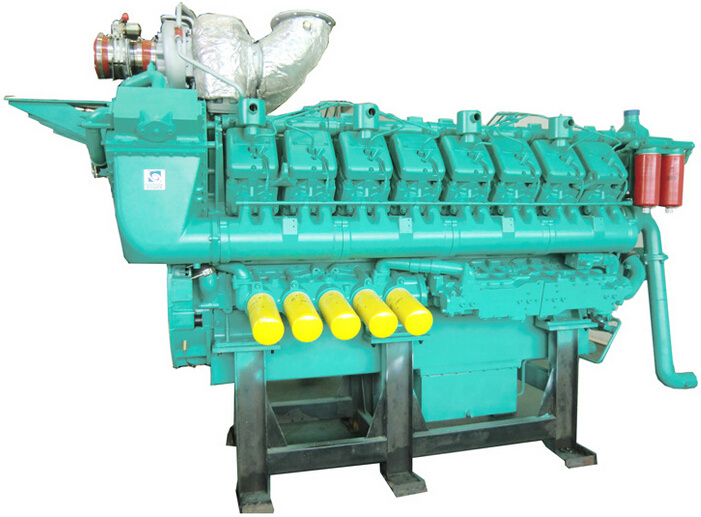

1500kW Googol Diesel Marine Engine With Gear Box
Specifications
1500kW Googol Diesel Marine Engine With Gear Box Water Heat Exchanger Type Googol Marine Engine power range :200-1800kW
Breif Introduction:
Need Buyer to provide Gear box ratio and torque
Engine provide 1000RPM,1200RPM,1500RPM,1800RPm
Certificates: CCS , BV
Engine Power Range: 50kW- 2000kW
Engine Usage :Gear Box, or Generation
Engine Parameters:
Engine Model
QTA4320M1
Continuous Output
1500kW
Rating Speed
1500rpm
Rotation Direction
Counter clockwise (from wheelhouse)
Wheelhouse Connecting size
SAE 00
Wheel Teeth
218
Torque Output @ COP
9550 N.m
Start Type
24VDC Electrical Motor Starting
Cooling Type
Water Heat Exchanger Type
Supply Scope:
Standard engine ....
V16 engine ,Connection Couple,Gear Box
Flywheel ...........
Flywheel for 21" connection
Teeth of flywheel: 218
J = 5.1 kgm²
Adaptor housing.....
SAE 00 housing
Governor ...........
Electronic governor
Cooling system......
Water Heat exchanger
Sea Pump
Exhaust system......
2 Turbocharger with counter flange
Without exhaust silencer
Filter .............
2 air cleaner with restriction indicator
Fuel twin cartridge filter
4 lube oil filter and 2 bypass oil filter
Electrics system.....
Electric starter motor 13kW *2, 24VDC
Starting relay, 24V
Charging alternator 55A, 28VDC
Oil pressure sensor with switch
Coolant temperature sensor with switch
Speed sensor for governor
Lube oil pre-supply pump
Miscellaneous .......
Control Panel
Green painting as standard
1 operation manual
