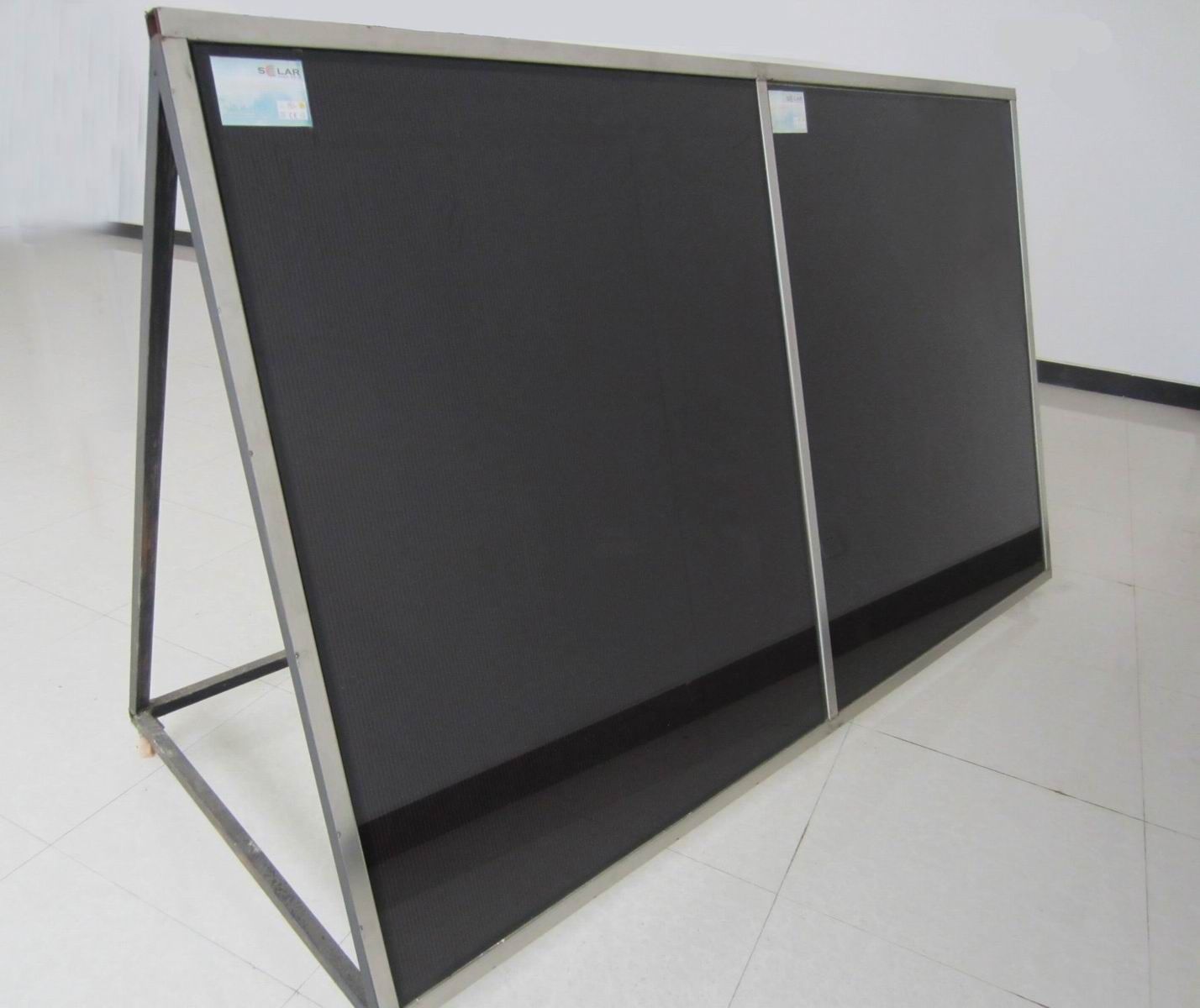

Product Description
TYPICAL STABILIZED ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITION
Maximum output power (Pmpp) 130Wp
Maximum output power voltage(Vmpp) 57V(approx. )
Maximum output power current(Impp) 2.28A(approx. )
Open circuit voltage(Voc) 74V(approx. )
Short circuit current(Isc) 2.66A(approx. )
Maximum system voltage 1000V
MECHANICAL SPECIFICATIONS
Dementions(L× W× H) 1300× 1100× 6.8mm
Weight(only module) 24kg(typical)
Frame technology Frameless
Model a-Si/uc-Si
Module compound Glass/EVA/Glass
Cell type a-Si/uc-Si tandem
Front glass thickness 3.2mm
Encapsulation EVA
Back glass thickness 3.2mm
Junction Box Double terminal J-Box, with Bypass Diode
Connectors MC4 compatible
Gongchuang photovoltaic, founed in 2009, is located at the foot of the Nanyue Mountain, which is one of the five famous moutains in China. It is a pioneer enterprise of silicon-based thin-film solar module, which engaged in the technology development, photovoltaic products manufacturing, the application of on grid and off grid solar power plant and building integrated photovoltaic. It covers an area of over 140, 000 square meters. The initial capacity is 50 MW(megawatt), and the expected capacity is 500 MW in 2015. We are demonstration enterprise of BIPV and "Gold Sun"project in China.
