| Prod Model: |
Lester 11095 A3TG2192 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Alternator: |
12V 110A |
| Rotation: |
Cw |
| Output Tested: |
12.8V |
| Regulator Voltage Set Point: |
14.5 ± 0.3 V |
| Net Weight: |
5.73 Kg |
| Rectifier Structure: |
Six Tubes |
| Current Level: |
9(',≥90A) |
| Bonding Type Of Magnetic Field Winding: |
Inner Bonding |
| Brushless Alternator Type: |
Magnetizing Type |
| Voltage Adjuster Type: |
Electromagnetic Vibratory |
| Voltage: |
12V |
| Head Cover Position: |
Front |
| Brand: |
Mitsubishi |
| Type: |
Alternator |
| Structure: |
Cw |
Product Description
| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 110 |
| Pulley Class | S6 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | MITSUBISHI |
| Brief | MITSUBISHI ECLIPSE 2.4L 2006
MITSUBISHI GALANT 2.4L 2004-06
6-GROOVE PULLEY 71mm OD
ADDL INFO: G-S-L-F PLUG
ADDL INFO: NO MOUNTING HOLES FOR HEAT SHIELD ON REAR (NOT USED HERE)
SEARCH: 487163 (LATER VERSION - HAS MOUNTING HOLES FOR HEAT SHIELD) |

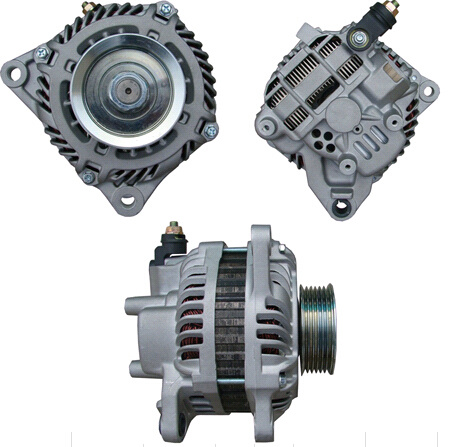

| Detailed | This is a 110A Mitsubishi Alternator for the 2004-06 Mitsubishi Galant (and Others) with the 2.4L Engine. This Unit Has 2 Bottom Mounts a Top Mount at About 3:00 a 6-Groove Conventional Pulley a B+ Terminal Using an Extension Pointing Up at 1:00 and the Plug (4-Pin
G-S-L-F) Out the Side at 2:00. Mitusbishi Motors Supersedes the 11095 487150 to the Later Version (was 11095
Now 11118 - See Below) which Has Protruding Mounts on the SRE Frame for a Heat Shield.
In 9/2009 It was Brought to Our Attention That The Later Version 487163 of the 11095 Actually Has Protruding Mounts on the Rear for a Heat Shield while the Earlier Version 11095 487150 Does Not. while it Appears Either Unit Can Be Used the Heat Shield will Only Attach if the Holes are Present. For That Reason we are Amending That Version487163 of the 11095 and Re-Naming it the 11118. |
MFG# | MFG NAME |
|---|
| AMT0141 | ARROWHEAD |
| A3TG2192 | ARROWHEAD (OEM) |
| 11095 | LESTER |
| 203-474 | PIC |
| 11095 | BBB |
| 11095 | BBB NEW |
| 186-1220 | BECK ARNLEY |
| A-80229 | DIXIE |
| 10792 | EXCEL |
| A3TG2192 | MITSUBISHI |
| A3TG2192AC | MITSUBISHI |
| A3TG2192ZC | MITSUBISHI |
| 1800A076 | MITSUBISHI MOTORS |
| MN183451 | MITSUBISHI MOTORS |
| M183451D | MITSUBISHI REMAN |
| 213-9629 | NAPA POWER PREMIUM PLUS |
| 13-9629 | NAPA POWER SUPREME |
| A3095 | USA INDUSTRIES |
| 90-27-3307 | WILSON |
| 90-27-3307 | WILSON NEW |
| 12620 | WORLDWIDE |
MAKE | TYPE | MODEL | YEAR | ENGINE | UnitType | AEP | LESTER |
|---|
| MITSUBISHI | Auto and Light Truck | ECLIPSE | 2006 | 2.4L | Alternator | AMT0141 | 11095 |
| MITSUBISHI | Auto and Light Truck | GALANT | 2004 | 2.4L | Alternator | AMT0141 | 11095 |
| MITSUBISHI | Auto and Light Truck | GALANT | 2005 | 2.4L | Alternator | AMT0141 | 11095 |
| MITSUBISHI | Auto and Light Truck | GALANT | 2006 | 2.4L | Alternator | AMT0141 | 11095 |
| AEP Number | AEP (OEM) | PART TYPE |
|---|
| BRG0051 | 35-2310E | BEARING |
| BRG0061 | 35-2312E | BEARING |
| BRG0016 | 35-4000E | BEARING |
| AMT7502 | | BRUSH |
| HDW5117 | | NUT |
| | | PLUG CODE |
| AMT6084 | | REGULATOR w/BRUSHES |
| AMT3503 | | SLIP RING |
| SSP0202 | | TEST LEAD |
We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.
Production Equipment:
The armature and stator are produced by automatic equipment.
Inspection equipment:
We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.
Armature, stator, solenoid switch and the starter assembly are all 100% inspected.
Whole set laboratory equipment:
We have whole set laboratory equipment for the starter performance test.
Market share:
We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.
Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.
9. After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------
Over 90% parts produced by our own factory
Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product
Major product family:
Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
Market (%):
North America 60%; Middle East 15%; Europe 15%; Local 10%.
We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.
Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949
